STARTER MOTOR

STARTER CLUTCH FOR YAMAHA TRACER 2024

TRANSMISSION

Item numbers

PRIMARY DRIVEN GEAR COMP.

B7N161500000 B7N161500000

717,42 $

Unit Price

PLATE, THRUST

363161540000 363161540000

12,67 $

Unit Price

BOSS, CLUTCH

B7N163710000 B7N163710000

200,02 $

Unit Price

PLATE, FRICTION

B7N163210000 B7N163210000

18,41 $

Unit Price

PLATE, FRICTION 2

B90163310000 B90163310000

36,52 $

Unit Price

PLATE, CLUTCH 2

5VY163250000

5VY163252000

24,27 $

Unit Price

PLATE, CLUTCH 1

1TD163240000 1TD163240000

13,01 $

Unit Price

PRESSURE PLATE ASS

B7N163500000 B7N163500000

181,82 $

Unit Price

SPRING, COMPRESSIO

B7N161730000 B7N161730000

17,04 $

Unit Price

PLATE, PRESSURE 2

B90163520000 B90163520000

16,68 $

Unit Price

SCREW, SPRING

2CR163370000 2CR163370000

2,22 $

Unit Price

SPRING., CUSHION

1TD163830100 1TD163830100

49,60 $

Unit Price

PLATE, SEAT

1TD163840000 1TD163840000

13,17 $

Unit Price

PLATE, CLUTCH 2

4B1163250000 4B1163250000

25,42 $

Unit Price

PLATE, CLUTCH 2

5VY163250000

5VY163252000

24,27 $

Unit Price

PLATE, CLUTCH 1

BR9163240000

Not available

PLATE, CLUTCH 2

4B1163250000 4B1163250000

25,42 $

Unit Price

PLATE, CLUTCH 2

5VY163250000

5VY163252000

24,27 $

Unit Price

PLATE, CLUTCH 1

BR9163240000

Not available

WASHER, PLATE

902012003000 902012003000

10,87 $

Unit Price

WASHER, CONICAL SPRING

902082000100 902082000100

15,48 $

Unit Price

NUT

901792001000

901792002000

23,21 $

Unit Price

BEARING

933103327700 933103327700

41,97 $

Unit Price

ROD, PUSH 1

B7N163560000 B7N163560000

101,75 $

Unit Price

PUSH LEVER ASSY

1RC163400000

1RC163400100

57,19 $

Unit Price

SPRING, TORSION

905081805100 905081805100

8,87 $

Unit Price

WASHER, PLATE

902011002900 902011002900

2,48 $

Unit Price

CIRCLIP(10W)

990091040000 990091040000

1,64 $

Unit Price

PLATE, THRUST 2

B7N161640000 B7N161640000

20,78 $

Unit Price

PLATE, THRUST 2

2C0161640000 2C0161640000

10,25 $

Unit Price

SPACER 1

1RC161810000 1RC161810000

58,34 $

Unit Price

OIL SEAL (3X3)

931021521200 931021521200

12,69 $

Unit Price

BEARING

933152157000 933152157000

18,01 $

Unit Price

AXLE, PUSH LEVER

5VY163821000 5VY163821000

100,29 $

Unit Price

BEARING

933171109600 933171109600

18,46 $

Unit Price

WASHER(6TA)

929070860000 929070860000

2,10 $

Unit Price

CIRCLIP(6L2)

990010760000

990800760000

1,77 $

Unit Price

GASKET, CRANKCASE COVER 2

B7N154610000

B7N154610100

27,27 $

Unit Price

CLUTCH PLATE KIT

B7NW001G0000

B7NW001G0100

410,52 $

Unit Price

FRICTION PLATE KIT

B7NW001M0000 B7NW001M0000

92,29 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

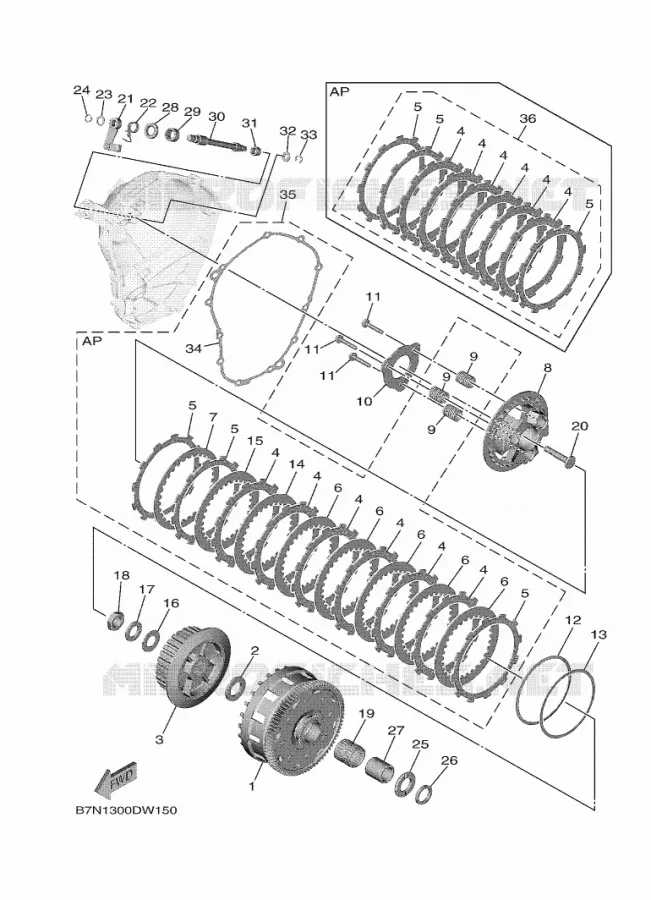

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha TRACER 9 of 2024. Let us know if you have any questions.
