ELECTRICAL 1

ELECTRICAL 2 FOR YAMAHA TDM 2004

COMMUTATEUR

5RT825666000 5RT825666000

Not available

SCREW, PAN HEAD

985070502000

985170502000

1,04 $

Unit Price

NUT, S-L FLANGE

956070520000 956070520000

4,71 $

Unit Price

CONTACTEUR DE POINT-MORT

5PS825400000 5PS825400000

Not available

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW

901490601800

901490603000

1,06 $

Unit Price

BRIDE

904620801700 904620801700

Not available

THERMOSENSOR ASSY

5PS857900000 5PS857900000

93,25 $

Unit Price

GASKET(2GH)

904301220200 904301220200

6,46 $

Unit Price

SENSOR, PRESSURE

5PS823800000 5PS823800000

320,16 $

Unit Price

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

SENSOR, CAM POSITION

5PS858961000 5PS858961000

Not available

HEXAGON SOCKET HEAD BOLT

901100612400

901100623900

1,95 $

Unit Price

CLAMP (1E6)

904650802800 904650802800

5,54 $

Unit Price

SONDE DE VITESSE

5PS837550000 5PS837550000

Not available

BOLT, SOCKET

913170601000 913170601000

4,24 $

Unit Price

SONDE

5PS8592A1000 5PS8592A1000

Not available

CLAMP

904651009800 904651009800

1,78 $

Unit Price

JAUGE A HUILE CPLT

5PS857200000 5PS857200000

Not available

BOLT, SOCKET

913170601200 913170601200

5,10 $

Unit Price

LANCEUR RELAIS (ENS.)

3EL819401000 3EL819401000

Not available

FUSE (10A)

42X821510000 42X821510000

3,60 $

Unit Price

BOLT, SMALL FLANGE

950270600800 950270600800

2,10 $

Unit Price

BAND

1UA825910000 1UA825910000

3,11 $

Unit Price

RELAY ASSY (5PX-00)

5PX819500000 5PX819500000

131,70 $

Unit Price

RELAY ASSY (5EA-02)

5EA819502000 5EA819502000

39,30 $

Unit Price

FLASHER RELAY ASSY

3XV833502100

Not available

HORN

5PS833710000 5PS833710000

99,48 $

Unit Price

BOLT, BUTTON HEAD

920170601000 920170601000

4,00 $

Unit Price

SUPPORT

5PS2317E0000 5PS2317E0000

Not available

BOLT, FLANGE(4MY)

950270601000 950270601000

2,10 $

Unit Price

SUPPORT, AVERTISSEUR

5PS233781000 5PS233781000

Not available

BOLT, FLANGE

958270601000

958170601000

2,29 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

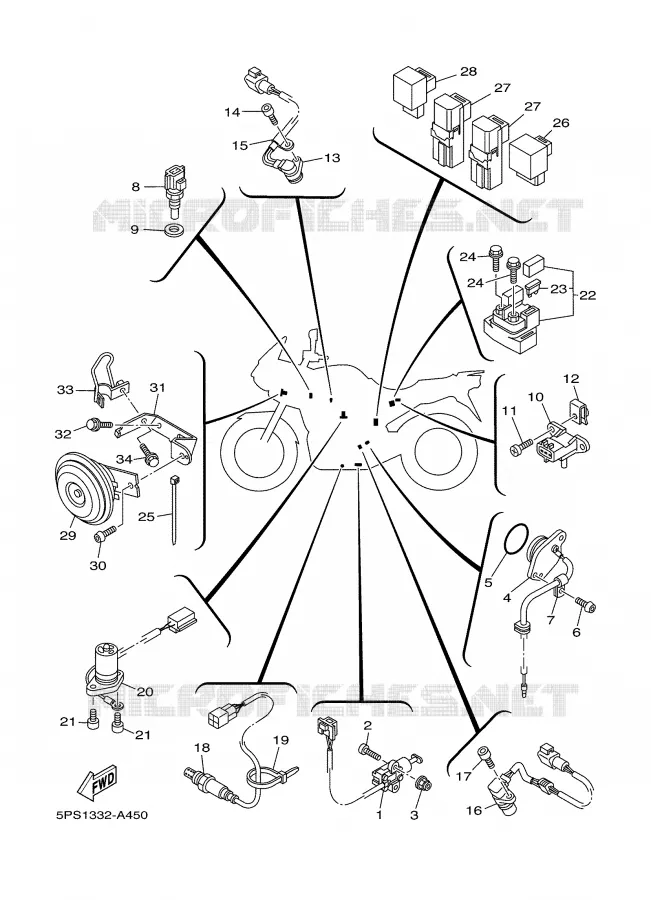

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha TDM900S of 2004. Let us know if you have any questions.
