TRANSMISSION

CROSS SHAFT FOR YAMAHA DIVERSION 1996

GEAR SHIFT SELECTOR DRUM / FORK

RESERVOIR A HUILE

4KM217510000 4KM217510000

Not available

BRG, R-B 6207 72MM 272G KY

933062070900 933062070900

97,36 $

Unit Price

NUT(2NX)

901791836000

901791855200

21,31 $

Unit Price

CAM, DRIVE

31A175260100 31A175260100

96,38 $

Unit Price

CAME, D ENTRAINEMENT

4KM175270000 4KM175270000

Not available

SPRING, COMPRESSION (31A)

905017076200 905017076200

37,40 $

Unit Price

HOLDER

4H7175240000 4H7175240000

53,88 $

Unit Price

WASHER, THRUST

3H5175290000 3H5175290000

3,72 $

Unit Price

WASHER, LOCK(2NX)

902152326500 902152326500

5,49 $

Unit Price

SHIM, THRUST

4H7175370020 4H7175370020

5,56 $

Unit Price

THRUST SHIM

4H7175370040 4H7175370040

5,58 $

Unit Price

CALE, BUTEE

4H7175373000 4H7175373000

Not available

CIRCLIP(1FN)

934404708100

934404514400

4,71 $

Unit Price

BEARING(1FF)

933060051900 933060051900

35,93 $

Unit Price

HOUSING COMP.

31AW17520000 31AW17520000

143,74 $

Unit Price

O-RING (2H7)

932107136000 932107136000

16,40 $

Unit Price

OIL SEAL (4H7)

931013509700 931013509700

24,98 $

Unit Price

4KM017556000

4KM017556000 4KM017556000

Not available

WASHER, PLATE (1J7)

902011463300 902011463300

7,77 $

Unit Price

NUT, SELF-LOCKING (1J7)

901851407000 901851407000

14,67 $

Unit Price

SHIM, PINION

3JB175311000 3JB175311000

9,27 $

Unit Price

SHIM, PINION

3JB175312000 3JB175312000

9,27 $

Unit Price

SHIM, PINION

3JB175314000 3JB175314000

9,27 $

Unit Price

BOLT, FLANGE(6TA)

958270803000

958170803000

4,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

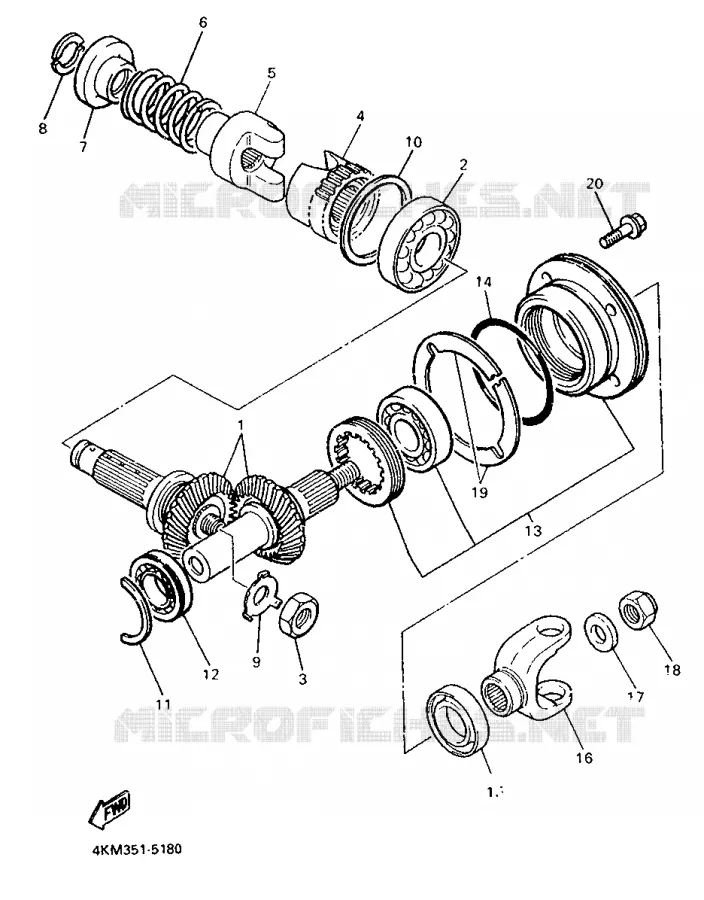

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CROSS SHAFT of your Yamaha XJS 900 DIVERSION of 1996. Let us know if you have any questions.
