ELECTRICAL 1

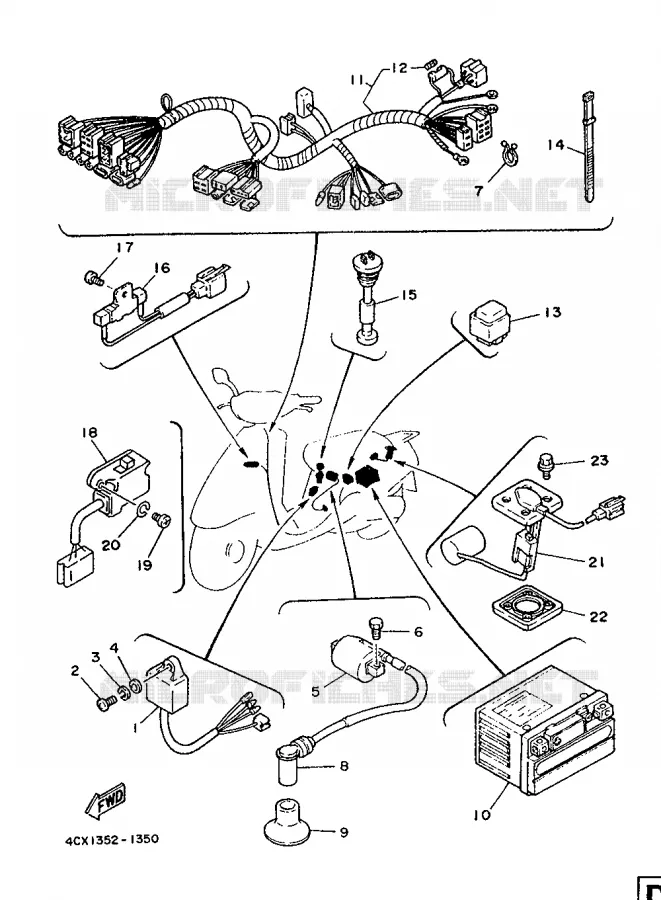

ELECTRICAL 2 FOR YAMAHA JOG 1991

CDI UNIT ASSY

3KJ855400100

3KJ855401000

69,00 $

Unit Price

SCREW PAN HEAD

985010602000

985800602000

5,09 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

WASHER(6TA)

929010660000

929070660000

1,83 $

Unit Price

IGNITION COIL ASSY

3KJ823100000

3KJ823101300

60,54 $

Unit Price

BOLT, HEXAGON DEEP RECESS

973130601600

97D950601600

1,96 $

Unit Price

CLAMP

904651814700 904651814700

4,03 $

Unit Price

PLUG CAP ASSY

3WGH23700000

SPCLB05F0000

27,24 $

Unit Price

CAP SEAL

3WGH23720000 3WGH23720000

Not available

BATTERIE COMPLET

3WGH21000000 3WGH21000000

Not available

FAISCEAU DE FILS COMPLET

4CXH25900000 4CXH25900000

Not available

FUSE

27V821510000 27V821510000

2,09 $

Unit Price

RELAY ASSY (29U-93)

27V819400200

29U819509300

49,08 $

Unit Price

COLLIER, CORDON DE COMMUTATEUR

5T8H39361000 5T8H39361000

Not available

OIL LEVEL GAUGE ASSY

53L857200000

53L857200200

34,81 $

Unit Price

VIEUX

2JA857300000 2JA857300000

Not available

SCREW PAN HEAD

985010601000

985800601000

4,27 $

Unit Price

COMMUTATEUR COMPLET

4CX818600100 4CX818600100

Not available

SCREW, PAN HEAD

985010301600

985070301600

1,68 $

Unit Price

WASHER, SPRING

929900310000 929900310000

3,47 $

Unit Price

SENDER UNIT ASSY, FUEL METER

3KJ857520000 3KJ857520000

133,30 $

Unit Price

JOINT, DE PERCEPTION

3WGH57530000 3WGH57530000

Not available

BOLT, WITH WASHER

901190507100 901190507100

3,58 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha CY90 of 1991. Let us know if you have any questions.
