HEADLIGHT

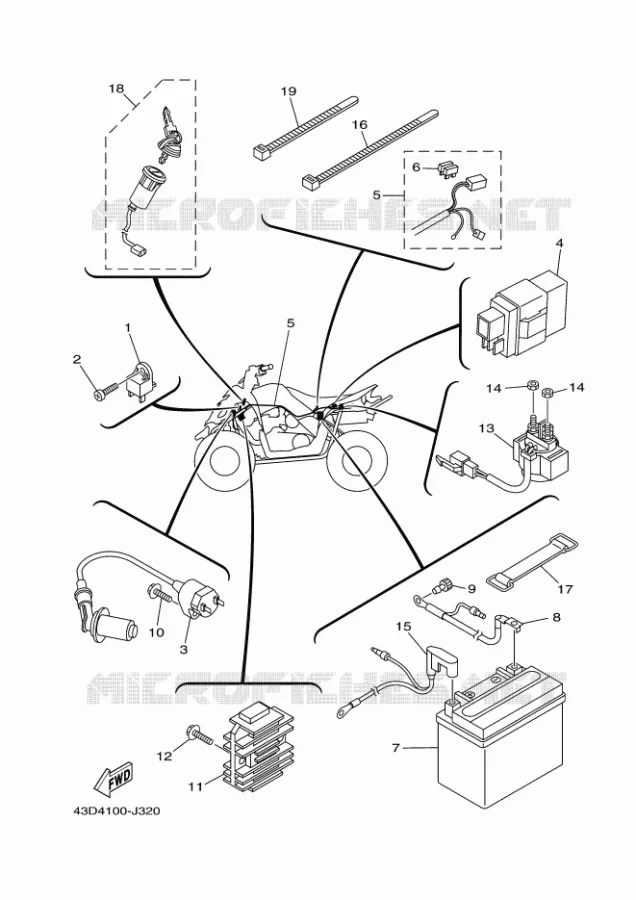

ELECTRICAL 1 FOR YAMAHA RAPTOR 2011

ELECTRICAL 2

Item numbers

THERMO SWITCH ASSY

43DH25600000 43DH25600000

53,46 $

Unit Price

SCREW

43DF44730000 43DF44730000

0,76 $

Unit Price

IGNITION COIL ASSY

43DH23100000 43DH23100000

106,31 $

Unit Price

C.D.I. UNIT ASSY

43DH55400000 43DH55400000

380,52 $

Unit Price

WIRE HARNESS ASSY

43DH25900000 43DH25900000

334,99 $

Unit Price

FUSE (10A)

43DH21510000

42X821510000

3,60 $

Unit Price

YTX5LBS YUASA BATTERY - SA

43DH21100000

YTX5LBS00000

101,86 $

Unit Price

WIRE, MINUS LEAD

43DH21160100 43DH21160100

45,91 $

Unit Price

SCREW, 1

43DF29690000 43DF29690000

5,55 $

Unit Price

BOLT, WITH WASHER

43DF15310000

975170652000

1,89 $

Unit Price

RECTIFIER & REGULATOR ASSY

43DH19600000 43DH19600000

242,17 $

Unit Price

BOLT, FLANGE

958220601600

958170601600

3,30 $

Unit Price

STARTER RELAY ASSY

43DH19400000 43DH19400000

96,54 $

Unit Price

NUT(6TA)

953070660000

953170660000

2,10 $

Unit Price

WIRE, PLUS LEAD

43DH21150100 43DH21150100

55,67 $

Unit Price

CLAMP, HOSE

43DF25910000 43DF25910000

2,70 $

Unit Price

BAND 1

43DF43980000 43DF43980000

12,71 $

Unit Price

MAIN SWITCH ASSY

43DH25100100

43DH25100000

90,21 $

Unit Price

CLAMP

43DF34660000 43DF34660000

1,92 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha YFM90R of 2011. Let us know if you have any questions.
