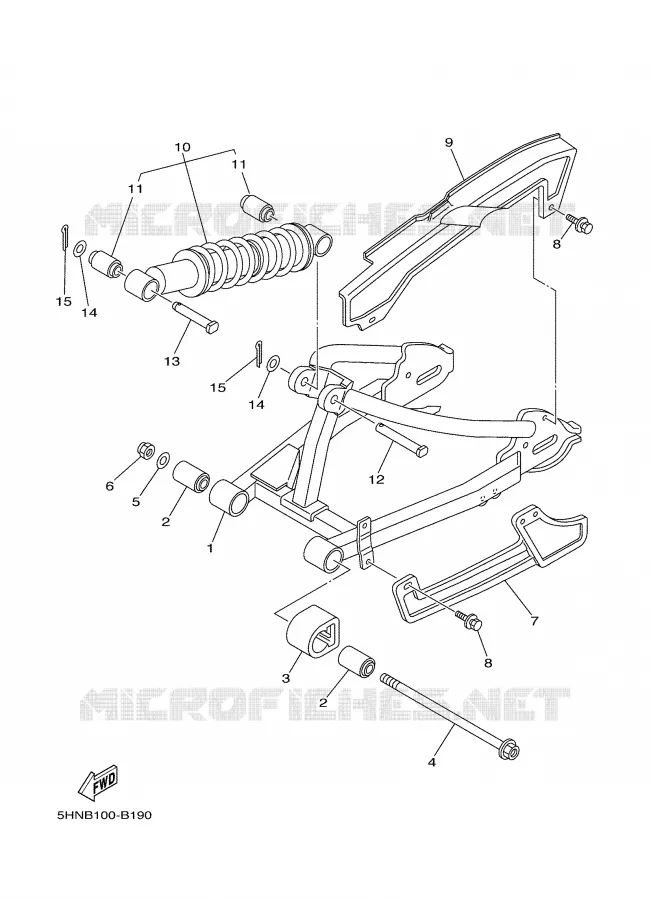

SWINGARM / SHOCK ABSORBER FOR YAMAHA TTRE 2004

STEERING

REAR ARM

5HN221100000 5HN221100000

Not available

BUSHING, REAR ARM

102221230000 102221230000

26,71 $

Unit Price

SEAL, GUARD

5HN221510000 5HN221510000

14,20 $

Unit Price

BOLT (583 FRAME)

901051006300 901051006300

14,78 $

Unit Price

WASHER PLATE (3L6)

902010875900 902010875900

3,85 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

SUPPORT, CHAIN

21W221990000 21W221990000

30,00 $

Unit Price

BOLT, WITH WASHER

901190500900 901190500900

0,43 $

Unit Price

CASE, CHAIN

21W223110000 21W223110000

35,76 $

Unit Price

AMORTISSEUR, ARRIERE

5HN222100000 5HN222100000

Not available

SHOCK ABSORBER ASS

5HN222101000

5HN222101100

284,51 $

Unit Price

AMORTISSEUR, ARRIERE

5HN222102000 5HN222102000

Not available

BUSHING

3M7222160000 3M7222160000

17,45 $

Unit Price

PIN, CLEVIS (3R0)

902401007200 902401007200

7,81 $

Unit Price

PIN, CLEVIS (3R0)

902401006900 902401006900

7,83 $

Unit Price

WASHER, PLATE(56J)

90201106H500 90201106H500

3,94 $

Unit Price

PIN, COTTER

914012502000

914902502000

3,93 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM / SHOCK ABSORBER of your Yamaha TTR90E of 2004. Let us know if you have any questions.
