CYLINDER HEAD

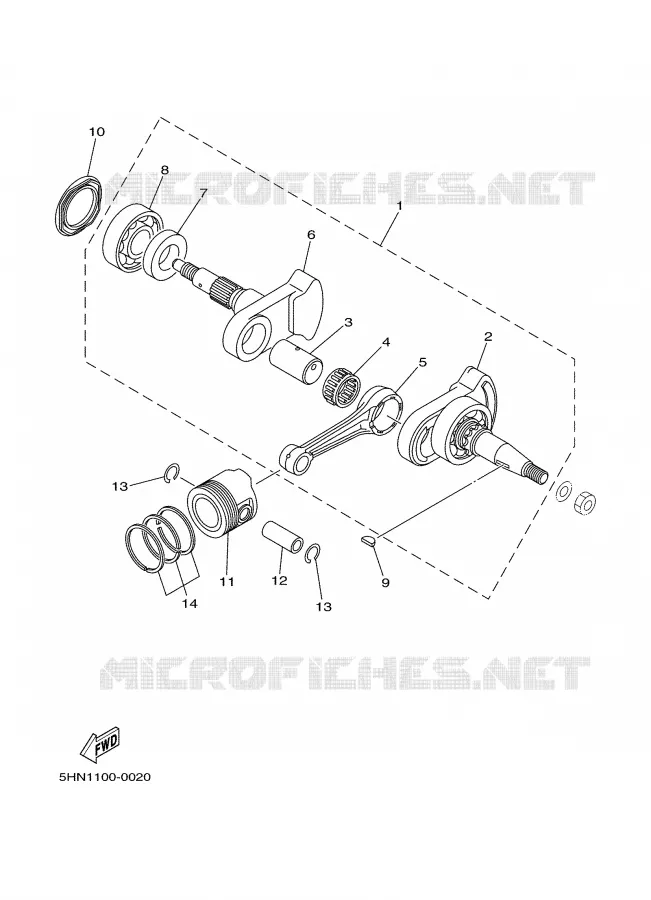

CRANKSHAFT / PISTON FOR YAMAHA TTR 2004

VALVE

CRANKSHAFT ASSY

5HN114000100 5HN114000100

497,11 $

Unit Price

.MASSOLOTTE DE VILEBREQUIN 1 MASSOLOTTE DE VILEBREQUIN 1

5HNW11410000 5HNW11410000

Not available

PIN, CRANK 1

4GL116811000 4GL116811000

83,82 $

Unit Price

BEARING, NEEDLE(4CW)

93310326M900 93310326M900

43,53 $

Unit Price

CONNECTING ROD

4GL116510100 4GL116510100

67,70 $

Unit Price

.MASSOLOTTE DE VILEBREQUIN 2 MASSOLOTTE DE VILEBREQUIN 2

5HN114220000 5HN114220000

Not available

.ENTRETOISE ENTRETOISE

5DV114450000 5DV114450000

Not available

.ROULEMENT ROULEMENT

933062059000 933062059000

Not available

KEY WOODRUFF 146115450000

902800301700 902800301700

6,72 $

Unit Price

SPACER

4GL114450000 4GL114450000

47,19 $

Unit Price

PISTON (STD)

4GL116310100 4GL116310100

94,40 $

Unit Price

PISTON (0.50MM O-S)

4GL116360100 4GL116360100

94,40 $

Unit Price

PISTON (1.00MM O-S)

4GL116380100 4GL116380100

94,40 $

Unit Price

PIN, PISTON

22K116330100 22K116330100

29,50 $

Unit Price

CIRCLIP (22F)

934501408800 934501408800

1,68 $

Unit Price

PISTON RING SET (STD)

22K116100100

55X116100000

78,88 $

Unit Price

PISTON RING SET (2ND O-S)

22K116102100

55X116102000

78,88 $

Unit Price

PISTON RING SET (4TH O-S)

22K116104100

55X116104000

82,58 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha TTR90S of 2004. Let us know if you have any questions.
