INTAKE

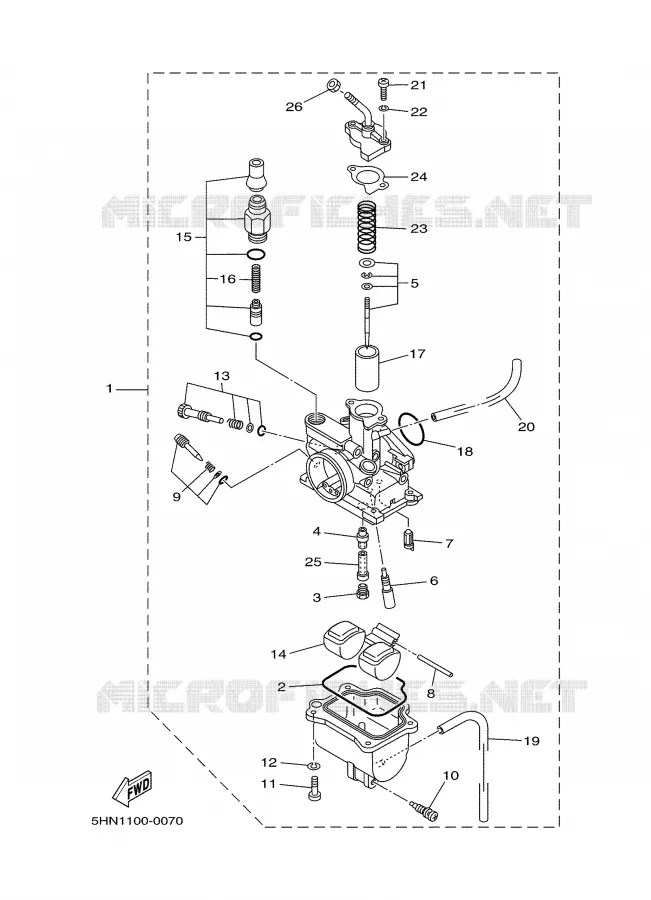

CARBURETOR FOR YAMAHA TTR 2004

EXHAUST

CARBURETOR ASSY 1

5HN141010100 5HN141010100

639,49 $

Unit Price

SEAL

4GL142390000 4GL142390000

18,30 $

Unit Price

JET, MA1N #90

18A141431800 18A141431800

9,58 $

Unit Price

NOZZLE, MAIN

5HN141411300 5HN141411300

41,67 $

Unit Price

.JEU D AIGUILLES JEU D AIGUILLES

5HN1490J0000 5HN1490J0000

Not available

JET, PILOT (# 12.5)

3KD141421200 3KD141421200

23,62 $

Unit Price

NEEDLE ASSY

7LG141501100 7LG141501100

48,13 $

Unit Price

PIN, FLOAT

353141860000 353141860000

3,84 $

Unit Price

AIR SCREW SET

4GL141040000 4GL141040000

11,92 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

SCREW, PAN HEAD(N15)

985070401400 985070401400

1,92 $

Unit Price

WASHER(6TA)

929070410000 929070410000

2,10 $

Unit Price

THROTTLE SCREW SET

4GL141030000 4GL141030000

23,44 $

Unit Price

FLOAT

5HN149850000 5HN149850000

70,59 $

Unit Price

STARTER SET

5HN1410A0000 5HN1410A0000

70,71 $

Unit Price

SPRING, PLUNGER

5HN141350000 5HN141350000

0,23 $

Unit Price

VALVE, THROTTLE 1

5HN141122500 5HN141122500

67,61 $

Unit Price

O-RING

241141470000 241141470000

12,58 $

Unit Price

PIPE 1

4GL143480000 4GL143480000

12,71 $

Unit Price

.DURITE DURITE

5HN149870000 5HN149870000

Not available

SCREW, PAN HEAD

985070401200

985170401200

1,81 $

Unit Price

WASHER(6TA)

929070410000 929070410000

2,10 $

Unit Price

SPRING

4NM142750000 4NM142750000

12,94 $

Unit Price

GASKET

4NM141980000 4NM141980000

10,66 $

Unit Price

PIPE

5HN141480000 5HN141480000

38,75 $

Unit Price

NUT, CABLE ADJUSTING

522141610000 522141610000

11,76 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha TTR90S of 2004. Let us know if you have any questions.
