SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA TTR 2002

FAISCEAU DE FILS COMPLET

5HN825900000 5HN825900000

Not available

4KJ823101000

3KJ823101300

60,54 $

Unit Price

BOLT, FLANGE(6U1)

950270602000 950270602000

2,46 $

Unit Price

PLUG CAP ASSY

4BP823700000

4BP823700100

41,76 $

Unit Price

CDI UNIT ASSY

4GL855402000 4GL855402000

Not available

HEATER ASSY

3BT837900000

5FU837902000

48,09 $

Unit Price

TERMINAL 1

3BT821030000

5FU821030000

2,54 $

Unit Price

WASHER, PLATE

90201085R500

902010801600

3,51 $

Unit Price

CLAMP

5Y9124910000 5Y9124910000

2,07 $

Unit Price

THERMO-CONTACT COMPLET

4TR825600000 4TR825600000

RECTIFIER & REGULATOR ASSY

4CK819600100 4CK819600100

222,19 $

Unit Price

BOLT, FLANGE(4MY)

950270601200 950270601200

2,10 $

Unit Price

CLAMP(4HM)

904641519200 904641519200

5,60 $

Unit Price

CLAMP(4GY)

904640518800 904640518800

3,18 $

Unit Price

REFLECTOR, FRONT 1

2EK851110000 2EK851110000

23,86 $

Unit Price

REFLECTOR, REAR 1

449851310200 449851310200

31,16 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

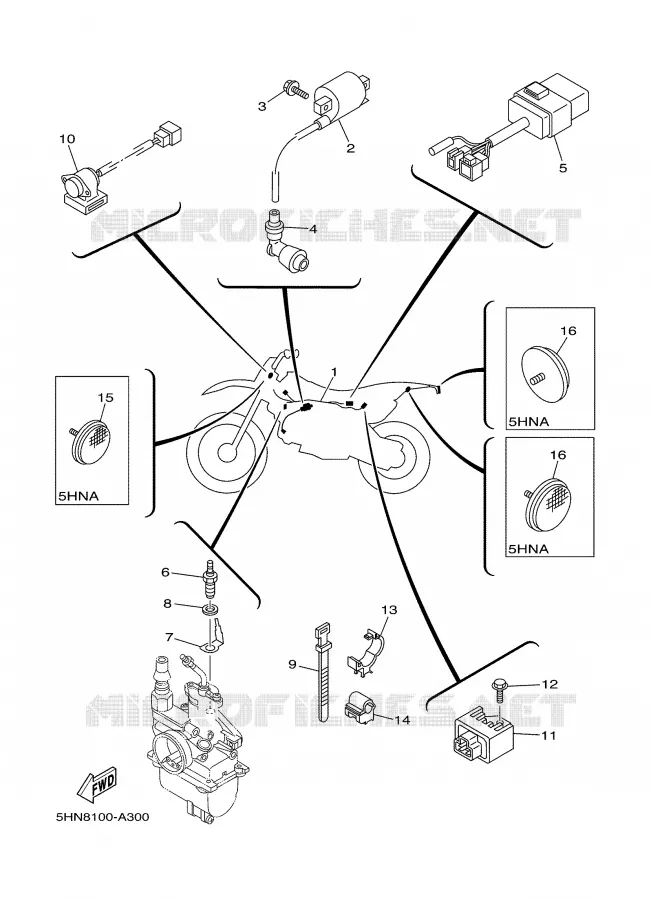

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha TTR90 of 2002. Let us know if you have any questions.
