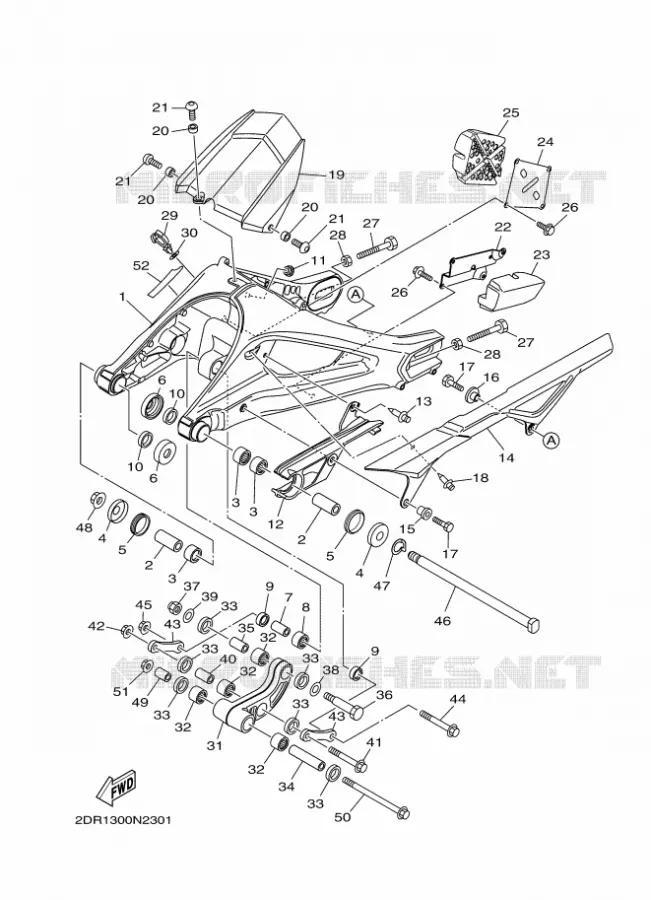

SWINGARM FOR YAMAHA MT09 ABS 2014

REAR SHOCK ABSORBER

Item numbers

REAR ARM COMP.

1RC221100000

1RC221100100

1 687,05 $

Unit Price

BUSH, SOLID(38V)

903801613400 903801613400

17,95 $

Unit Price

BEARING, CYLINDRICAL(2VM)

933172226200 933172226200

32,29 $

Unit Price

COVER

30X2219X0000 30X2219X0000

18,58 $

Unit Price

OIL SEAL (35X41.5X8-483)

931083500400 931083500400

17,66 $

Unit Price

COVER, THRUST 1

20S221280000 20S221280000

21,07 $

Unit Price

COLLAR(1WG)

90387102R400 90387102R400

15,10 $

Unit Price

BEARING

933153175800 933153175800

40,67 $

Unit Price

OIL SEAL

931091707100 931091707100

5,30 $

Unit Price

OIL SEAL

931062200200 931062200200

14,29 $

Unit Price

GROMMET 122154860000

904801201200 904801201200

3,63 $

Unit Price

SEAL, GUARD

1RC221510000 1RC221510000

28,62 $

Unit Price

RIVET

902690700700 902690700700

3,73 $

Unit Price

CASE, CHAIN

1RC223110000 1RC223110000

31,04 $

Unit Price

C0LLAR (3JB1)

90387062X000 90387062X000

19,97 $

Unit Price

COLLAR

903870606600 903870606600

3,89 $

Unit Price

BOLT, HEXAGON DEEP RECESS

970020601600

97D950601600

1,96 $

Unit Price

RIVET

902690700700 902690700700

3,73 $

Unit Price

REAR FENDER COMP.

1RC216500000

1RC216500100

68,45 $

Unit Price

COLLAR

903870602200

903870610600

3,05 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110615100 901110615100

2,56 $

Unit Price

BRACKET 1

1RC2221A0000 1RC2221A0000

24,25 $

Unit Price

DAMPER 1

1RC2214F0000 1RC2214F0000

41,17 $

Unit Price

BRACKET 2

1RC2221B0000 1RC2221B0000

19,53 $

Unit Price

DAMPER 2

1RC2214G0000 1RC2214G0000

49,53 $

Unit Price

BOLT, FLANGE

901050612600

950220601000

1,04 $

Unit Price

BOLT

901010801300 901010801300

2,03 $

Unit Price

NUT

953020860000 953020860000

3,75 $

Unit Price

CLAMP

904641800200 904641800200

11,46 $

Unit Price

WASHER, PLATE(J42)

902020716400 902020716400

1,67 $

Unit Price

ARM, RELAY

1RC2217A0000 1RC2217A0000

209,46 $

Unit Price

BEARING

933153175800 933153175800

40,67 $

Unit Price

OIL SEAL

931091707100 931091707100

5,30 $

Unit Price

SPACER

3GB234480000 3GB234480000

29,71 $

Unit Price

COLLAR(3TJ)

90387127W000 90387127W000

18,74 $

Unit Price

BOLT

901091002700 901091002700

12,94 $

Unit Price

NUT, U

956121010000

956171010000

9,95 $

Unit Price

WASHER, PLATE

902011301500 902011301500

5,18 $

Unit Price

WASHER, PLATE

902011003500 902011003500

3,16 $

Unit Price

COLLAR(1WG)

90387102R400 90387102R400

15,10 $

Unit Price

BOLT, FLANGE

901051021000 901051021000

8,58 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

ARM 1

1RC2217M0000

1RC2217M0100

16,28 $

Unit Price

BOLT, FLANGE

901051021000 901051021000

8,58 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

SHAFT, PIVOT

46X221410000 46X221410000

43,42 $

Unit Price

WASHER, SPRING LOWER

1RC221590000 1RC221590000

2,78 $

Unit Price

NUT, U FLANGE

956021420000 956021420000

15,17 $

Unit Price

COLLAR

903871010600 903871010600

9,37 $

Unit Price

BOLT, FLANGE

901051017400 901051017400

13,46 $

Unit Price

NUT, S-L FLANGE

956021020000 956021020000

5,20 $

Unit Price

SEAL 1

1RC223580000 1RC223580000

13,99 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
