REAR BRAKE MASTER CYLINDER

COVER 1 FOR YAMAHA TRX 1998

IGNITION

PARE-BRISE

4NX283811000 4NX283811000

Not available

MOLE 4

47X283460000

36Y283480000

21,34 $

Unit Price

SCREW, ROUND HEAD(1UX)

901500502300 901500502300

5,09 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

SCREW(3HX)

901490527300 901490527300

6,46 $

Unit Price

WASHER, SPECIAL

4FM282150000 4FM282150000

8,54 $

Unit Price

NUT, FLANGE(3GM)

957070550000 957070550000

2,29 $

Unit Price

CORPS SUPERIEUR AVANT 1

4NX2835G00P4 4NX2835G00P4

Not available

CORPS, SUPERIEUR AVANT 1

4NXY283G600X 4NXY283G600X

Not available

EMBLEM, YAMAHA

992310010000

992410010000

4,10 $

Unit Price

EMBLEM, YAMAHA

992370010000

992470010000

15,86 $

Unit Price

.EMBLEME EMBLEME

4UN283151000 4UN283151000

Not available

.JEU D EMBLEMES, DE CARENAGE JEU D EMBLEMES, DE CARENAGE

4UN283900000 4UN283900000

Not available

SUPPORT 1

4NX283560000 4NX283560000

Not available

BOLT, FLANGE(4FM)

901050842800

958140803500

5,09 $

Unit Price

GROMET (3X3)

904801422900 904801422900

4,02 $

Unit Price

NUT (1AE)

901790650000 901790650000

6,80 $

Unit Price

CLAMP(8AF)

904644822600 904644822600

0,68 $

Unit Price

SUPPORT 5

4NX2836H0000 4NX2836H0000

Not available

SUPPORT 6

4NX2836J0000 4NX2836J0000

Not available

SCREW, ROUND HEAD(55K)

901500602100 901500602100

6,72 $

Unit Price

WASHER, PLATE(J38)

902020617000 902020617000

3,60 $

Unit Price

BOLT, WASHER BASED(JA9)

950270601600

901050669600

7,86 $

Unit Price

GUIDE, WIRE

1A8215180000 1A8215180000

8,54 $

Unit Price

REAR VIEW MIRROR ASSY(LEFT)

4FM262801000 4FM262801000

140,49 $

Unit Price

REAR VIEW MIRROR ASSY(RIGHT)

4FM262901000 4FM262901000

140,49 $

Unit Price

PLATE, MIRROR FITTING 2

4FM262990000 4FM262990000

9,75 $

Unit Price

PLATE, MIRROR FITTING 1

3CV262980000 3CV262980000

4,01 $

Unit Price

SCREW, FLAT

987070602500 987070602500

2,10 $

Unit Price

NUT, CROWN(1FN)

901760605500 901760605500

3,94 $

Unit Price

COUVERCLE

4NX283650000 4NX283650000

Not available

SCREW, TRUSS TAP.

977075001200 977075001200

1,95 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

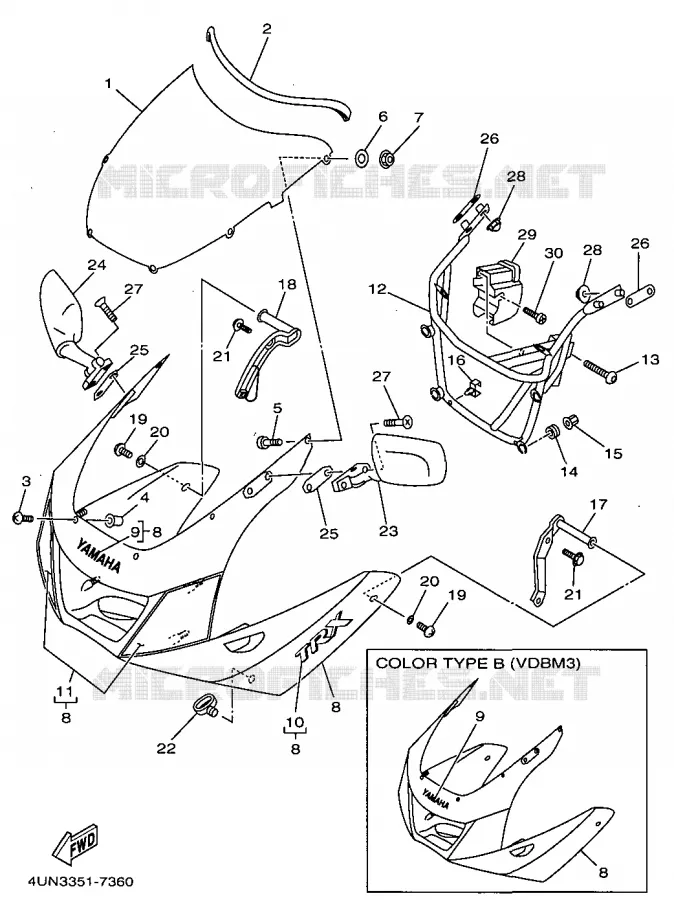

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the COVER 1 of your Yamaha TRX850 of 1998. Let us know if you have any questions.
