HEADLIGHT

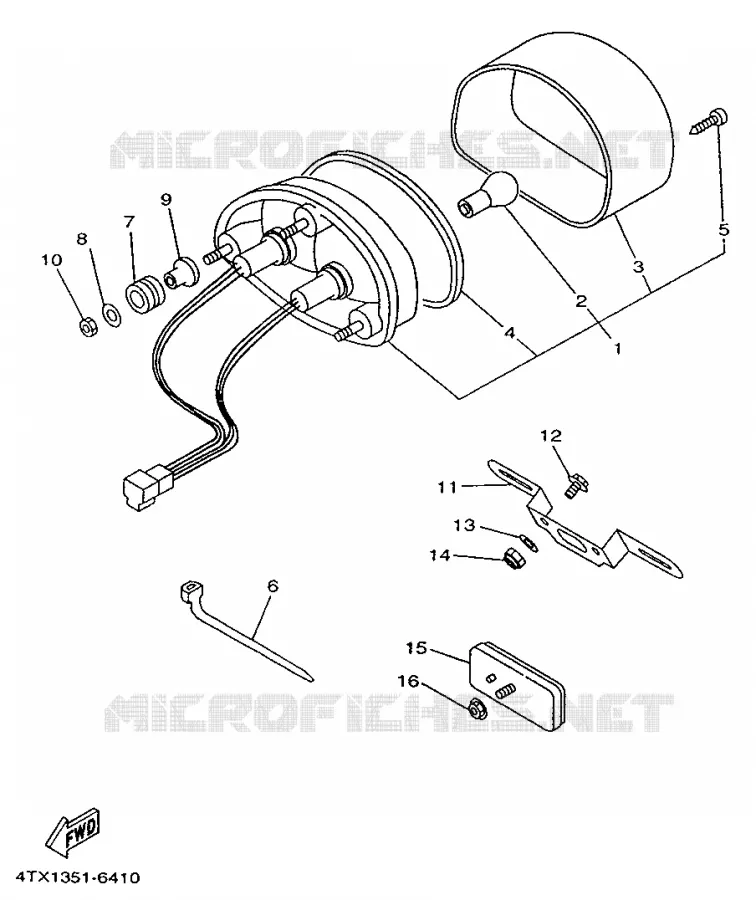

TAIL LIGHT FOR YAMAHA TDM 1998

SWITCH / LEVER

FEU ARRIERE

4TX847100000 4TX847100000

Not available

BULB

31L847140000

1A2847145000

11,81 $

Unit Price

.CABOCHON, DE FEU ARRIERE CABOCHON, DE FEU ARRIERE

4TX847330000 4TX847330000

Not available

GASKET, TAIL LENS

4TX847230000 4TX847230000

6,71 $

Unit Price

SCREW, PAN TAP.2

977064062000

977074052000

2,19 $

Unit Price

CLAMP

904641307700 904641307700

5,61 $

Unit Price

GROMMET (4L0)

904801827600 904801827600

4,03 $

Unit Price

WASHER, PLATE(36Y)

902010607100

90201063J200

5,66 $

Unit Price

COLLAR (6G1)

90387077M300

9038706M5200

10,38 $

Unit Price

NUT(6TA)

953070660000

953170660000

2,10 $

Unit Price

SUPPORT, PLAQUE D IMMATRIC

4TX847510000 4TX847510000

Not available

BOLT, FLANGE(4DU)

950270601400 950270601400

0,89 $

Unit Price

WASHER, PLATE 8221447500

902010605700 902010605700

5,60 $

Unit Price

NUT, SELF-LOCKING

956070610000

956170610000

8,11 $

Unit Price

REAR REFLECTOR ASSY

3G1851300100

4KM851300000

24,40 $

Unit Price

REFLECTOR

3Y6851300200 3Y6851300200

31,86 $

Unit Price

REAR REFLECTOR ASSY

4KM851300000 4KM851300000

24,40 $

Unit Price

NUT, FLANGE(3GM)

957070550000 957070550000

2,29 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Yamaha TDM850 of 1998. Let us know if you have any questions.
