ELECTRICAL 1

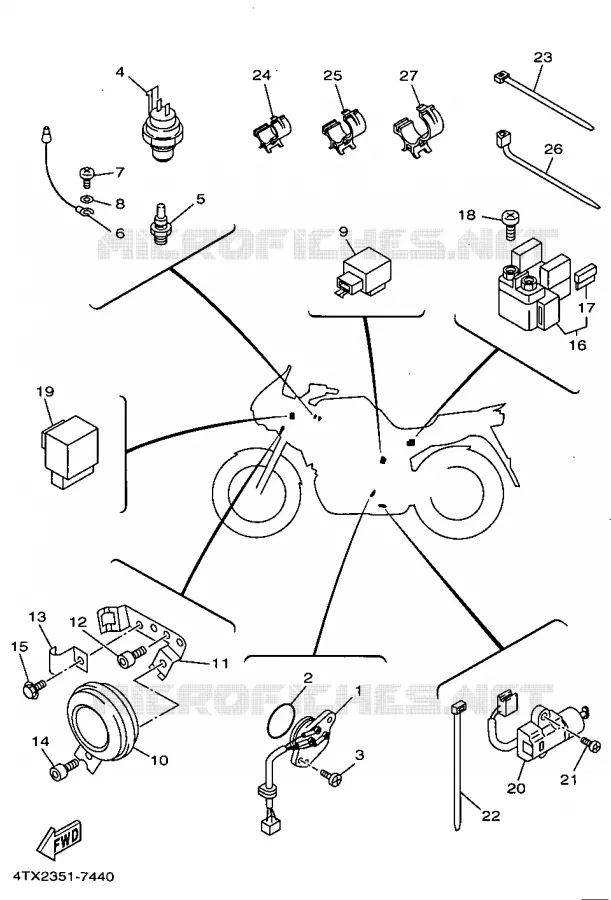

ELECTRICAL 2 FOR YAMAHA TDM 1998

CONTACTEUR DE POINT-MORT

4TX825400000 4TX825400000

Not available

O-RING (371)

932102919600 932102919600

10,15 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

THERMO SWITCH ASSY

3LN825600100 3LN825600100

109,11 $

Unit Price

THERMO UNIT

11H835910000 11H835910000

53,01 $

Unit Price

EARTH WIRE LEAD 1

4NX833540000 4NX833540000

2,53 $

Unit Price

SCREW, PAN HEAD(JG1)

985070400800 985070400800

1,90 $

Unit Price

WASHER(JF2)

929070460000 929070460000

1,83 $

Unit Price

FLASHER RELAY ASSY

3GM833500100

3GM833500300

185,85 $

Unit Price

HORN

4KM833710000

2KG833710000

84,52 $

Unit Price

SUPPORT, AVERTISSEUR

4TX233770000 4TX233770000

Not available

BOLT, SOCKET

913170601400 913170601400

4,22 $

Unit Price

SUPPORT, AVERTISSEUR

4TX233780000 4TX233780000

Not available

BOLT, SOCKET

913170601000 913170601000

4,24 $

Unit Price

BOLT, FLANGE

958070601000

958170601000

2,29 $

Unit Price

STARTER RELAY ASSY (RC19-003)

4DN819400000

4DN819401200

92,89 $

Unit Price

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

SCREW, PAN

985070600800

985170600800

2,10 $

Unit Price

RELAIS COMPLET

4EP819500000 4EP819500000

Not available

SWITCH, SIDE STAND

3LD825665000

Not available

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

BAND, SWITCH CORD

25G839360100 25G839360100

6,05 $

Unit Price

CLAMP(4KM)

904642521700 904642521700

5,40 $

Unit Price

CLAMP(4GY)

904641019000 904641019000

7,93 $

Unit Price

CLAMP(4HM)

904641519200 904641519200

5,60 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

CLAMP(4GY)

904642019100 904642019100

4,42 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha TDM850 of 1998. Let us know if you have any questions.
