Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

SWITCH / LEVER

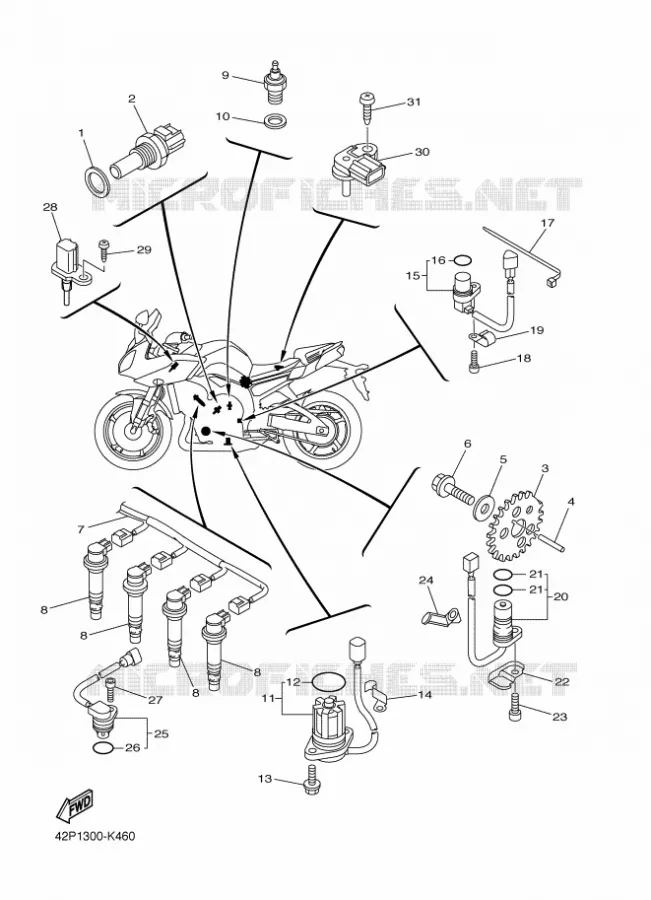

ELECTRICAL 1 FOR YAMAHA FAZER 2012

ELECTRICAL 2

Item numbers

WASHER, PLATE

902011279000 902011279000

7,23 $

Unit Price

THERMOSENSOR ASSY

8CC857900100 8CC857900100

112,90 $

Unit Price

ROTOR

2D1816730000 2D1816730000

52,54 $

Unit Price

KEY, STRAIGHT

902820300100 902820300100

10,27 $

Unit Price

WASHER, PLATE

902011003900 902011003900

7,96 $

Unit Price

BOLT (30X)

901051029000 901051029000

9,35 $

Unit Price

WIRE, SUB LEAD

39P823090000 39P823090000

177,28 $

Unit Price

IGNITION COIL ASSY

39P823101000 39P823101000

182,88 $

Unit Price

NEUTRAL SWITCH ASSY

3GB825400100 3GB825400100

27,00 $

Unit Price

GASKET (1KH, 1.0T)

904301014800 904301014800

6,09 $

Unit Price

OIL LEVEL GAUGE ASSY

5VY857200000 5VY857200000

131,90 $

Unit Price

O-RING

5VY8A8E00000 5VY8A8E00000

14,18 $

Unit Price

BOLT, FLANGE

950220601600 950220601600

1,22 $

Unit Price

CLAMP

904650805300 904650805300

4,90 $

Unit Price

SENSOR, SPEED

4XV837550300

4XV837550400

218,39 $

Unit Price

O-RING

4D9811680000 4D9811680000

7,27 $

Unit Price

CLAMP

904645100100 904645100100

22,72 $

Unit Price

BOLT, SOCKET

901100616100

913170601600

3,37 $

Unit Price

CLAMP

904620805700 904620805700

11,71 $

Unit Price

PICK-UP ASSY

23P816700000

23P816700100

202,62 $

Unit Price

O-RING 1

5VY8A8E10000 5VY8A8E10000

3,42 $

Unit Price

PLATE

23P155890000 23P155890000

12,10 $

Unit Price

BOLT, SOCKET

901100616100

913170601600

3,37 $

Unit Price

CLAMP

904650805400 904650805400

6,74 $

Unit Price

SENSOR, CAM POSITION

5VY858960000

5VY858960100

212,75 $

Unit Price

O-RING

4D9811680000 4D9811680000

7,27 $

Unit Price

BOLT

901100617500

913120602000

3,84 $

Unit Price

SENSOR, AIR TEMPERATURE

5YU858860000 5YU858860000

44,91 $

Unit Price

SCREW, PANHEAD TAPPING

977025052000 977025052000

3,78 $

Unit Price

SENSOR, PRESSURE

5S7823800000 5S7823800000

230,37 $

Unit Price

SCREW, TAPPING(JA3)

977026052000

977016052000

0,65 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Choose your Yamaha 800 FAZER 2012 model
