REAR SHOCK ABSORBER

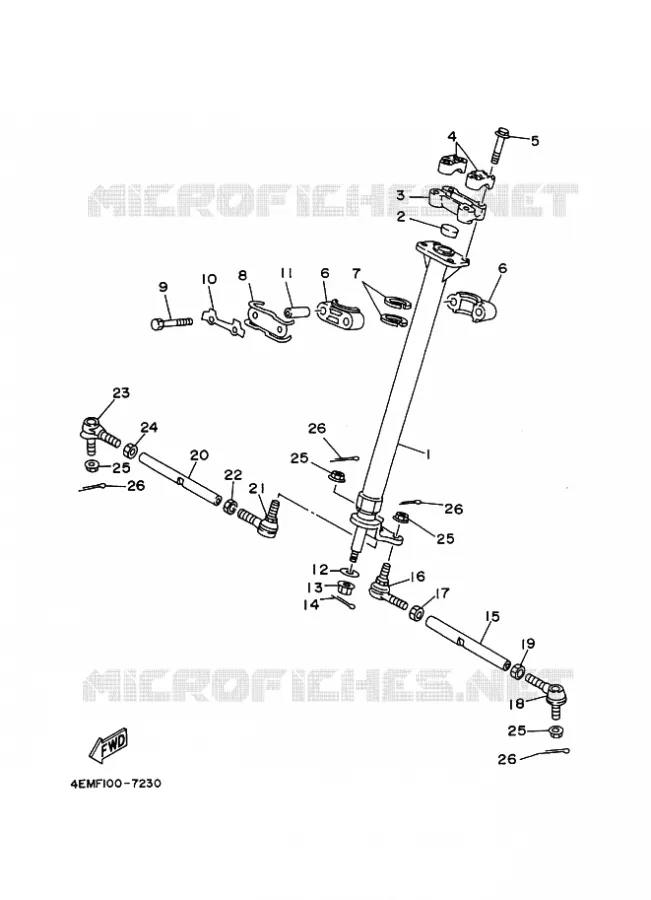

STEERING FOR YAMAHA RAPTOR 2002

FOURCHE / WHEEL

Item numbers

COLUMN, STEERING 2

4EM238130100

4EM238132000

237,75 $

Unit Price

PLUG, TAPER(2HR)

903362805300 903362805300

6,09 $

Unit Price

HANDLE, HOLDER

8G5238140000

164234410198

27,85 $

Unit Price

HOLDER, HANDLE UPPER

8K1238140000

1E6234410000

27,38 $

Unit Price

BOLT, FLANGE

958270805500

958170805500

4,30 $

Unit Price

PLANE BEARING, STEERING

1UY238120000 1UY238120000

25,72 $

Unit Price

OIL SEAL(1UY)

931123101100 931123101100

8,84 $

Unit Price

BRACKET, STEERING

3GB238680000 3GB238680000

Not available

BOLT, HEXAGON

970270806000

970170806000

6,83 $

Unit Price

WASHER, LOCK 1

1UY238940100 1UY238940100

3,29 $

Unit Price

COLLAR(85G)

90387090R000

90387106T400

16,16 $

Unit Price

WASHER, PLATE (3L6)

902011077400 902011077400

7,77 $

Unit Price

NUT, SELF-LOCKING (8U7)

901851011500 901851011500

3,73 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

BARRE, ACCOUPLEMENT

3GB238310000 3GB238310000

Not available

JOINT, UNIVERSAL 1

55X238410100 55X238410100

100,57 $

Unit Price

NUT (3WP1)

953071070000

953171070000

4,24 $

Unit Price

JOINT, UNIVERSAL 2

52H238450100 52H238450100

102,97 $

Unit Price

NUT, HEXAGON (8A5)

901701018600 901701018600

7,23 $

Unit Price

BARRE, ACCOUPLEMENT

3GB238310000 3GB238310000

Not available

JOINT, UNIVERSAL 1

55X238410100 55X238410100

100,57 $

Unit Price

NUT (3WP1)

953071070000

953171070000

4,24 $

Unit Price

JOINT, UNIVERSAL 2

52H238450100 52H238450100

102,97 $

Unit Price

NUT, HEXAGON (8A5)

901701018600 901701018600

7,23 $

Unit Price

NUT, SELF-LOCKING (8U7)

901851011500 901851011500

3,73 $

Unit Price

COTTER PIN

914012002000 914012002000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING of your Yamaha YFM80 of 2002. Let us know if you have any questions.
