SWITCH / LEVER

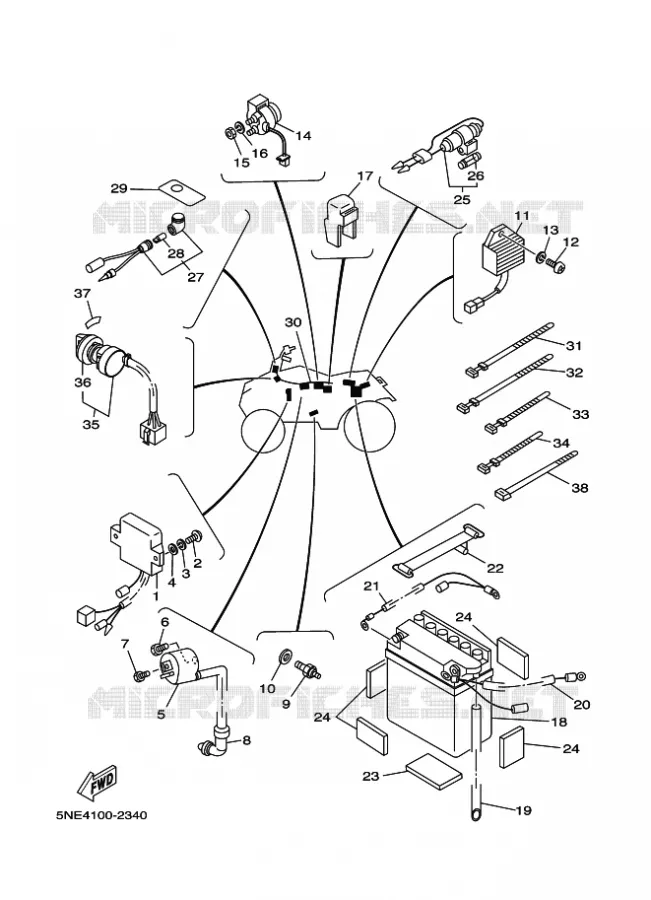

ELECTRICAL 1 FOR YAMAHA RAPTOR 2002

ELECTRICAL 2

Item numbers

BLOC C.D.I.

4EM855401000 4EM855401000

Not available

SCREW, PAN

985070602000

985170602000

4,41 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

WASHER(6TA)

929070660000 929070660000

1,83 $

Unit Price

4KJ823101000

3KJ823101300

60,54 $

Unit Price

BOLT, HEXAGON

970070601600

970170601600

2,42 $

Unit Price

SCREW (5G3)

901530603400 901530603400

3,22 $

Unit Price

PLUG CAP ASSY

55X823700000

4BP823700100

41,76 $

Unit Price

NEUTRAL SWITCH ASSY

3GB825400100 3GB825400100

28,15 $

Unit Price

GASKET (1KH, 1.0T)

904301014800 904301014800

6,35 $

Unit Price

RECTIFIER & REGULATOR ASSY

3GB819601000

5TH819600100

235,99 $

Unit Price

SCREW, PAN HEAD(3TJ)

985070601600 985070601600

2,29 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

STARTER RELAY ASSY (MS5D-611)

4KD819400000 4KD819400000

71,90 $

Unit Price

NUT(JN5)

953070670000

953170670000

2,10 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

RELAY ASSY

1RL819509200

12R819500200

159,43 $

Unit Price

BAT 12N7D-3B (12N7D-3B) YU NA

55X821106100

12N7D3B00000

112,85 $

Unit Price

HOSE (L1500)

90445085E000

90445084J000

21,15 $

Unit Price

WIRE, PLUS LEAD

55X821150000

55X821150100

23,96 $

Unit Price

WIRE, MINUS LEAD

3GB821160000 3GB821160000

20,13 $

Unit Price

BAND, BATTERY

4J2821310100 4J2821310100

15,49 $

Unit Price

SIEGE, BATTERIE

55X821220000 55X821220000

Not available

DAMPER 1

29W821230000

1UY216380000

1,44 $

Unit Price

FUSE HOLDER ASSY

3GB821500000 3GB821500000

61,75 $

Unit Price

FUSE (12V 5A)

3GB821510000

5G2821510000

3,02 $

Unit Price

PILOT LIGHT ASSY

4KB835300000

4KB835300100

22,95 $

Unit Price

BULB (12V-1.7W)

5GH835160000

3FV835170000

10,47 $

Unit Price

ETIQUETTE

4EM835851000 4EM835851000

Not available

FAISCEAU DE FILS COMPLET

4EM825902000 4EM825902000

Not available

BAND, SWITCH CORD

3TB839360000

437839361100

4,65 $

Unit Price

BAND, SWITCH CORD

25G839360100 25G839360100

6,05 $

Unit Price

CLAMP

366825910000

437839360100

1,33 $

Unit Price

CLAMP

437839360100

904643001400

1,33 $

Unit Price

MAIN SWITCH ASSY

4GB825101100

4GB825101200

125,50 $

Unit Price

CAP, KEY

3HN825790000 3HN825790000

16,30 $

Unit Price

ETIQUETTE

29U835851000 29U835851000

Not available

CLAMP

904651009800 904651009800

1,78 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha YFM80 of 2002. Let us know if you have any questions.
