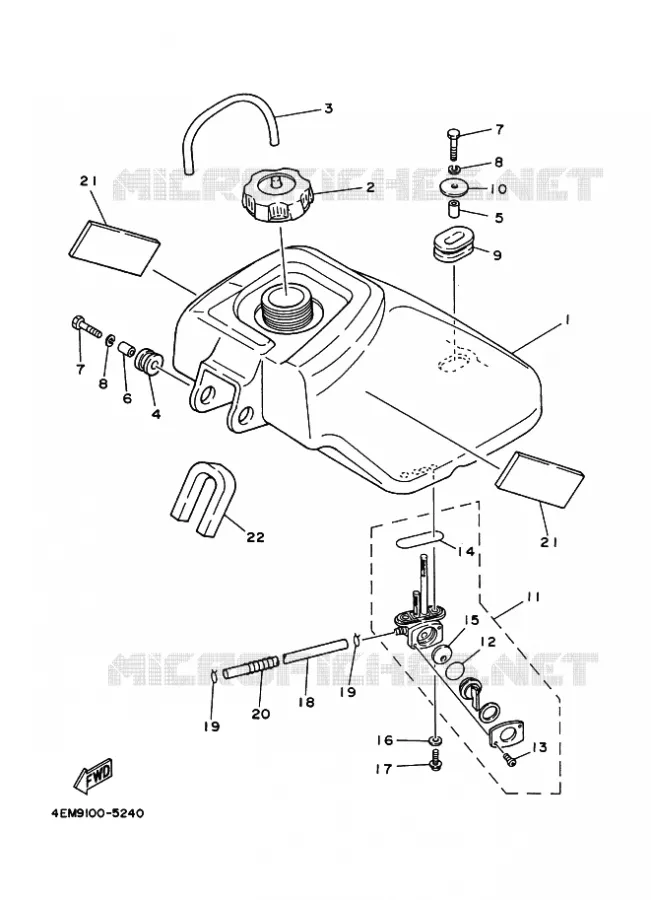

FUEL TANK FOR YAMAHA RAPTOR 1996

SEAT

Item numbers

RESERVOIR A ESSENCE

2HX241100000 2HX241100000

Not available

CAP ASSY

2FJ246100000

2FJ246102000

85,38 $

Unit Price

HOSE (L600)

90445084J100

90445083J500

10,49 $

Unit Price

GROMMET (4V1)

904801829000 904801829000

10,14 $

Unit Price

COLLAR (1T2)

903870759800 903870759800

8,37 $

Unit Price

COLLAR (36R)

90387066J100 90387066J100

10,17 $

Unit Price

BOLT, HEXAGON

970270603000

970170603000

2,45 $

Unit Price

WASHER, SPRING

929070610000 929070610000

1,68 $

Unit Price

GROMMET(38W)

904800140000 904800140000

15,10 $

Unit Price

WASHER, PLATE 1UY

90201060L500 90201060L500

3,29 $

Unit Price

FUEL COCK ASSY 1

55X245000100

55X245000200

43,43 $

Unit Price

SEAL, COCK

3AJ245340000

3AJ245340100

6,69 $

Unit Price

SCREW, PAN HEAD (J10)

985030300800

985800300800

2,10 $

Unit Price

SOUPAPE

4X8245230000 4X8245230000

Not available

VALVE PACKING

3AJ245230000

3AC245230000

16,29 $

Unit Price

WASHER, PLATE(3MB)

902020519300

902020518700

1,68 $

Unit Price

SCREW 256241430000

901490601100 901490601100

7,02 $

Unit Price

HOSE (L200)

904451063800

904451075200

14,01 $

Unit Price

CLIP

904670900600

90467090A200

1,47 $

Unit Price

SPRING, COMPRESSION (1J7)

905040603000 905040603000

4,25 $

Unit Price

SEAT, BATTERY

5Y1821220000 5Y1821220000

4,22 $

Unit Price

DAMPER 1

88T771980000 88T771980000

2,53 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Yamaha YFM80 of 1996. Let us know if you have any questions.
