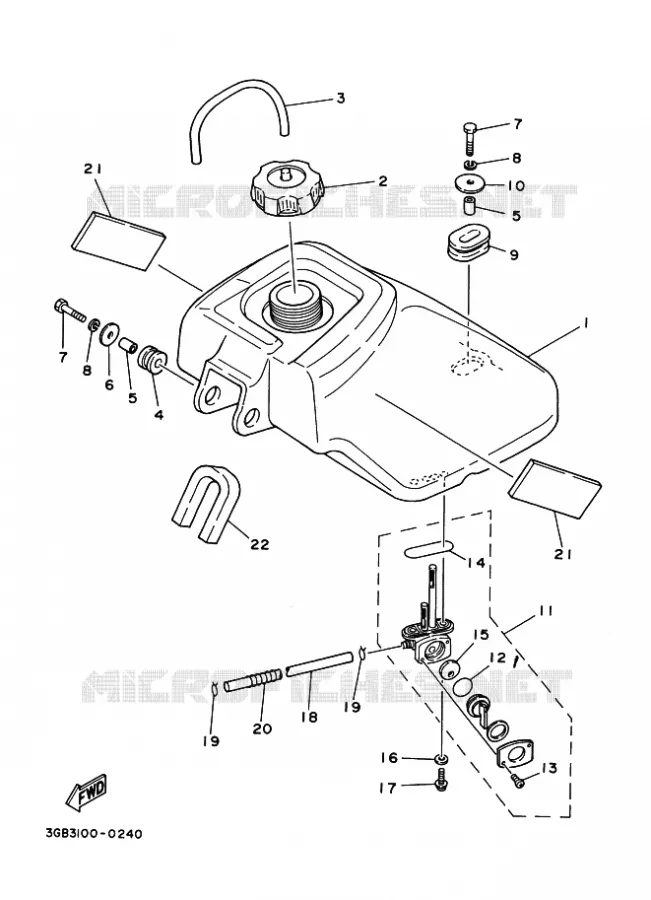

FUEL TANK FOR YAMAHA RAPTOR 1994

SEAT

Item numbers

RESERVOIR A ESSENCE

2HX241100000 2HX241100000

Not available

CAP ASSY

2FJ246100000

2FJ246101000

81,90 $

Unit Price

HOSE (L1500)

904450911100

904450912000

31,17 $

Unit Price

GROMMET (4V1)

904801829000 904801829000

9,73 $

Unit Price

COLLAR (1T2)

903870759800 903870759800

8,03 $

Unit Price

WASHER PLATE 137241870000

902010607200 902010607200

2,67 $

Unit Price

BOLT, HEXAGON

970210603000

970270602500

2,32 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,40 $

Unit Price

GROMMET(38W)

904800140000 904800140000

14,48 $

Unit Price

WASHER, PLATE 1UY

90201060L500 90201060L500

3,16 $

Unit Price

FUEL COCK ASSY 1

55X245000100

55X245000200

41,66 $

Unit Price

SEAL, COCK

3AJ245340000

3AJ245340100

6,42 $

Unit Price

SCREW, PAN HEAD (J10)

985030300800

985800300800

2,01 $

Unit Price

O-RING

4X8245120000 4X8245120000

7,44 $

Unit Price

VALVE PACKING

3AJ245230000

3AC245230000

15,63 $

Unit Price

WASHER, PLATE(3MB)

902020519300

902020518700

1,61 $

Unit Price

SCREW 256241430000

901490601100 901490601100

6,73 $

Unit Price

HOSE (L200)

904451063800

904451075200

13,44 $

Unit Price

CLIP

904670900600

90467090A200

1,41 $

Unit Price

SPRING, COMPRESSION (1J7)

905040603000 905040603000

4,08 $

Unit Price

SEAT, BATTERY

5X2241830000

5Y1821220000

4,05 $

Unit Price

DAMPER 1

1TX282170000

88T771980000

2,53 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK of your Yamaha YFM80 of 1994. Let us know if you have any questions.
