SIDE COVER - OIL TANK

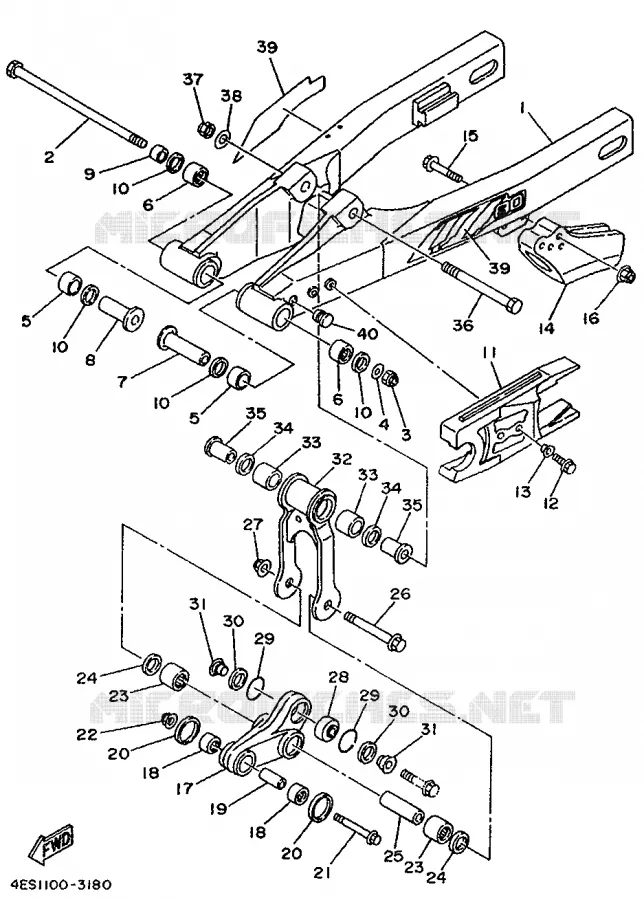

SWINGARM FOR YAMAHA YZ 1993

REAR SHOCK ABSORBER

REAR ARM

4ES221100000

4ES221100100

949,56 $

Unit Price

AXLE, WHEEL

22W251810100 22W251810100

31,45 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

WASHER, PLATE (25H)

90201124G900 90201124G900

7,92 $

Unit Price

BUSH(39K)

903851704200 903851704200

23,51 $

Unit Price

BEARING, CYLINDRICAL(39K)

933172174600 933172174600

35,89 $

Unit Price

COLLAR(39K)

90387127J800 90387127J800

26,04 $

Unit Price

COLLAR(39K)

90387127J700 90387127J700

26,32 $

Unit Price

COLLAR(4ES)

903871200U00 903871200U00

14,70 $

Unit Price

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

GUARD SEAL

4ES221510000

4ES221511000

81,81 $

Unit Price

BOLT, FLANGE(4DU)

950210601400

950270601400

0,89 $

Unit Price

C0LLAR (3JB1)

90387062X000 90387062X000

19,97 $

Unit Price

SUPPORT, CHAINE

39K221990000 39K221990000

Not available

BOLT, WASHER BASED(36Y)

901050831000 901050831000

5,49 $

Unit Price

NUT, SELF-LOCKING

956010820000 956010820000

3,15 $

Unit Price

BRAS DE LIAISON

4ES2217A0000 4ES2217A0000

Not available

ROULEMENT

933153144900 933153144900

Not available

BUSH, SOLID(4ES)

903801021800 903801021800

20,86 $

Unit Price

COVER, THRUST 2

4ES221290000 4ES221290000

21,04 $

Unit Price

BOLT, WASHER BASED(3FV)

901051058200 901051058200

17,39 $

Unit Price

NUT, SELF-LOCKING

956011020000

901851017000

10,56 $

Unit Price

BEARING, CYLINDRICAL(3YL)

933153174800

933173177100

37,88 $

Unit Price

OIL SEAL (17X25X4-401)

931011706200 931011706200

17,66 $

Unit Price

BUSH, SOLID(4ES)

903801221900 903801221900

19,51 $

Unit Price

BOULON, AVEC RONDELLE

901051238200 901051238200

Not available

NUT, U FLANGE

956011220000

956071220000

7,77 $

Unit Price

BEARING(3XP)

933999992100

933999993500

95,17 $

Unit Price

CIRCLIP (23X)

934403011300 934403011300

1,70 $

Unit Price

SEAL, DUST

3XJ224750000 3XJ224750000

10,12 $

Unit Price

COLLAR(3XJ)

90387103X900 90387103X900

20,82 $

Unit Price

ROD, CONNECTING 1

4ES2217F0000 4ES2217F0000

152,86 $

Unit Price

BEARING, CYLINDRICAL(3YL)

933153174800

933173177100

37,88 $

Unit Price

OIL SEAL (17X25X4-401)

931011706200 931011706200

17,66 $

Unit Price

BUSH, SOLID(4ES)

903811209100 903811209100

25,26 $

Unit Price

BOLT(4ES)

901011275500 901011275500

13,27 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

WASHER, PLATE

90201122A700

902011204700

2,43 $

Unit Price

EMBLEM

4ES221800100 4ES221800100

34,95 $

Unit Price

PLUG (31M)

903381015000 903381015000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha YZ80 of 1993. Let us know if you have any questions.
