SIDE COVER - OIL TANK

SWINGARM FOR YAMAHA YZ 1992

REAR SHOCK ABSORBER

REAR ARM

2VE221100000 2VE221100000

955,42 $

Unit Price

AXE, PIVOT

4V1221410000 4V1221410000

Not available

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

WASHER, PLATE (25H)

90201124G900 90201124G900

7,92 $

Unit Price

BUSH(39K)

903851704200 903851704200

23,51 $

Unit Price

BEARING, CYLINDRICAL(39K)

933172174600 933172174600

35,89 $

Unit Price

COLLAR(39K)

90387127J800 90387127J800

26,04 $

Unit Price

COLLAR(39K)

90387127J700 90387127J700

26,32 $

Unit Price

OIL SEAL(38V)

931091704800 931091704800

14,94 $

Unit Price

WASHER, PLATE(39K)

90201191J400 90201191J400

5,07 $

Unit Price

SHIM

401221270000 401221270000

6,81 $

Unit Price

COVER, THRUST 1

401221280100 401221280100

25,52 $

Unit Price

JOINT, PROTECTEUR

1LR221510000 1LR221510000

Not available

BOLT, SMALL FLANGE

950260602500

950270602500

2,49 $

Unit Price

WASHER, PLATE

902010606700

902010638000

5,48 $

Unit Price

SUPPORT, CHAINE

39K221990000 39K221990000

Not available

BOLT, FLANGE(JN5)

910210804500

958170804500

4,30 $

Unit Price

NUT, SELF-LOCKING

956010820000 956010820000

3,15 $

Unit Price

BRAS DE LIAISON

39K2217A0000 39K2217A0000

Not available

BUSH, BIMETAL FORMED(39K)

903841819000 903841819000

16,14 $

Unit Price

BUSHING, REAR ARM INNER

903801209400

2J5221240000

16,74 $

Unit Price

COVER, THRUST 2

5X6221290000 5X6221290000

14,75 $

Unit Price

BOULON

90109100E400 90109100E400

Not available

WASHER, PLATE(6TC)

90201100E900

9020110M0500

7,82 $

Unit Price

WASHER, PLATE (8K2)

90201120A500 90201120A500

5,48 $

Unit Price

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

BUSH 2

22W221240000 22W221240000

21,45 $

Unit Price

BUSH, SOLID (22W)

903801610900 903801610900

14,87 $

Unit Price

BUSH, FORMED (22W)

903831602300 903831602300

20,25 $

Unit Price

OIL SEAL (22W)

931091603500 931091603500

8,62 $

Unit Price

COLLAR (22W)

90387106G000 90387106G000

17,03 $

Unit Price

BOLT (22W)

901091068900 901091068900

5,49 $

Unit Price

WASHER, PLATE

929901060000 929901060000

3,94 $

Unit Price

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

BIELLE 1

22W2217F0000 22W2217F0000

Not available

BUSH, FORMED (22W)

903831602300 903831602300

20,25 $

Unit Price

COVER, THRUST 2

22W221290000 22W221290000

16,26 $

Unit Price

COLLAR (22W)

90387105G900 90387105G900

16,41 $

Unit Price

BOULON

901091068800 901091068800

Not available

NUT, SELF LOCKING (23X)

901851012000 901851012000

6,52 $

Unit Price

WASHER, PLATE

929901060000 929901060000

3,94 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

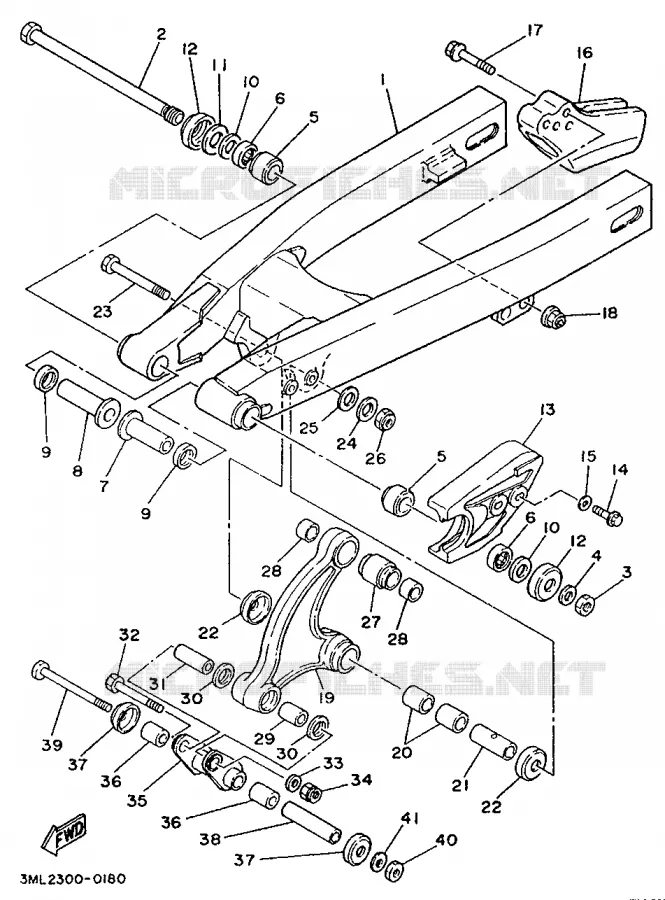

Find on this page all the original spare parts relating to the SWINGARM of your Yamaha YZ80D of 1992. Let us know if you have any questions.

Select your Yamaha YZ model from 1992
