SWITCH / LEVER

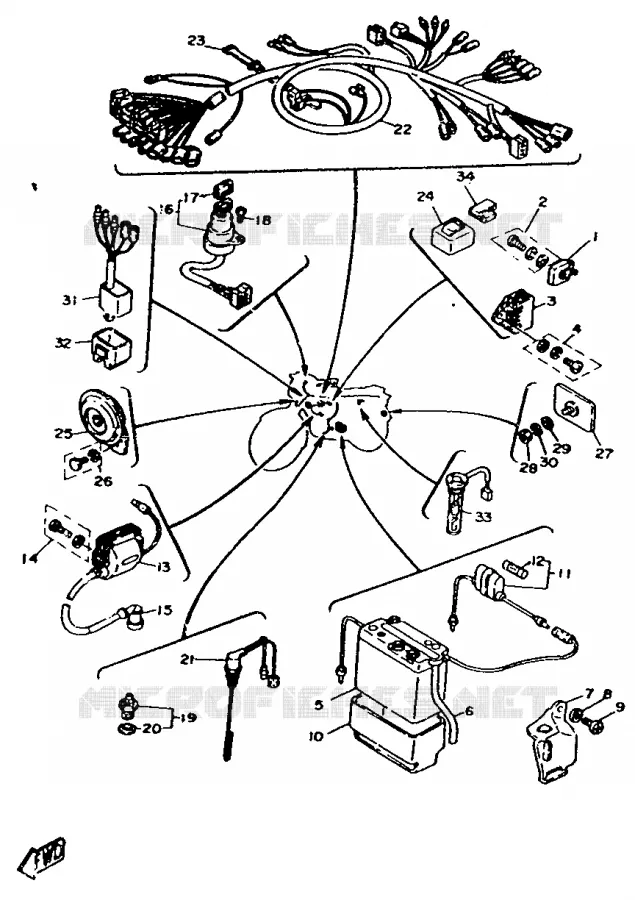

ELECTRICAL 1 FOR YAMAHA DT 1987

RECTIFIER ASSY

353819705000

35381970M200

16,45 $

Unit Price

VIS HEXAGONAL

976010532000 976010532000

Not available

VOLTAGE REGULATOR ASSY

4F4819106000 4F4819106000

90,58 $

Unit Price

VIS HEXAGONAL

976010631600 976010631600

Not available

BATTERIE COMPLET

1MKH21100000 1MKH21100000

Not available

BREATHER PIPE

904450817100

2RH218260000

11,66 $

Unit Price

COUVERCLE, BATTERIE

5T8H21290000 5T8H21290000

Not available

WASHER, PLATE (4L0)

90201062A800 90201062A800

1,68 $

Unit Price

SCREW, PAN HEAD(3TJ)

925060601600

985070601600

2,29 $

Unit Price

SIEGE, BATTERIE

5T8H21220000 5T8H21220000

Not available

SUPPORT DE FUSIBLE

5T8H21500000 5T8H21500000

Not available

.FUSIBLE FUSIBLE

5T8H21510000 5T8H21510000

Not available

BOBINE D ALLUMAGE

1K8823104100 1K8823104100

Not available

SCREW, PAN HEAD WITH WASHER

976020612000

976020612009

1,64 $

Unit Price

ANTIPARASITE

20LH2370V000 20LH2370V000

Not available

CONTACTEUR A CLEF COMPLET

5T8H25100000 5T8H25100000

Not available

.COUVERCLE COUVERCLE

5T8H25680000 5T8H25680000

Not available

VIS, DE PRESSION

989020401000 989020401000

Not available

NEUTRAL SWITCH ASSY

296825400100

4GY825401000

30,06 $

Unit Price

GASKET

341825430000

296825430000

2,51 $

Unit Price

COMMUTATEUR CPLT

1MKH2530V000 1MKH2530V000

Not available

FAISCEAU DE FILS COMPLET

2RYH25900000 2RYH25900000

Not available

COLLIER, CORDON DE COMMUTATEUR

5T8H39360000 5T8H39360000

Not available

RELAIS DES CLIGNOTANTS CPLT

20L833501000 20L833501000

Not available

2RYM33700000

2RYM33700000 2RYM33700000

Not available

BOLT (661)

975010611200

970130601200

5,54 $

Unit Price

CATADIOPTRE ARRIERE

5T8H5130V000 5T8H5130V000

Not available

NUT, HEXAGON (663)

953010560000

953800560000

4,02 $

Unit Price

YBS66-5 WASHER, PLAIN

929010520000

929900520000

1,68 $

Unit Price

YBS67-5 WASHER, SPRING

929010510000

929900510000

1,68 $

Unit Price

BLOC C.D.I.

3A3855402000 3A3855402000

Not available

COLLIER

5T8H55460000 5T8H55460000

Not available

OIL LEVEL GAUGE

2E7857200200 2E7857200200

52,69 $

Unit Price

AMORTISSEUR, RELAIS

20LH33530000 20LH33530000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha DT80 of 1987. Let us know if you have any questions.
