GEAR SHIFT LEVER

FRAME FOR YAMAHA DTLC 1986

FENDER

CADRE COMP.

53V2111000FN 53V2111000FN

Not available

BOLT, FLANGE

958210812500

958170812500

7,86 $

Unit Price

YBS67-8 WASHER, SPRING

929010810000

929900810000

1,68 $

Unit Price

NUT(6L2)

953010860000

953330860000

3,75 $

Unit Price

BOLT(30W)

90109101A000 90109101A000

15,10 $

Unit Price

YBS67-10 WASHER, SPRING

929011010000

929901010000

3,94 $

Unit Price

NUT(3BM)

953011060000

953141060000

2,62 $

Unit Price

PROTECTEUR, MOTEUR

37A214710035 37A214710035

Not available

BOLT, HEXA W-W

901190601800 901190601800

4,16 $

Unit Price

PLUG

903380908500

903380926500

7,11 $

Unit Price

AMORTISSEUR, CAOUTCHOUC 1

10V214850000 10V214850000

Not available

SHAFT

2K72148A0000 2K72148A0000

9,27 $

Unit Price

TENSIONER

10V221780000 10V221780000

7,44 $

Unit Price

BUSH

10V221840000 10V221840000

4,81 $

Unit Price

WASHER 1902345600

902010831000 902010831000

2,72 $

Unit Price

BOLT, FLANGE

958060805000

958170805000

4,26 $

Unit Price

NUT, U

956060810000

956170810000

10,16 $

Unit Price

PORTE-CASQUE

5A8213080000 5A8213080000

Not available

SCREW, FLAT

927060602500

987070602500

2,10 $

Unit Price

BOLT, FLANGE

958020801200

958170801200

3,75 $

Unit Price

SUPPORT DE RESSORT

53V2741H0000 53V2741H0000

Not available

SCREW, PAN HEAD(3LA)

985060501000

985170501000

1,49 $

Unit Price

WASHER(1RW)

929060560000

929070560000

2,13 $

Unit Price

TROUSSE A OUTILS

34X281000000 34X281000000

Not available

BAND, BATTERY

47X821310000

3TJ821310000

14,12 $

Unit Price

SPANNER, SPECIAL

1W1281351000

10V281350000

33,33 $

Unit Price

JAUGE A HUILE

3H7153610000 3H7153610000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

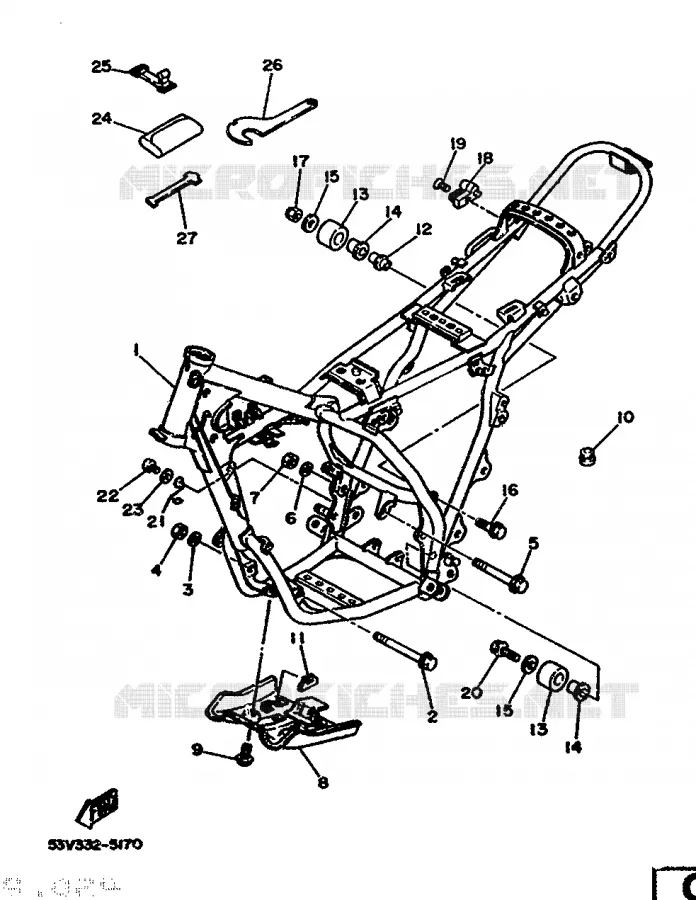

Find on this page all the original spare parts relating to the FRAME of your Yamaha DT80LC of 1986. Let us know if you have any questions.
