STARTER MOTOR

STARTER CLUTCH FOR YAMAHA YZF 1993

TRANSMISSION

CLOCHE D EMBRAYAGE CPLTE

4FM161500000 4FM161500000

Not available

PLAQUE, BUTEE 1

1AE161540000 1AE161540000

Not available

MOYEU D EMBRAYAGE

2GH163710000 2GH163710000

Not available

PLATE, CLUTCH 1

3J2163240000

3J2163241000

23,34 $

Unit Price

PLATE, FRICTION

4FN163210000 4FN163210000

30,87 $

Unit Price

PLATE, PRESSURE 1

58L163510000 58L163510000

90,57 $

Unit Price

SPRING, COMPRESSION(1FN)

90501225A900 90501225A900

9,29 $

Unit Price

VIS, AVEC RONDELLE

901590812300 901590812300

Not available

COLLAR

905602527000

903872502400

46,57 $

Unit Price

BEARING, CYLINDRICAL(1FN)

93310340N800 93310340N800

51,85 $

Unit Price

PLATE, THRUST 2

1AE161640000 1AE161640000

21,33 $

Unit Price

WASHER, LOCK (34L)

902152023100 902152023100

8,37 $

Unit Price

NUT (34L)

901702032700 901702032700

16,40 $

Unit Price

TIGE DE DEBRAYAGE

1LJ163560000 1LJ163560000

Not available

O-RING (26H)

932100663200 932100663200

6,63 $

Unit Price

BALL (498)

935113202700 935113202700

5,17 $

Unit Price

TIGE DE DEBRAYAGE 2

1AE163570000 1AE163570000

Not available

OIL SEAL(12E)

931090806100 931090806100

12,96 $

Unit Price

PUSH LEVER COMP.

1TV163811000

1TV163811200

274,06 $

Unit Price

BLEED SCREW KIT

36YW00480000 36YW00480000

23,50 $

Unit Price

PUSH LEVER SEAL KIT

26HW00980000 26HW00980000

27,95 $

Unit Price

PIN, DOWEL(N04)

995100801200

918081202400

5,49 $

Unit Price

BOLT, FLANGE

950260603000

958170603000

3,91 $

Unit Price

BOLT, SMALL FLANGE

950260609000

950270609000

2,62 $

Unit Price

BEARING, THRUST (713)

933402150500 933402150500

23,47 $

Unit Price

WASHER, PLATE(3GD)

90201150H200

90201150U600

10,59 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

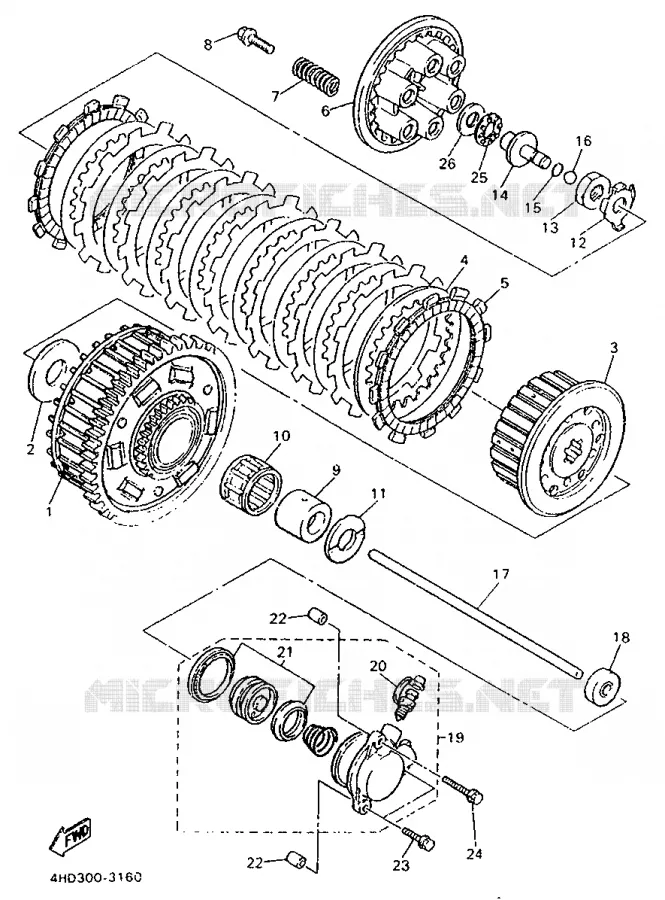

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha YZF750SP of 1993. Let us know if you have any questions.
