FRONT MASTER CYLINDER 2

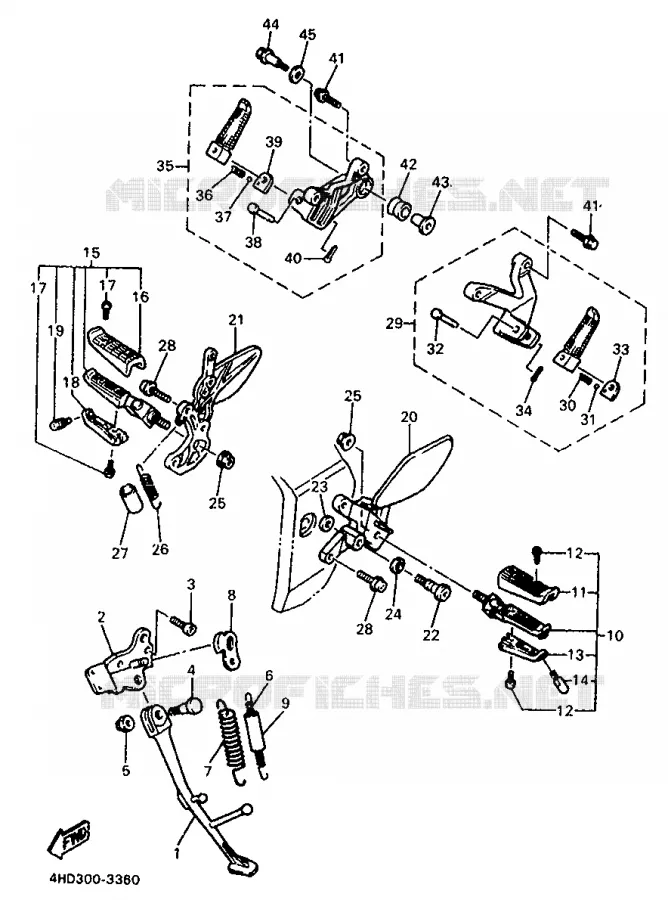

STAND / FOOTREST FOR YAMAHA YZF 1993

REAR BRAKE MASTER CYLINDER

BEQUILLE, LATERALE

4FM273110000 4FM273110000

Not available

SUPPORT, BEQUILLE LATERALE

4FM273210000 4FM273210000

Not available

BOLT, SOCKET

901100815500

913170803000

5,25 $

Unit Price

BOLT(2GH)

90109104E600 90109104E600

10,12 $

Unit Price

NUT, U

901851003700 901851003700

9,07 $

Unit Price

SPRING, TENSION (4K0)

905061822400 905061822400

7,45 $

Unit Price

SPRING, TENSION (4K0)

905062622500 905062622500

9,95 $

Unit Price

LINK, SIDE STAND

4FM273150000 4FM273150000

12,23 $

Unit Price

GUIDE, SIDE STAND

1TX273510000 1TX273510000

9,27 $

Unit Price

REPOSE-PIEDS AV (G)

4FM274100000 4FM274100000

COVER, FOOTREST

2GH274130000 2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

.BARRE, REPOSE-PIEDS 1 BARRE, REPOSE-PIEDS 1

4FM274710000 4FM274710000

Not available

.BOULON BOULON

4FM274350000 4FM274350000

Not available

REPOSE-PIEDS AV (D)

4FM274200000 4FM274200000

Not available

COVER, FOOTREST

2GH274130000 2GH274130000

47,13 $

Unit Price

SCREW, PAN HEAD

901570507900

985070501400

2,23 $

Unit Price

.BARRE, REPOSE-PIEDS 1 BARRE, REPOSE-PIEDS 1

4FM274710000 4FM274710000

Not available

.BOULON BOULON

4FM274350000 4FM274350000

Not available

BRACKET 2

4FM274420000

4FM274420200

153,30 $

Unit Price

BRACKET 3

4FM274430000

4FM274430200

106,93 $

Unit Price

BOLT

4BP274340100

4BP274341100

5,89 $

Unit Price

WASHER (853)

902010832600 902010832600

5,00 $

Unit Price

WASHER, PLATE(55K)

90201127J600 90201127J600

5,61 $

Unit Price

NUT(4KG)

901791024700

901791065800

3,49 $

Unit Price

SPRING, TENSION(46X)

905062037700 905062037700

6,11 $

Unit Price

HOSE(3GM)

904461734600 904461734600

3,63 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(3GM)

901100819900 901100819900

4,32 $

Unit Price

REAR FOOTREST ASSY

4FM274300000

4FM274301100

160,66 $

Unit Price

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

.BOULON, A GOUPILLE BOULON, A GOUPILLE

917010804500 917010804500

Not available

.RONDELLE, SPECIALE RONDELLE, SPECIALE

4DN274370000 4DN274370000

Not available

PIN, COTTER

914012502000

914902502000

3,93 $

Unit Price

REPOSE-PIEDS AR (D)

4FM274400000 4FM274400000

Not available

SPRING, COMPRESSION (22N)

905011274300 905011274300

3,98 $

Unit Price

BALL

935010401100 935010401100

0,74 $

Unit Price

.BOULON, A GOUPILLE BOULON, A GOUPILLE

917010804500 917010804500

Not available

.RONDELLE, SPECIALE RONDELLE, SPECIALE

4DN274370000 4DN274370000

Not available

PIN, COTTER

914012502000

914902502000

3,93 $

Unit Price

BOLT, FLANGE(6TA)

958110803000

958170803000

4,16 $

Unit Price

DAMPER, MUFFLER BRACKET

2H7274140000 2H7274140000

4,26 $

Unit Price

COLLAR (2H7)

903871063600 903871063600

16,15 $

Unit Price

BOLT, WASHER BASED(4KM)

901051031600

901051077800

10,50 $

Unit Price

WASHER, PLATE (2H7)

902011066900 902011066900

7,43 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha YZF750R of 1993. Let us know if you have any questions.
