FRONT MASTER CYLINDER

STAND / FOOTREST FOR YAMAHA SUPERTENERE 1993

REAR BRAKE MASTER CYLINDER

FOOTREST 1

3LD274110000

3LD274111000

50,02 $

Unit Price

FOOTREST COVER

3LD274130000 3LD274130000

47,62 $

Unit Price

BOLT, SOCKET

913160601000

913170601000

4,24 $

Unit Price

FOOTREST 2

3LD274210000

3LD274211000

50,06 $

Unit Price

SPRING, TORSION (23X)

905082058300 905082058300

3,39 $

Unit Price

PIN, CLEVIS(2HJ)

902401011700 902401011700

10,82 $

Unit Price

PIN, COTTER

914012502000

914902502000

3,93 $

Unit Price

WASHER, PLAIN(735)

902011011900 902011011900

6,46 $

Unit Price

BEQUILLE, LATERALE

3LD2731100R4 3LD2731100R4

Not available

FLANGE BOLT

901051261600 901051261600

13,96 $

Unit Price

NUT, SELF LOCKING (23X)

901851211900 901851211900

11,34 $

Unit Price

BIELLETTE, BEQUILLE LATERALE

3GJ273150000 3GJ273150000

Not available

RESSORT, TENSION

905073202000 905073202000

Not available

HOSE (L85)

90445252G500 90445252G500

10,23 $

Unit Price

ETRIER 4

3LD2741L1000 3LD2741L1000

Not available

BOLT (3LD)

90109084E100

90109087F100

3,73 $

Unit Price

BRACKET 5

3LD2742L1000

3LD2742L1100

166,96 $

Unit Price

BOLT (3LD)

90109084E100

90109087F100

3,73 $

Unit Price

FOOTREST, REAR 1

120274310000

2GV274310000

18,34 $

Unit Price

COVER, REAR FOOTREST

120274330000 120274330000

12,58 $

Unit Price

WASHER, PLATE (888)

902012027900 902012027900

1,68 $

Unit Price

PIN, CLEVIS

917010603800

917020603800

2,52 $

Unit Price

YBS66-6 WASHER, PLAIN

929010620000

929900620000

1,68 $

Unit Price

COTTER PIN

914012001500

914012002000

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

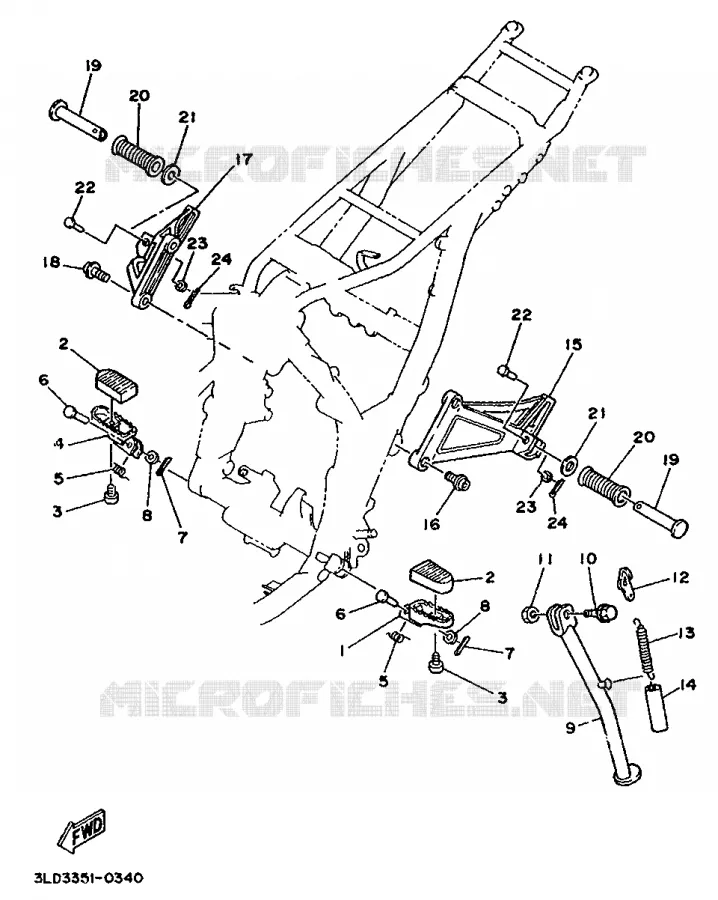

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND / FOOTREST of your Yamaha XTZ750 of 1993. Let us know if you have any questions.
