STARTER CLUTCH

STARTER CLUTCH FOR YAMAHA SUPERTENERE 1992

TRANSMISSION

PRIMARY DRIVEN GEAR

3LD161500300

3VD161501000

366,26 $

Unit Price

ROD PUSH ASSY

3LD1637A0000

3LD1637A0100

89,37 $

Unit Price

BEARING, THRUST (713)

933402150500 933402150500

23,47 $

Unit Price

WASHER, PLATE(3GD)

90201150H200

90201150U600

10,59 $

Unit Price

PLATE, THRUST 1

4H7161540000 4H7161540000

26,85 $

Unit Price

MOYEU D EMBRAYAGE

3VD163710000 3VD163710000

Not available

PLATE, CLUTCH 1

168163240000

168163241000

25,74 $

Unit Price

PLATE, FRICTION

4H7163210000

4H7163210200

24,09 $

Unit Price

DISQUE 1, PRESSION

3LD163510000 3LD163510000

Not available

SPRING, COMPRESSION(58L)

90501224A800 90501224A800

7,07 $

Unit Price

SCREW, WITH WASHER(33M)

901590609200 901590609200

6,46 $

Unit Price

PLATE, CLUTCH 2

31A163250000

31A163251000

19,14 $

Unit Price

PLATE, FRICTION

31A163210000

4H7163210200

24,09 $

Unit Price

WASHER, LOCK (34L)

902152023100 902152023100

8,37 $

Unit Price

NUT (34L)

901702032700 901702032700

16,40 $

Unit Price

PUSH LEVER ASSY

3LD163400100 3LD163400100

27,02 $

Unit Price

RESSORT, TORSION

905081079100 905081079100

Not available

AXE, LEVIER DE DEBRAYAGE

3LD163820000 3LD163820000

Not available

PINION, RELEASE

3LD163980000 3LD163980000

27,78 $

Unit Price

WASHER, PLAIN (663)

929010860000

929900860000

1,68 $

Unit Price

CIRCLIP(6L2)

990800760000 990800760000

1,77 $

Unit Price

BEARING

933171102000

933171109600

18,46 $

Unit Price

OIL SEAL (4G0)

931021222400 931021222400

6,46 $

Unit Price

WASHER (692)

9020112M3400 9020112M3400

2,16 $

Unit Price

BRG, CYL-CAL ROLLER 6G TM

933151120600 933151120600

22,93 $

Unit Price

WASHER, PLAIN(735)

902011011900 902011011900

6,46 $

Unit Price

CIRCLIP(10W)

990091040000 990091040000

1,64 $

Unit Price

PLATE, THRUST 2

3VD161640000 3VD161640000

29,68 $

Unit Price

PLATE, THRUST 1

3VD161540000 3VD161540000

19,08 $

Unit Price

ENTRETOISE 1

3LD161810000 3LD161810000

Not available

BEARING, CYLINDRICAL

93310365B800 93310365B800

104,25 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

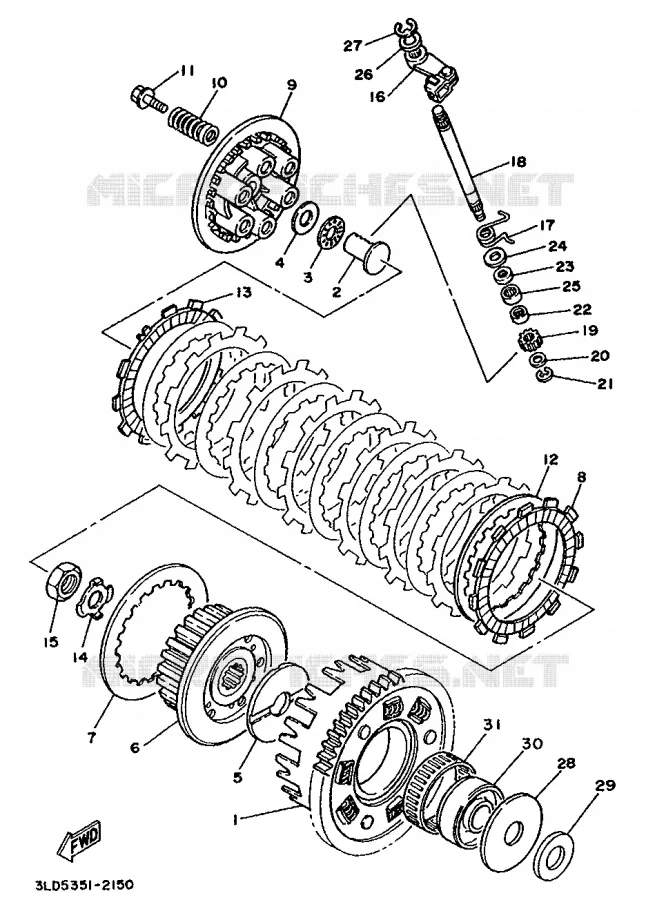

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER CLUTCH of your Yamaha XTZ750H (51KW) of 1992. Let us know if you have any questions.
