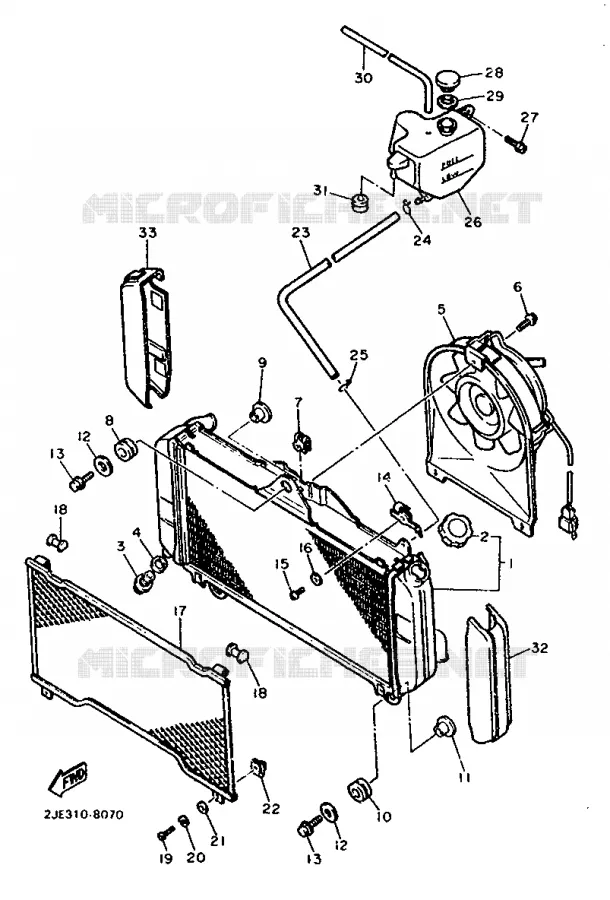

RADIATOR / HOSES FOR YAMAHA FZX 1988

OIL PUMP

RADIATOR ASSY

1UF124610000

1UF124610100

1 002,54 $

Unit Price

CAP, RADIATOR

26H124620000

3XP124620000

60,32 $

Unit Price

PLUG, DRAIN COCK

1AA125610000 1AA125610000

23,49 $

Unit Price

GASKET

1AA124350000 1AA124350000

10,16 $

Unit Price

ENS. VENTILATEUR

1UF124050000 1UF124050000

Not available

BOLT, WITH WASHER

11H126750000

901190604400

3,12 $

Unit Price

PLATE

1AA125350000 1AA125350000

16,06 $

Unit Price

GROMMET (4L0)

904801827600 904801827600

3,87 $

Unit Price

COLLERETTE

90387076U500 90387076U500

Not available

GROMMET(1AA)

904801843500 904801843500

6,21 $

Unit Price

COLLERETTE

90387086U400 90387086U400

Not available

WASHER, PLATE (J10)

90201062K200

90201066F300

3,84 $

Unit Price

BOULON, A COLLERETTE

958260602200 958260602200

Not available

RETENUE

1UF124370000 1UF124370000

SCREW, PAN HEAD(6G8)

985060401000

985070401000

2,01 $

Unit Price

WASHER(JF2)

929060460000

929070460000

1,76 $

Unit Price

COUVERCLE, RADIATEUR

1UF124670000 1UF124670000

Not available

GASKET

1UF124350000 1UF124350000

5,86 $

Unit Price

SCREW, PAN HEAD(3LA)

985060501000

985070501000

1,43 $

Unit Price

WASHER(3SX)

929060510000

929070510000

2,04 $

Unit Price

WASHER(1RW)

929060560000

929070560000

2,04 $

Unit Price

NUT, SPRING

901830502400

90183051A000

3,44 $

Unit Price

HOSE (L1500)

90445095E900

90445090F600

31,17 $

Unit Price

CLIP (8L2)

904670801700 904670801700

5,63 $

Unit Price

CLIP 101235600

904670804000

904670800300

5,38 $

Unit Price

VASE, EXPANSION

1UF218710000 1UF218710000

Not available

SCREW, WITH WASHER (5U8)

901590605600 901590605600

4,16 $

Unit Price

CAP

4L0218750000

1AA218150000

12,81 $

Unit Price

GASKET

1AA218740000 1AA218740000

4,38 $

Unit Price

PIPE, OVERFLOW (L1400)

1UF218160000

4BH218770000

15,85 $

Unit Price

GROMMET (431)

904801405200 904801405200

6,25 $

Unit Price

COUVERCLE 1

1UF1246A0000 1UF1246A0000

Not available

C0UVERCLE 2

1UF1246E0000 1UF1246E0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR / HOSES of your Yamaha FZX750 of 1988. Let us know if you have any questions.
