SWITCH / LEVER

ELECTRICAL 1 FOR YAMAHA FZX 1987

ELECTRICAL 2

IGNITION COIL ASSY

1UF823101000

1AE823100900

284,41 $

Unit Price

IGNITION COIL ASSY

1UF823201000

1AE823100900

284,41 $

Unit Price

BOLT (4MY)

970110602000

970070602000

2,42 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

PLUG CAP ASSY

2KT823700000 2KT823700000

80,36 $

Unit Price

BLOC D ALLUMAGE

1UF823051000 1UF823051000

Not available

STARTER RELAY ASSY

36Y819400000 36Y819400000

95,62 $

Unit Price

NUT(650)

953020670000

953800670000

4,53 $

Unit Price

WASHER(6A1)

929900610000

929950610000

1,46 $

Unit Price

RECTIFIER 2

4U881980M000 4U881980M000

70,92 $

Unit Price

BAT YB14L-A2 (CB14L-A2) YU NA

447821107800

YB14LA200000

115,56 $

Unit Price

HOSE (L1500)

90445083A400

90445084J000

21,15 $

Unit Price

SEAT, BATTERY

5G3821210000

5Y1821220000

4,22 $

Unit Price

BAND, BATTERY

2T4821310000 2T4821310000

18,58 $

Unit Price

WIRE PLUS LEAD

36Y821150000

1TX821150000

82,23 $

Unit Price

.GARNITURE, FIL

4X7821190000 4X7821190000

Not available

MINUS WIRE LEAD

1UF821160000 1UF821160000

41,73 $

Unit Price

FUSE HOLDER ASSY

1AE821500000 1AE821500000

31,60 $

Unit Price

FUSE (12V 30A)

1AE821510000 1AE821510000

3,51 $

Unit Price

CONTACTEUR A CLEF COMPLET

2JE825100000 2JE825100000

Not available

SCREW(1KT)

901490622800 901490622800

5,18 $

Unit Price

FAISCEAU DE FILS COMPLET

2JE825900000 2JE825900000

Not available

FUSE (12V 15A)

36Y821510000 36Y821510000

6,55 $

Unit Price

FUSE (10A)

42X821510000 42X821510000

3,60 $

Unit Price

CLAMP

341263970100

904643001400

1,33 $

Unit Price

BAND

904641308000

1UA825910000

3,11 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

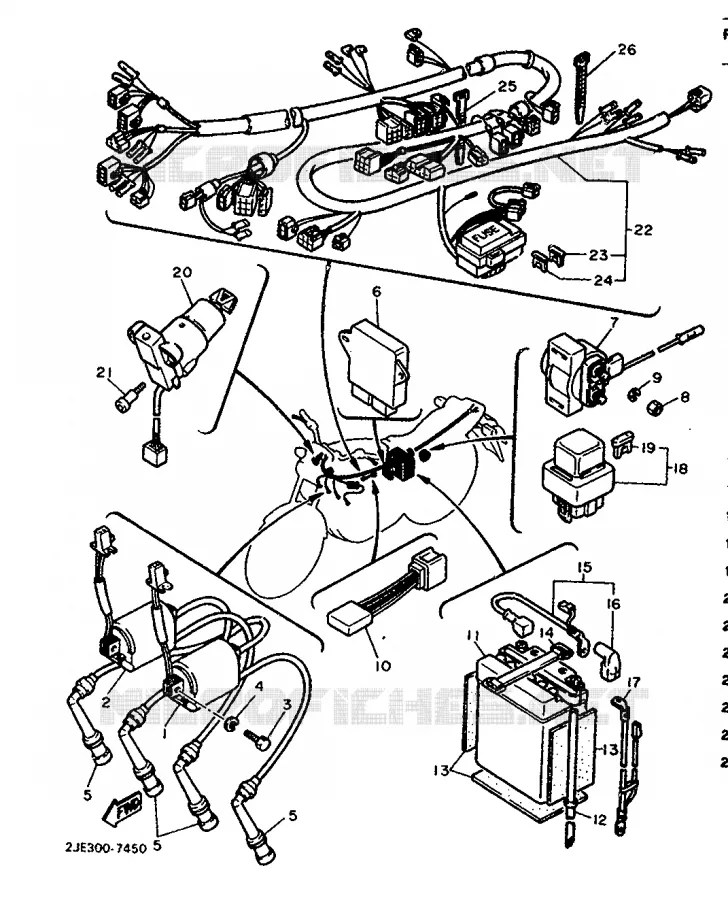

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 1 of your Yamaha FZX750 of 1987. Let us know if you have any questions.
