INTAKE

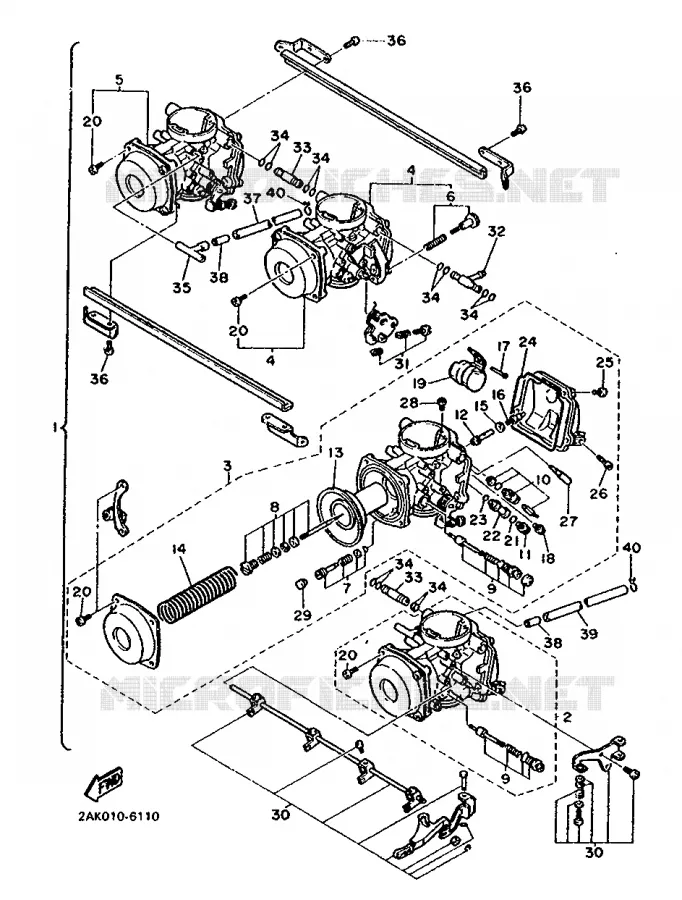

CARBURETOR FOR YAMAHA FZX 1987

EXHAUST

CARBURATEUR COMPLET

2AK149000000 2AK149000000

Not available

.CARBURATEUR 1 COMPLET

2AK149010000 2AK149010000

Not available

.CARBURATEUR 2 COMPLET

2AK149020000 2AK149020000

Not available

.CARBURATEUR 3 COMPLET

2AK149030000 2AK149030000

Not available

.CARBURATEUR 4 COMPLET

2AK149040000 2AK149040000

Not available

..JEU DE VIS D ACCELERATION

1AE141030000 1AE141030000

Not available

PILOT SCREW SET

12R141050000 12R141050000

17,93 $

Unit Price

..JEU D AIGUILLES

1FN1490J0000 1FN1490J0000

Not available

..JEU DE STATERS

1AE1410A0000 1AE1410A0000

Not available

STARTER SET

1FN1410A0000 1FN1410A0000

47,54 $

Unit Price

NEEDLE VALVE SET

1FN141071200 1FN141071200

67,19 $

Unit Price

..GICLEUR, PRINCIPAL ( 92.)

6201423A6900 6201423A6900

Not available

NOZZLE, MAIN

1AE141419200 1AE141419200

32,80 $

Unit Price

DIAPHRAGM ASSY

1AE149400000 1AE149400000

340,91 $

Unit Price

..RESSORT, DIAPHRAGME

1AE149330000 1AE149330000

Not available

WASHER, MAIN JET

137141530000 137141530000

4,41 $

Unit Price

SCREW

1AE145650000 1AE145650000

23,86 $

Unit Price

PIN, FLOAT

353141860000 353141860000

3,84 $

Unit Price

SCREW

1FN145650000 1FN145650000

8,54 $

Unit Price

..FLOTTEUR

1AE149850000 1AE149850000

Not available

SCREW, PAN HEAD(62X)

985010501000

978850501000

4,00 $

Unit Price

O-RING

1AE142270000 1AE142270000

11,26 $

Unit Price

HOLDER

1AE142610000 1AE142610000

17,46 $

Unit Price

GASKET

1AE142370000 1AE142370000

4,03 $

Unit Price

O-RING

1FN141470000 1FN141470000

25,71 $

Unit Price

SCREW, PAN HEAD(GA5)

985030401400

985800401400

3,88 $

Unit Price

PLUG, DRAIN

12R141910000 12R141910000

7,58 $

Unit Price

JET, PILOT (# 15)

3H1141421500 3H1141421500

12,24 $

Unit Price

..GICLEUR, PRINCIPAL (125)

830142312500 830142312500

Not available

CAP

1HX149910000 1HX149910000

14,67 $

Unit Price

.JEU DE LEVIERS DE STARTER, 1

1UF1490L0000 1UF1490L0000

Not available

STOP SCREW SET

1FN1490K0100 1FN1490K0100

13,29 $

Unit Price

.RACCORD

1HX142510000 1HX142510000

Not available

.RACCORD

16H142510000 16H142510000

Not available

O-RING

36Y141470000 36Y141470000

13,25 $

Unit Price

.DURITE

1AE141970000 1AE141970000

Not available

SCREW, PAN HEAD (646)

985010501200

985800501200

3,17 $

Unit Price

.DURITE

1UF141970000 1UF141970000

Not available

RING

1FN149180000 1FN149180000

7,64 $

Unit Price

.DURITE

1UH141970000 1UH141970000

Not available

CLIP(1JH)

904671110600 904671110600

4,00 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Yamaha FZX750 of 1987. Let us know if you have any questions.
