CAMSHAFT / TIMING CHAIN

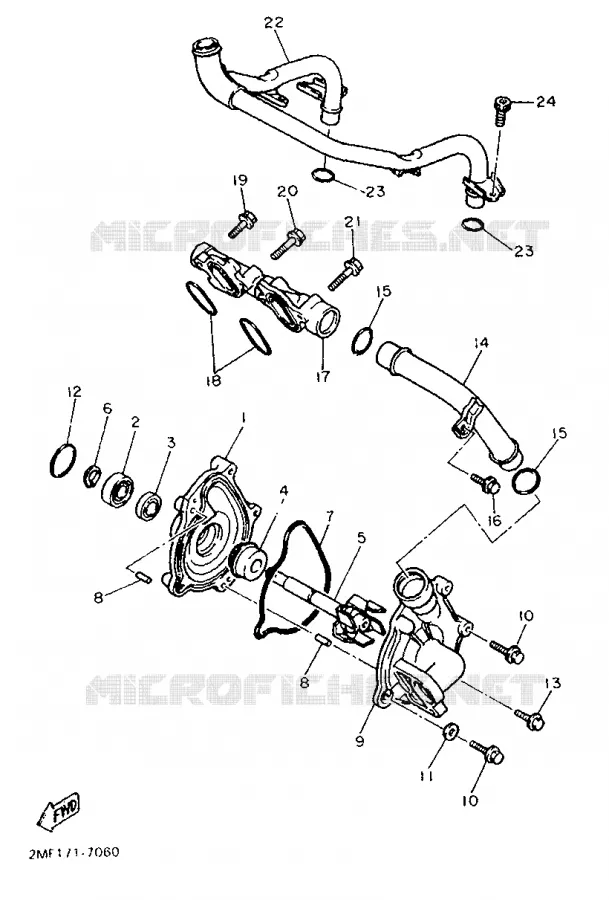

WATERPUMP FOR YAMAHA FZ 1987

RADIATOR / HOSES

WATER PUMP HOUSING

1UF124210000

1UF124210900

117,65 $

Unit Price

BRG, R-B 6001 28MM 28G KY

933060010600

933060010500

24,34 $

Unit Price

OIL SEAL

931011206000

931011217300

15,61 $

Unit Price

SEAL, MECHANICAL

11H124380000

11H124381000

32,07 $

Unit Price

IMPELLER SHAFT ASSY

1UF124500000 1UF124500000

Not available

CIRCLIP(10Y)

990091240000 990091240000

3,59 $

Unit Price

O-RING

1AE124390000 1AE124390000

15,89 $

Unit Price

PIN, DOWEL (603)

936041001100 936041001100

5,10 $

Unit Price

HOUSING COVER

1AE124220000

1AE124220900

176,70 $

Unit Price

BOLT, SMALL FLANGE

950260602500

950270602500

2,49 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

O-RING (626)

932103313300 932103313300

10,38 $

Unit Price

BOLT, SMALL FLANGE

950260605000

950270605000

2,52 $

Unit Price

PIPE 1

1AE124810000

1AE124810100

21,92 $

Unit Price

O-RING(1LT)

932102369200

932102378700

4,00 $

Unit Price

BOLT, FLANGE(4MY)

950260601200

950270601200

2,10 $

Unit Price

JOINT 1

1AE124690100

3DX124690000

152,85 $

Unit Price

O-RING(1AA)

932103069400 932103069400

5,68 $

Unit Price

BOLT, FLANGE(6U1)

950260602000

950270602000

2,46 $

Unit Price

BOLT, FLANGE

950260603000

958170603000

3,91 $

Unit Price

BOLT, SMALL FLANGE

950260604000

950270604000

2,46 $

Unit Price

DURITE 2

1AE124820000 1AE124820000

Not available

O-RING (716)

932101841700 932101841700

6,49 $

Unit Price

BOLT, SOCKET

913160601200

913170601200

5,10 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATERPUMP of your Yamaha FZ750 of 1987. Let us know if you have any questions.
