HANDLEBAR & CABLES

FRONT MASTER CYLINDER FOR YAMAHA RAPTOR 2024

STAND / FOOTREST

Item numbers

MASTER CYLINDER ASSY

5D32583T0200 5D32583T0200

431,16 $

Unit Price

CYLINDER KIT, MASTER

5D3W00410000

5HHW00410000

40,48 $

Unit Price

DIAPHRAGM, RESERVOIR

4TT258540000 4TT258540000

12,17 $

Unit Price

CAP, RESERVOIR

5YU258520000 5YU258520000

36,08 $

Unit Price

SCREW, FLAT

987020401200

987070401200

1,95 $

Unit Price

BRACKET, MASTER CYLINDER

5MV258670000 5MV258670000

23,08 $

Unit Price

BOLT, FITTING

5MV258330000 5MV258330000

3,04 $

Unit Price

LEVER 2

5D3839220100 5D3839220100

88,00 $

Unit Price

NUT, FLANGE(7NB)

957010650000

957800650000

3,18 $

Unit Price

FRONT STOP SWITCH ASSY

5D3839800000 5D3839800000

63,52 $

Unit Price

BOLT, LEVER

3B42589F3000 3B42589F3000

13,98 $

Unit Price

SCREW, PAN HEAD(GA5)

985020401400

985800401400

3,88 $

Unit Price

YBS67-4 WASHER, SPRING

929020410000

929900410000

1,68 $

Unit Price

WASHER, PLAIN (646)

929020460000

929900460000

1,68 $

Unit Price

COLLAR

1UY262590000 1UY262590000

11,07 $

Unit Price

HOSE, BRAKE 1

1PEF58720100 1PEF58720100

24,86 $

Unit Price

HOSE, BRAKE 2

5TG258732100 5TG258732100

194,43 $

Unit Price

PIPE, BRAKE

1PEF58710000 1PEF58710000

16,53 $

Unit Price

BLOT, FLANGE DEEP RECESS

95D320602500 95D320602500

0,55 $

Unit Price

CIRCLIP

2GU258660000 2GU258660000

11,92 $

Unit Price

BOLT, UNION

904011001500 904011001500

7,98 $

Unit Price

WASHER, PLATE(481)

902011011800 902011011800

6,40 $

Unit Price

HOLDER

1AS255220100 1AS255220100

12,69 $

Unit Price

CLAMP 1

5KM816770000 5KM816770000

2,79 $

Unit Price

BOLT

901090624100 901090624100

3,13 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

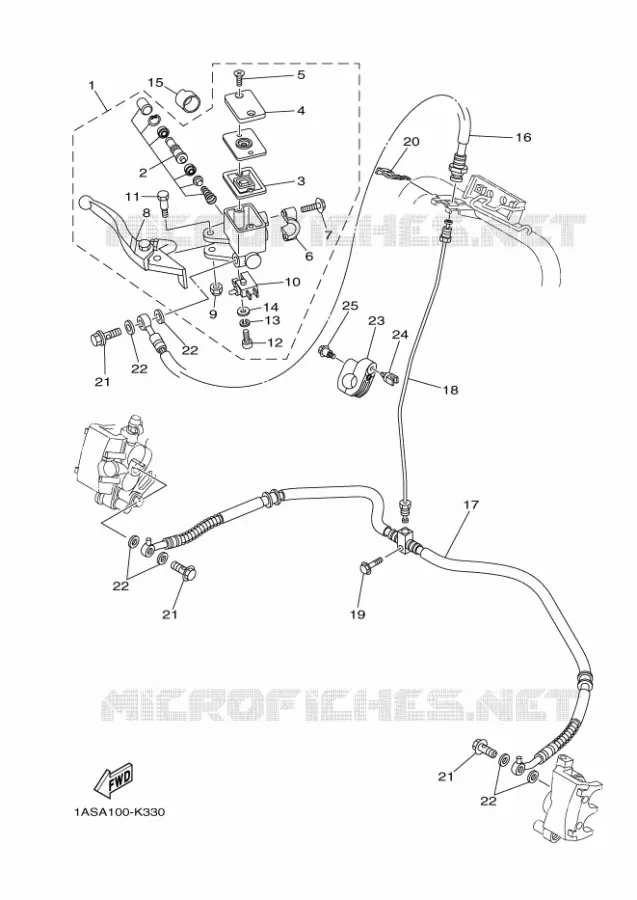

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER of your Yamaha YFM 700 R of 2024. Let us know if you have any questions.
