FRONT BRAKE CALIPER

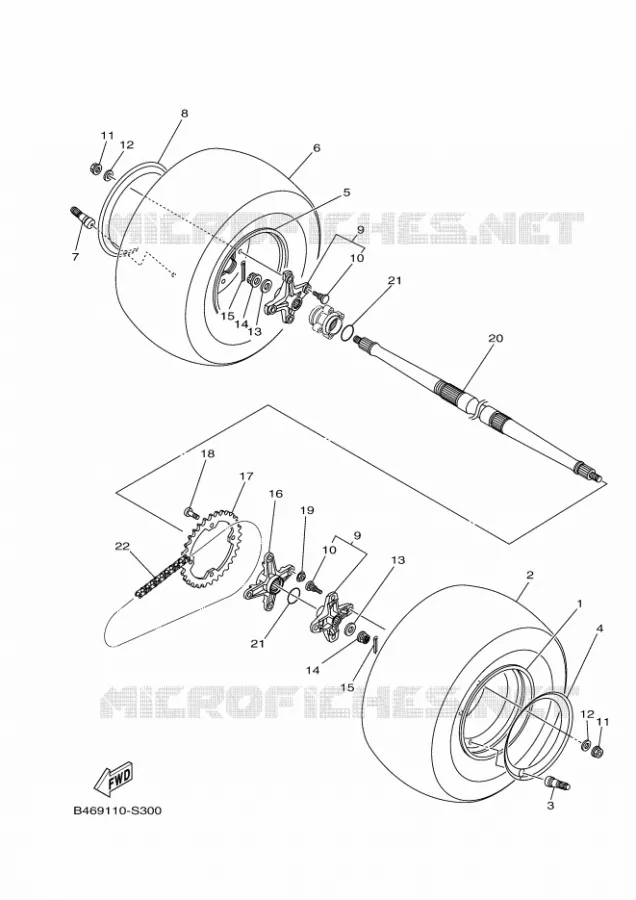

REAR WHEEL FOR YAMAHA RAPTOR 2023

REAR BRAKE CALIPER

Item numbers

WHEEL, REAR

1TDF53901100 1TDF53901100

549,74 $

Unit Price

AT 20 X 10-9 M976Y

941100980100 941100980100

352,42 $

Unit Price

VALVE, RIM

939000081300

939000081200

11,15 $

Unit Price

GRAPHIC 2

BFKF51G23000 BFKF51G23000

Not available

WHEEL, REAR

1TDF53901100 1TDF53901100

549,74 $

Unit Price

AT 20 X 10-9 M976Y

941100980100 941100980100

352,42 $

Unit Price

VALVE, RIM

939000081300

939000081200

11,15 $

Unit Price

GRAPHIC 2

BFKF51G23000 BFKF51G23000

Not available

WHEEL SHAFT COLLAR ASSY.

1PEF53K00000 1PEF53K00000

136,05 $

Unit Price

BOLT, SERRATION

901141002000 901141002000

5,19 $

Unit Price

NUT, FLANGE(3BM)

957021050000

957041050000

3,47 $

Unit Price

958-69527-00 WASHER, PLAIN

929021020000

929901020000

3,94 $

Unit Price

WASHER, PLATE

902011602300 902011602300

10,17 $

Unit Price

NUT, CASTLE

901711600200 901711600200

27,30 $

Unit Price

PIN, COTTER

902520300100 902520300100

0,44 $

Unit Price

COLLAR, SPROCKET A

1PEF53860000 1PEF53860000

171,06 $

Unit Price

SPROCKET, DRIVEN (38T)

5TG254381000 5TG254381000

66,54 $

Unit Price

BOLT

901091001300 901091001300

9,09 $

Unit Price

NUT, SELF-LOCKING

901851081800 901851081800

3,08 $

Unit Price

AXLE, WHEEL

BFKF53810100 BFKF53810100

664,51 $

Unit Price

O-RING(2TY)

932103676900 932103676900

14,51 $

Unit Price

CHAIN (DID520VP2-T

94568H609800 94568H609800

158,36 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
