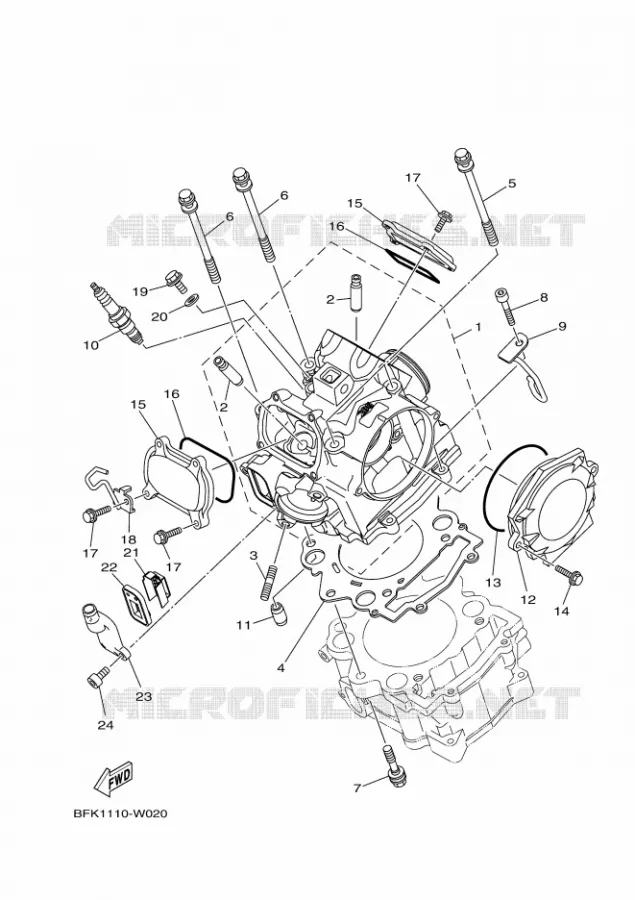

CYLINDER HEAD FOR YAMAHA RAPTOR 2023

CYLINDER

Item numbers

CYLINDER HEAD ASSY

2LS111010800 2LS111010800

1 370,78 $

Unit Price

GUIDE, INTAKE VALVE

4G0111331100 4G0111331100

54,57 $

Unit Price

BOLT, STUD

956120862500 956120862500

5,01 $

Unit Price

GASKET, CYLINDER HEAD 1

3B4111810000 3B4111810000

54,38 $

Unit Price

BOLT

901090900300 901090900300

13,52 $

Unit Price

BOLT

901090900200 901090900200

13,52 $

Unit Price

BOLT

901090900500 901090900500

11,34 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1VJ)

913120603000

901100613800

5,60 $

Unit Price

HOLDER

BFK113950000 BFK113950000

25,25 $

Unit Price

SPARK PLUG CR8E

947010033000

NGKCR8E01000

9,87 $

Unit Price

PIN, DOWEL(4XL)

936121625400 936121625400

6,52 $

Unit Price

COVER, CYLINDER HEAD SIDE 3

1S3111851000 1S3111851000

122,50 $

Unit Price

O-RING (70R)

932109660100 932109660100

16,28 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

COVER, CYLINDER HEAD SIDE 2

1S3111860000 1S3111860000

29,43 $

Unit Price

O-RING (14X)

932107854400 932107854400

16,42 $

Unit Price

BOLT, FLANGE

950220602000 950220602000

1,27 $

Unit Price

HOLDER 1

1S31131E0000 1S31131E0000

19,46 $

Unit Price

BOLT, UNION

904010800400 904010800400

9,15 $

Unit Price

GASKET

904300811900 904300811900

2,19 $

Unit Price

PLATE

2BG1482K0000 2BG1482K0000

22,40 $

Unit Price

REED VALVE ASS

5JW148900000 5JW148900000

65,93 $

Unit Price

CAP, CASE

5JW148890000 5JW148890000

91,03 $

Unit Price

BOLT

901100617500

913120602000

4,00 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
