WATERPUMP / HOSES FOR YAMAHA RAPTOR 2022

RADIATOR / HOSES

Item numbers

GEAR, DRIVE

1S3124360000 1S3124360000

65,23 $

Unit Price

WATER PUMP ASSY

1S3124200000 1S3124200000

406,20 $

Unit Price

IMPELLER SHAFT ASSY

1S3124500000 1S3124500000

61,73 $

Unit Price

COVER, HOUSING

1S3124220000 1S3124220000

75,65 $

Unit Price

O-RING(2HT)

932106175000 932106175000

10,11 $

Unit Price

BRG, R-B 6001 28MM 28G KY

933060010600

933060010500

24,34 $

Unit Price

HOUSING, WATER PUMP

1S3124210000 1S3124210000

96,13 $

Unit Price

BOLT, FLANGE

950220602500 950220602500

1,47 $

Unit Price

OIL SEAL

931011217300 931011217300

15,61 $

Unit Price

SEAL, MECHANICAL

4C8124380000 4C8124380000

56,00 $

Unit Price

WASHER, PLATE (525)

902011254100 902011254100

6,54 $

Unit Price

GASKET, HOUSING COVER 2

1S3124280000 1S3124280000

12,12 $

Unit Price

GASKET 256113960000

904300601400 904300601400

5,45 $

Unit Price

PIN, DOWEL(1HX)

936031621900 936031621900

3,81 $

Unit Price

GEAR, IMPELLER SHAFT

5VK124590000 5VK124590000

44,10 $

Unit Price

CIRCLIP(10Y)

990091240000 990091240000

3,59 $

Unit Price

CLIP(MG5)

904671306200

904671411700

0,94 $

Unit Price

JOINT 1

1S3124690000 1S3124690000

23,03 $

Unit Price

BOLT

913120602000 913120602000

4,00 $

Unit Price

O-RING

932103300600 932103300600

11,27 $

Unit Price

HOSE 2

1S3125770000 1S3125770000

16,73 $

Unit Price

HOSE CLAMP ASSY

904503201500 904503201500

19,89 $

Unit Price

BOLT, FLANGE

950220605000 950220605000

2,06 $

Unit Price

BOLT, FLANGE

950220611000 950220611000

2,92 $

Unit Price

HOSE CLAMP ASSY

904503201500 904503201500

19,89 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

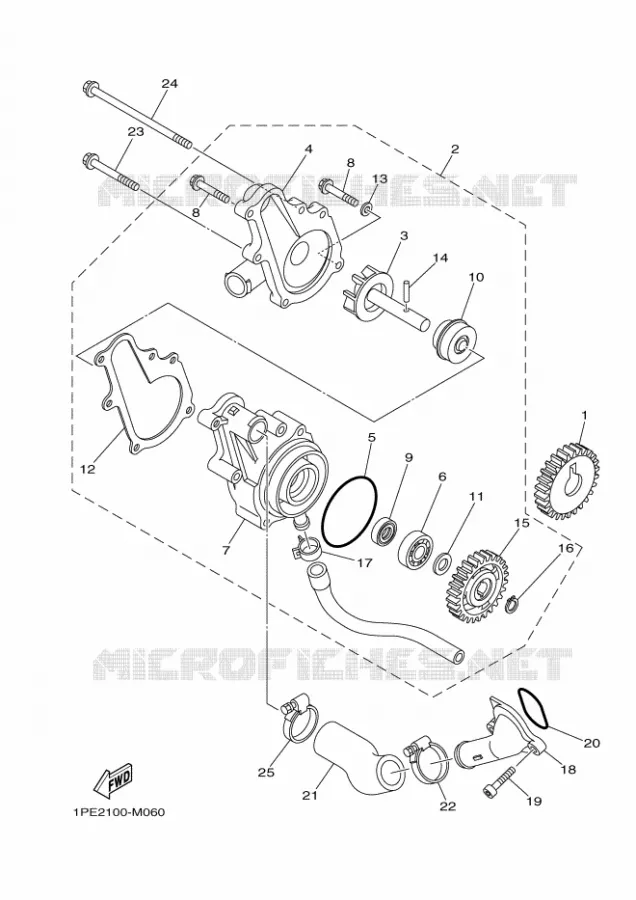

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATERPUMP / HOSES of your Yamaha RAPTOR 700R SE of 2022. Let us know if you have any questions.
