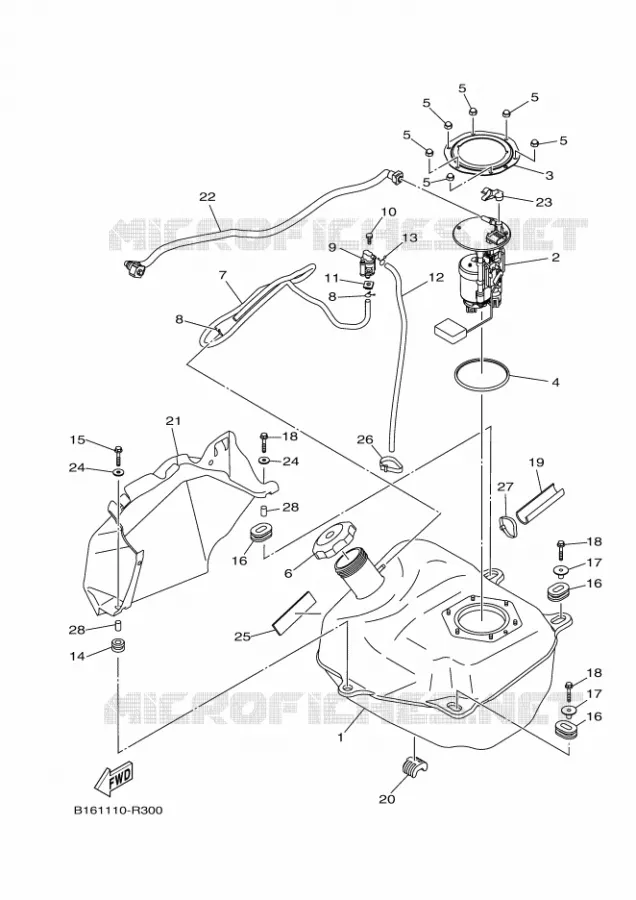

FUEL TANK FOR YAMAHA KODIAK 2021

SEAT

Item numbers

FUEL TANK COMP.

B16F41100000 B16F41100000

376,75 $

Unit Price

FUEL PUMP COMP.

B16139070300 B16139070300

966,95 $

Unit Price

BRACKET, FUEL PUMP

3B4244910000 3B4244910000

15,10 $

Unit Price

O-RING

1S3244860000 1S3244860000

17,18 $

Unit Price

NUT (J17)

953020680000

953800680000

7,74 $

Unit Price

CAP ASSY

2P5246100000

BVG246100000

76,58 $

Unit Price

HOSE (L1030)

904450982900 904450982900

32,00 $

Unit Price

CLIP

904670900600

90467090A200

1,47 $

Unit Price

PIPE JOINT ASSY

28P243800000 28P243800000

33,36 $

Unit Price

BOLT, HEXAGON DEEP RECESS

970020601600

97D950601600

1,96 $

Unit Price

NUT, SPRING

90183061A300 90183061A300

7,09 $

Unit Price

HOSE (L470)

904450983900 904450983900

12,41 $

Unit Price

CLIP

904670900600

90467090A200

1,47 $

Unit Price

GROMMET (4V1)

904801829000 904801829000

10,14 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D320603500 95D320603500

0,76 $

Unit Price

GROMMET(38W)

904800140000 904800140000

15,10 $

Unit Price

COLLAR

903870702100 903870702100

5,29 $

Unit Price

BOLT, FLANGE DEEP RECESS

95D320603500 95D320603500

0,76 $

Unit Price

DAMPER, LOCATING 2

B16F41820100 B16F41820100

7,54 $

Unit Price

DAMPER, LOCATING 1

B16F41810000 B16F41810000

6,43 $

Unit Price

PROTECTOR, FUEL TA

B16F41410000 B16F41410000

16,49 $

Unit Price

PIPE, FUEL 1

B16139710100 B16139710100

192,07 $

Unit Price

CLAMP

904641400400 904641400400

11,10 $

Unit Price

WASHER, PLATE

902010603600 902010603600

0,65 $

Unit Price

DAMPER 1

2PA215410000 2PA215410000

2,70 $

Unit Price

CLAMP

904642500300 904642500300

1,99 $

Unit Price

CLAMP

904643280100 904643280100

2,44 $

Unit Price

COLLAR(6H4)

9038706M1900 9038706M1900

4,13 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
