REAR FENDER

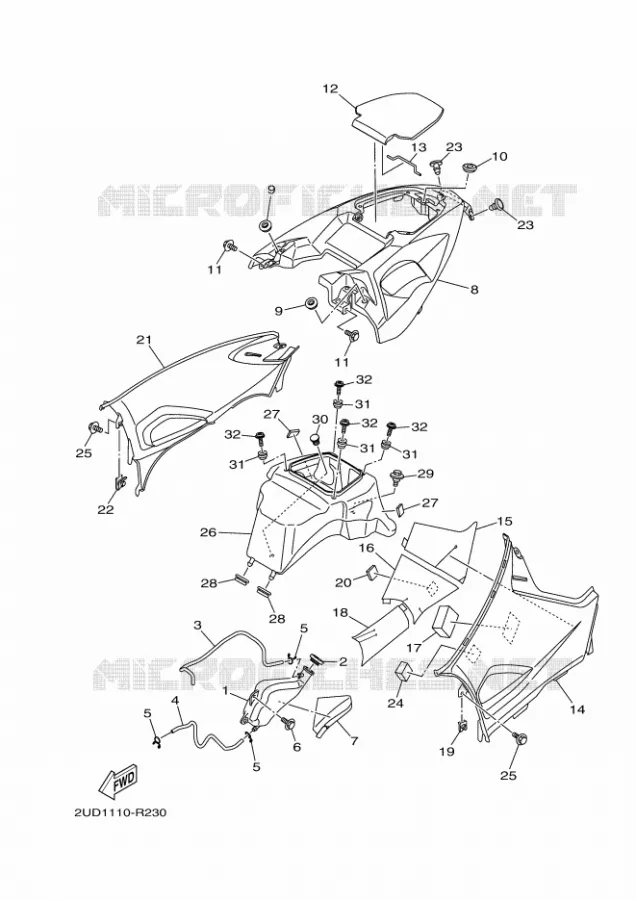

SIDE COVER FOR YAMAHA GRIZZLY 2021

SWINGARM

Item numbers

TANK, RECOVERY

1HPF18710100 1HPF18710100

21,65 $

Unit Price

CAP

1S3218750000 1S3218750000

12,12 $

Unit Price

HOSE

904450884100 904450884100

3,86 $

Unit Price

HOSE

904450884000 904450884000

2,20 $

Unit Price

CLIP 101235600

904670800300 904670800300

5,61 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

PLATE

1HPF176E0000 1HPF176E0000

6,94 $

Unit Price

TOP COVER COMP.

B4FF171C0000 B4FF171C0000

Not available

GROMMET(4FU)

904801356700 904801356700

9,17 $

Unit Price

GROMMET(4DN)

904800155800 904800155800

12,86 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

LID COVER COMP.

B4FF17P00000 B4FF17P00000

Not available

PIN, HINGE

3B42177K0000 3B42177K0000

14,57 $

Unit Price

SIDE COVER COMP. 1

B4FF17E00000 B4FF17E00000

379,19 $

Unit Price

INSULATOR, SIDE COVER

B16F174A0100

B16F174A0200

9,82 $

Unit Price

SEAL 4

B16F173N0100

B16F173N0200

32,13 $

Unit Price

DAMPER

3B42174Y0000 3B42174Y0000

8,88 $

Unit Price

SEAL 3

B16F173M0100

B16F173M0200

10,71 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

DAMPER, LOCATING 4

3B42177N0000

3B42177N0100

25,65 $

Unit Price

SIDE COVER COMP. 2

B4FF17F00000 B4FF17F00000

379,19 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

RIVET

902690701000 902690701000

3,82 $

Unit Price

DAMPER, PLATE

905205080000 905205080000

10,28 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

BOX

B16F177A0100 B16F177A0100

79,24 $

Unit Price

DAMPER, PLATE

905201002700 905201002700

1,98 $

Unit Price

GROMMET(4DN)

904800155800 904800155800

12,86 $

Unit Price

BOLT

901090620200 901090620200

3,34 $

Unit Price

PLUG, BLIND

90605502U100 90605502U100

4,52 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

SCREW, WITH WASHER

901590505300 901590505300

0,66 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
