REAR SHOCK ABSORBER

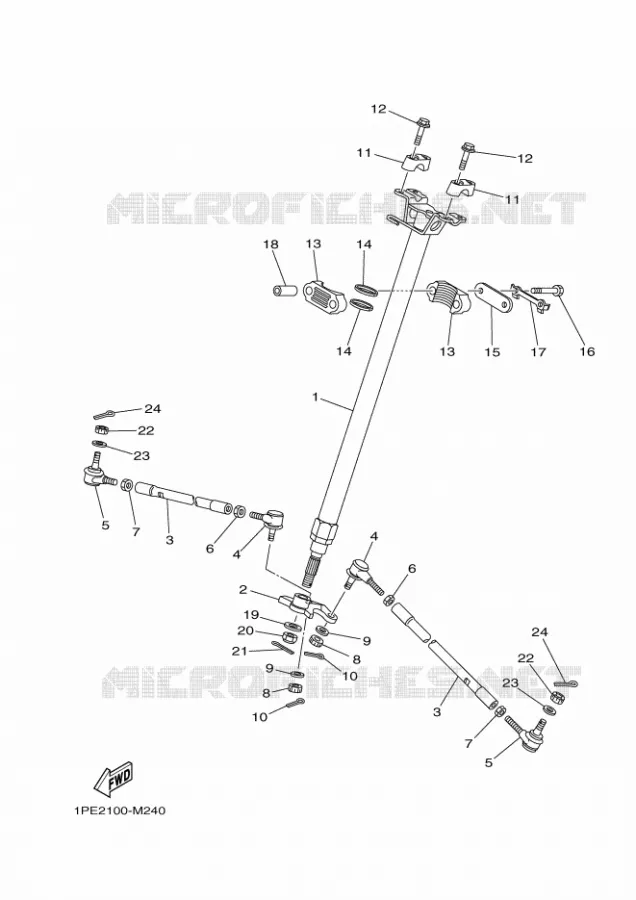

STEERING FOR YAMAHA RAPTOR 2020

FRONT SUSPENSION / WHEEL

Item numbers

COLUMN, STEERING 2

1PEF38130000 1PEF38130000

267,02 $

Unit Price

ARM, PITMAN

1PEF38160000 1PEF38160000

84,40 $

Unit Price

ROD, TIE

1PD238310000 1PD238310000

64,52 $

Unit Price

JOINT, UNIVERSAL 1

1S3238412000 1S3238412000

68,45 $

Unit Price

JOINT, UNIVERSAL 2

1S3238452000 1S3238452000

71,59 $

Unit Price

NUT, HEXAGON SMALL

901701205500

953171270000

4,42 $

Unit Price

NUT (821-23834-00)

901701205400 901701205400

4,23 $

Unit Price

NUT, CASTLE

901711000100 901711000100

4,23 $

Unit Price

WASHER (25G)

902091022900 902091022900

2,78 $

Unit Price

PIN, COTTER

914022002000

914902002500

3,75 $

Unit Price

HOLDER, HANDLE UPPER

8K1238140000

1E6234410000

27,38 $

Unit Price

BOLT, FLANGE(6TA)

958220803000

958170803000

4,16 $

Unit Price

PLANE BEARING, STE

37SF38120000 37SF38120000

10,40 $

Unit Price

OIL SEAL

931123180000 931123180000

2,45 $

Unit Price

BRACKET, STEERING

1PEF38680000 1PEF38680000

18,62 $

Unit Price

BOLT, HEXAGON

970220806000

970170806000

6,83 $

Unit Price

WASHER, LOCK 1

1UY238940100 1UY238940100

3,29 $

Unit Price

COLLAR(85G)

90387090R000

90387106T400

16,16 $

Unit Price

WASHER, PLATE

902011402100 902011402100

6,52 $

Unit Price

NUT, SELF-LOCKING

901851400900 901851400900

14,13 $

Unit Price

PIN, COTTER

914022002500

914902003500

4,30 $

Unit Price

NUT, CASTLE

901711000100 901711000100

4,23 $

Unit Price

WASHER (25G)

902091022900 902091022900

2,78 $

Unit Price

PIN, COTTER

914022002000

914902002500

3,75 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING of your Yamaha YFM 700R RAPTOR of 2020. Let us know if you have any questions.
