REAR WHEEL

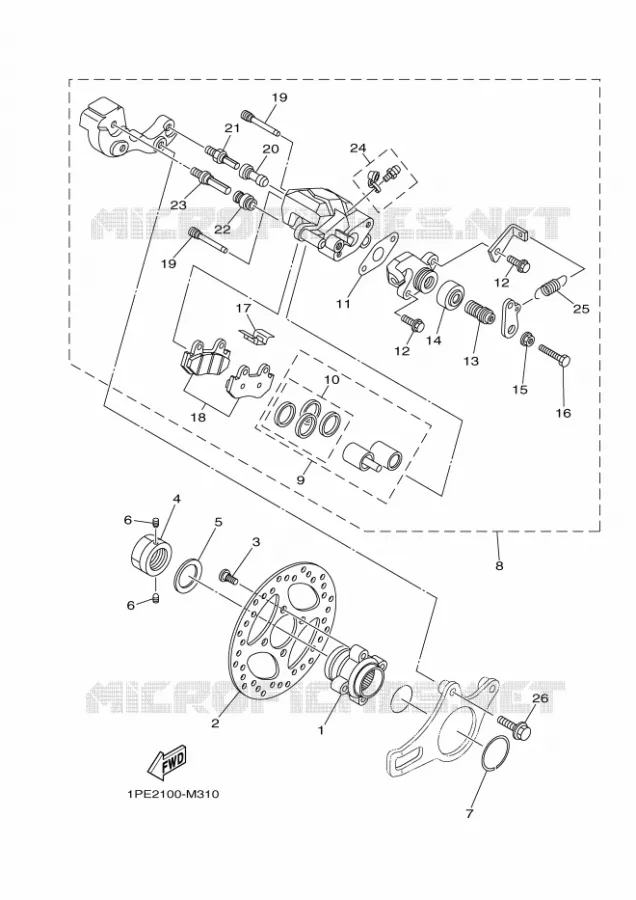

REAR BRAKE CALIPER FOR YAMAHA RAPTOR 2017

HANDLEBAR & CABLES

Item numbers

BRACKET, DISC

1PEF57120000 1PEF57120000

170,76 $

Unit Price

DISK, REAR BRAKE 2

1PEF582W0000 1PEF582W0000

92,69 $

Unit Price

BOLT

901090807600

901090807700

4,94 $

Unit Price

NUT

901793600300 901793600300

51,70 $

Unit Price

WASHER, CONICAL SPRING

902083700100 902083700100

12,77 $

Unit Price

BOLT, SET (8K2)

901130605500

901130603900

3,50 $

Unit Price

CIRCLIP

1S3254150000 1S3254150000

2,09 $

Unit Price

CALIPER ASSY, REAR 2

5TG2580W2100 5TG2580W2100

631,83 $

Unit Price

PISTON ASSY, CALIPER

5TGW00571000 5TGW00571000

124,27 $

Unit Price

CALIPER SEAL KIT

5TGW00470000 5TGW00470000

33,16 $

Unit Price

RUBBER, BUSHING

5TG259750000 5TG259750000

11,91 $

Unit Price

BOLT, FITTING

5UG258330000 5UG258330000

3,73 $

Unit Price

SHAFT L

5TG259780000 5TG259780000

74,40 $

Unit Price

BOOT

1UY259745100 1UY259745100

3,29 $

Unit Price

NUT

1UY259735100 1UY259735100

1,60 $

Unit Price

ADJUSTBOLT

5TG259720000 5TG259720000

7,53 $

Unit Price

SPRING, PAD

3LD259340100 3LD259340100

32,04 $

Unit Price

BRAKE PAD KIT 2

5TGW00461000 5TGW00461000

60,20 $

Unit Price

PIN, PAD

5DH259330000 5DH259330000

23,50 $

Unit Price

BOOT 2

1UY259375100 1UY259375100

15,78 $

Unit Price

BOLT

3SP259145100 3SP259145100

6,63 $

Unit Price

BOOT, CALIPER

3JD259170000 3JD259170000

10,59 $

Unit Price

BOLT

3SP259265100 3SP259265100

15,65 $

Unit Price

BLEED SCREW KIT

1UYW00485000

36YW00480000

23,50 $

Unit Price

SPRING, RETURN

5TG259775000 5TG259775000

4,26 $

Unit Price

BOLT, FLANGE

901051040500 901051040500

7,83 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
