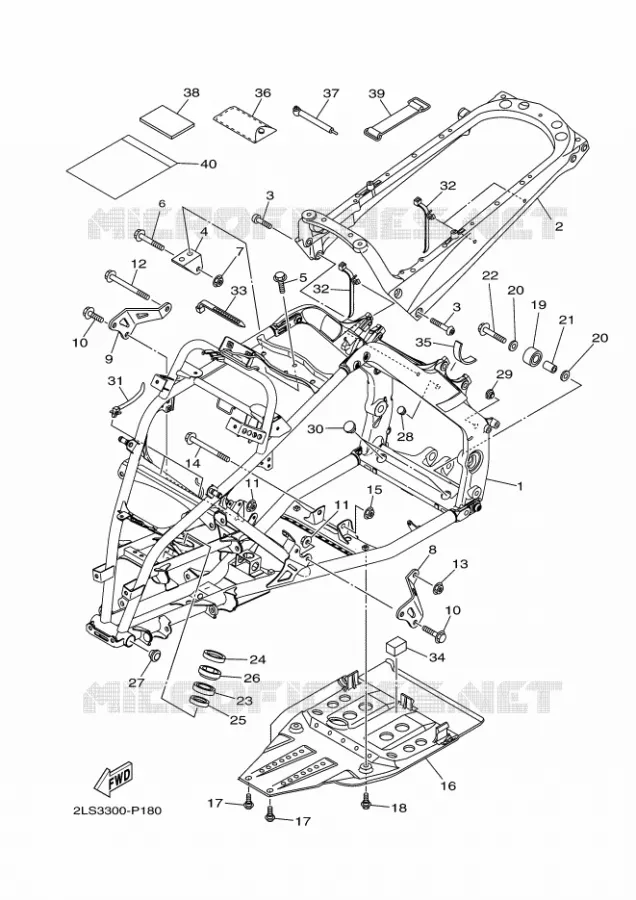

FRAME FOR YAMAHA RAPTOR 2017

FRONT FENDER

Item numbers

FRONT FRAME COMP.

2LSF11012900 2LSF11012900

3 086,60 $

Unit Price

FRONT FRAME COMP.

2LSF11015900 2LSF11015900

4 360,92 $

Unit Price

REAR FRAME COMP.

1S3211903800 1S3211903800

1 071,88 $

Unit Price

REAR FRAME COMP.

2LSF11907800 2LSF11907800

519,06 $

Unit Price

SCREW

901491003400 901491003400

7,23 $

Unit Price

STAY, ENGINE 2

1S3213151000 1S3213151000

11,59 $

Unit Price

BOLT, FLANGE

901050814200 901050814200

3,59 $

Unit Price

BOLT, FLANGE(87Y)

958121005500

958171005500

6,71 $

Unit Price

NUT, SELF-LOCKING

901851001100 901851001100

9,15 $

Unit Price

STAY, ENGINE 3

1S3213161000 1S3213161000

16,84 $

Unit Price

STAY, ENGINE 3

1S3213171000 1S3213171000

17,90 $

Unit Price

BOLT, FLANGE

901050814200 901050814200

3,59 $

Unit Price

NUT(4KM)

901790867400 901790867400

5,17 $

Unit Price

BOLT, FLANGE

958121011000 958121011000

8,11 $

Unit Price

NUT, SELF-LOCKING

901851001100 901851001100

9,15 $

Unit Price

95812-10090

958121009000 958121009000

7,09 $

Unit Price

NUT, SELF-LOCKING

901851001100 901851001100

9,15 $

Unit Price

PROTECTOR, ENGINE

1PEF14710000 1PEF14710000

62,82 $

Unit Price

BOLT

901090620100 901090620100

7,71 $

Unit Price

BOLT

901090617200 901090617200

2,18 $

Unit Price

TENSIONER

4D3221780000 4D3221780000

14,57 $

Unit Price

WASHER, PLATE

902010805300 902010805300

4,39 $

Unit Price

BUSH, SOLID(38V)

903800813600 903800813600

8,56 $

Unit Price

BOLT, FLANGE(JN5)

958120804500

958170804500

4,30 $

Unit Price

BEARING

933062035200 933062035200

26,16 $

Unit Price

OIL SEAL (25X44X6-810)

931022508100 931022508100

15,37 $

Unit Price

OIL SEAL (25X36X8-334)

931022509900 931022509900

17,11 $

Unit Price

HOLDER, BEARING

5GT238720000

2GU238720000

27,41 $

Unit Price

PLUG

903382600400 903382600400

9,16 $

Unit Price

PLUG

903382426000 903382426000

5,38 $

Unit Price

PLUG(2AK)

903382018300 903382018300

13,80 $

Unit Price

PLUG

903382300400 903382300400

6,67 $

Unit Price

CLAMP

5B4F13380000 5B4F13380000

3,83 $

Unit Price

CLAMP(4KJ)

904642021300 904642021300

4,43 $

Unit Price

BAND, SWITCH CORD

904641204500

25G839360100

6,05 $

Unit Price

DAMPER, STOPPER

1S32140A0000 1S32140A0000

3,45 $

Unit Price

DAMPER, LOCATING 1

1JK216390000

4X4241810000

4,69 $

Unit Price

TOOL KIT

1PEF81000100 1PEF81000100

22,22 $

Unit Price

GAUGE, AIR

1NV2811A0100 1NV2811A0100

55,02 $

Unit Price

BAND, BATTERY

116821310000 116821310000

20,81 $

Unit Price

POUCH

1P0F81860100 1P0F81860100

4,21 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
