CYLINDER

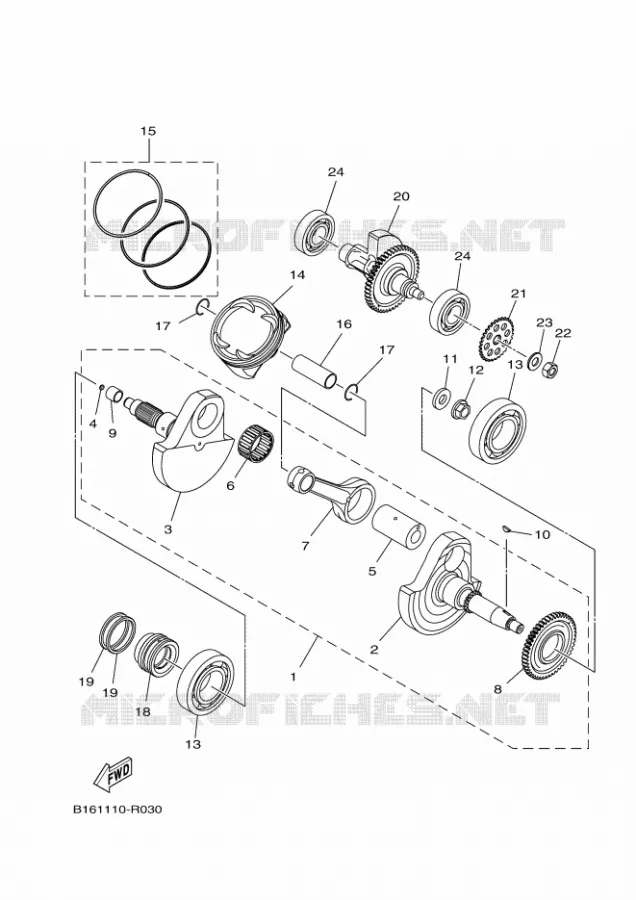

CRANKSHAFT / PISTON FOR YAMAHA KODIAK 2017

VALVE

Item numbers

CRANKSHAFT ASSY

2MBE14000000 2MBE14000000

1 195,85 $

Unit Price

CRANK 1

2MBE14121000 2MBE14121000

815,11 $

Unit Price

CRANK 2

2MBE14221000 2MBE14221000

821,25 $

Unit Price

PLUG, CRANK

2MBE14460000 2MBE14460000

2,95 $

Unit Price

PIN, CRANK 1

2MBE16811000 2MBE16811000

256,99 $

Unit Price

BEARING ASSY 1

2MBE14150000 2MBE14150000

280,27 $

Unit Price

ROD, CONNECTING

2MBE16511000 2MBE16511000

Not available

GEAR, DRIVE

2MBE15360000 2MBE15360000

412,20 $

Unit Price

RACE, INNER

2MBG61220000 2MBG61220000

26,14 $

Unit Price

KEY, WOODRUFF

2MBE15450000 2MBE15450000

4,22 $

Unit Price

WASHER 1

2MBE15570000 2MBE15570000

25,62 $

Unit Price

NUT, CRANKSHAFT 1

2MBE15550000 2MBE15550000

6,49 $

Unit Price

BEARING ASSY 2

2MBE14250000 2MBE14250000

236,74 $

Unit Price

PISTON (STD)

2MBE16310000 2MBE16310000

186,75 $

Unit Price

PISTON (0.25MM O-S

2MBE16350000 2MBE16350000

198,43 $

Unit Price

PISTON (0.50MM O-S

2MBE16360000 2MBE16360000

214,23 $

Unit Price

PISTON RING SET (STD)

2MBE16030000

2MBE16031000

135,35 $

Unit Price

PISTON RING SET (0.25MM O-S)

2MBE16040000

2MBE16041000

140,99 $

Unit Price

PISTON RING SET (0.50MM O-S)

2MBE16050000

2MBE16051000

135,99 $

Unit Price

PIN, PISTON

2MBE16330000

2MBE16331000

91,25 $

Unit Price

CLIP, PISTON PIN

2MBE16340000 2MBE16340000

0,42 $

Unit Price

SPACER 1

2MBE61810000 2MBE61810000

240,53 $

Unit Price

SEAL, CRANK

2MBE14470000

3B4114470000

37,24 $

Unit Price

BALANCER ASSY

2MBE15000000 2MBE15000000

677,18 $

Unit Price

SPROCKET, DRIVE

2MBE33540000 2MBE33540000

24,46 $

Unit Price

NUT, SPECIAL

2MBE14590000 2MBE14590000

2,39 $

Unit Price

WASHER, WEIGHT 1

2MBE14830000 2MBE14830000

1,74 $

Unit Price

BEARING ASSY 3

2MBE14360000 2MBE14360000

79,47 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
