FRAME

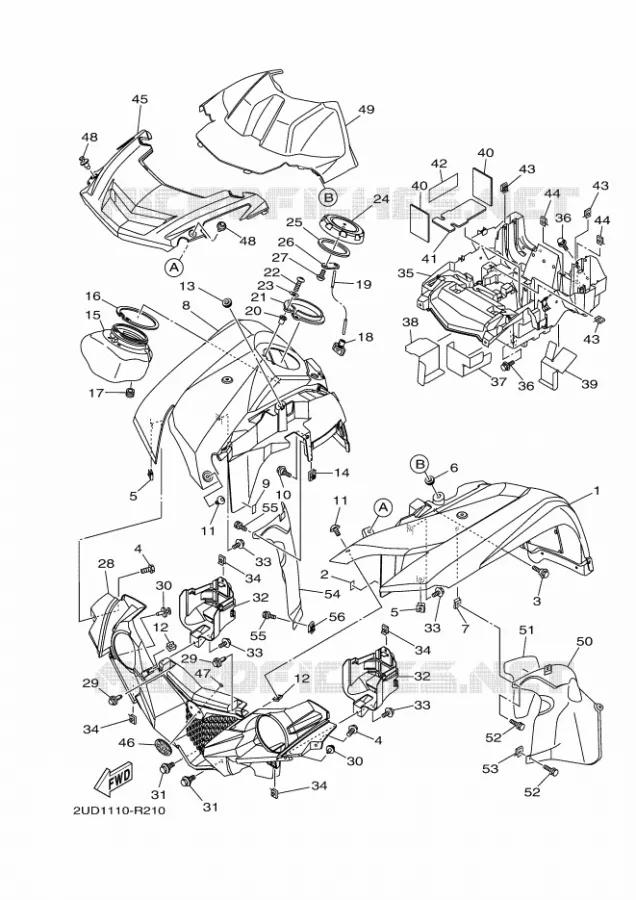

FRONT FENDER FOR YAMAHA GRIZZLY 2017

REAR FENDER

Item numbers

GARDE BOUE AV

2UDF15004000 2UDF15004000

Not available

DAMPER 1

3B4215410000 3B4215410000

1,73 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

BOLT, WITH WASHER

901190615900 901190615900

3,10 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

GROMMET

904801339800

904801301400

4,52 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

FENDER, FRONT 2

2UDF15561000 2UDF15561000

200,63 $

Unit Price

DAMPER 1

3B4215410000 3B4215410000

1,73 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110681400

901110613600

2,23 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

GROMMET

904801339800

904801301400

4,52 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

BOX 1

1HPF838K0000 1HPF838K0000

35,85 $

Unit Price

SEAL, BOX 1

3B42838M0000 3B42838M0000

15,98 $

Unit Price

GROMMET

904801300400 904801300400

6,08 $

Unit Price

PLUG, DRAIN

3B4215A10000 3B4215A10000

11,92 $

Unit Price

STOPPER, OPEN

3B42845L0000 3B42845L0000

6,49 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

HOLDER

3B42839N0000

3B42839N0100

7,78 $

Unit Price

SCREW, PAN HEAD(JJ6)

985020501600

985070501600

2,23 $

Unit Price

WASHER(1RW)

929020560000

929070560000

2,13 $

Unit Price

CAP

1HPF151B0000 1HPF151B0000

15,71 $

Unit Price

SEAL

3B4283070000 3B4283070000

8,08 $

Unit Price

PLATE 2

3B4284870000 3B4284870000

2,19 $

Unit Price

SCREW, TAPPING (GLOVE BOX)

901640580000 901640580000

2,87 $

Unit Price

GRILLE, FRONT

2UDF83090000 2UDF83090000

66,73 $

Unit Price

RIVET

902690701000 902690701000

3,82 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

COVER, HEADLIGHT

2UDF838E0000 2UDF838E0000

20,11 $

Unit Price

BOLT, WITH WASHER(3RB)

901190519300 901190519300

1,68 $

Unit Price

NUT, SPRING

90183051A000 90183051A000

3,59 $

Unit Price

BOX, BATTERY 1

1HPH212B0100

1HPH212B0200

59,23 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

INSULATOR 1

1HPH253E0000

1HPH253E0100

14,71 $

Unit Price

INSULATOR 2

1HPH253F0000 1HPH253F0000

8,82 $

Unit Price

INSULATOR

1HPH254E0000 1HPH254E0000

5,04 $

Unit Price

INSU.

3B48233W1000 3B48233W1000

2,76 $

Unit Price

SEAT, BATTERY

3B4821220000 3B4821220000

16,02 $

Unit Price

DAMPER

1HPH21760000

1HPH21760100

3,41 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

NUT, SPRING

901830500800 901830500800

2,93 $

Unit Price

PANEL, FRONT

2UDF33911000 2UDF33911000

80,97 $

Unit Price

TUNING FORK MARK

2UDF175B0000 2UDF175B0000

34,70 $

Unit Price

NUT, SPRING(JA3)

901830607100 901830607100

0,80 $

Unit Price

RIVET

902690701000 902690701000

3,82 $

Unit Price

PANEL, ACCESSORY

B16F839R0000 B16F839R0000

45,68 $

Unit Price

FENDER, INNER

1HPF15520000 1HPF15520000

12,79 $

Unit Price

SEAL 1

1HPF15750000

1HPF15750100

5,60 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

FENDER, INNER 2

1HPF15530000 1HPF15530000

36,28 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
