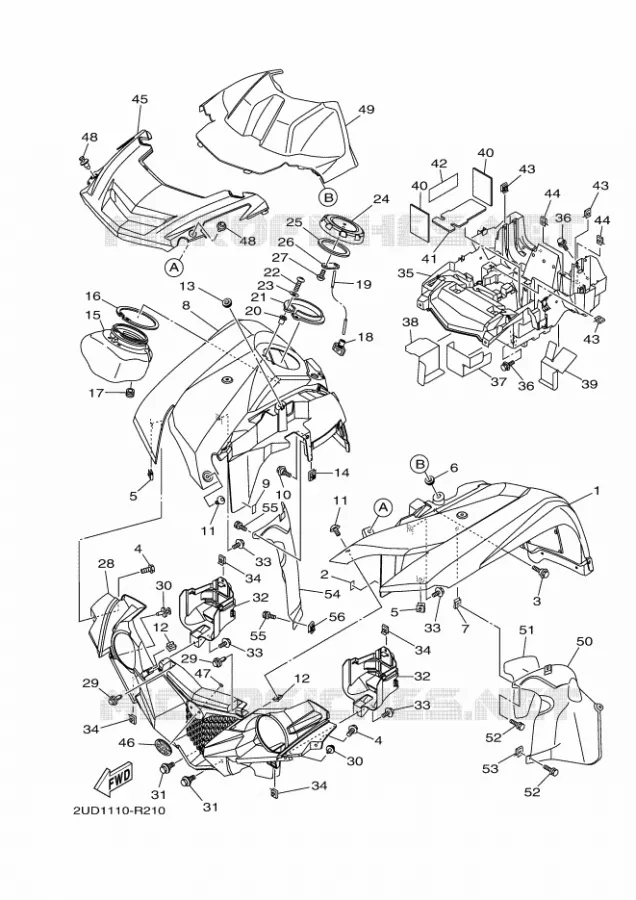

FRAME

FRONT FENDER FOR YAMAHA GRIZZLY 2016

REAR FENDER

Item numbers

GARDE BOUE AV

2UDF1500G000 2UDF1500G000

Not available

DAMPER 1

3B4215410000 3B4215410000

1,73 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

BOLT, WITH WASHER

901190615900 901190615900

3,10 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

GROMMET

904801339800

904801301400

4,52 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

FRONT FENDER COMP.

2UDF15013000 2UDF15013000

196,31 $

Unit Price

DAMPER 1

3B4215410000 3B4215410000

1,73 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110681400

901110613600

2,23 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

GROMMET

904801339800

904801301400

4,52 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

BOX 1

1HPF838K0000 1HPF838K0000

35,85 $

Unit Price

SEAL, BOX 1

3B42838M0000 3B42838M0000

15,98 $

Unit Price

GROMMET

904801300400 904801300400

6,08 $

Unit Price

PLUG, DRAIN

3B4215A10000 3B4215A10000

11,92 $

Unit Price

STOPPER, OPEN

3B42845L0000 3B42845L0000

6,49 $

Unit Price

NUT(1KT)

901790552300 901790552300

8,74 $

Unit Price

HOLDER

3B42839N0000

3B42839N0100

7,78 $

Unit Price

SCREW, PAN HEAD(JJ6)

985020501600

985070501600

2,23 $

Unit Price

WASHER(1RW)

929020560000

929070560000

2,13 $

Unit Price

CAP

1HPF151B0000 1HPF151B0000

15,71 $

Unit Price

SEAL

3B4283070000 3B4283070000

8,08 $

Unit Price

PLATE 2

3B4284870000 3B4284870000

2,19 $

Unit Price

SCREW, TAPPING (GLOVE BOX)

901640580000 901640580000

2,87 $

Unit Price

GRILLE, FRONT

2UDF83090000 2UDF83090000

66,73 $

Unit Price

RIVET

902690701000 902690701000

3,82 $

Unit Price

RIVET

902690608100 902690608100

3,65 $

Unit Price

BOLT

901090604300 901090604300

3,25 $

Unit Price

COVER, HEADLIGHT

2UDF838E0000 2UDF838E0000

20,11 $

Unit Price

BOLT, WITH WASHER(3RB)

901190519300 901190519300

1,68 $

Unit Price

NUT, SPRING

90183051A000 90183051A000

3,59 $

Unit Price

BOX, BATTERY 1

1HPH212B0100

1HPH212B0200

59,23 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

INSULATOR 1

1HPH253E0000

1HPH253E0100

14,71 $

Unit Price

INSULATOR 2

1HPH253F0000 1HPH253F0000

8,82 $

Unit Price

INSULATOR

1HPH254E0000 1HPH254E0000

5,04 $

Unit Price

INSU.

3B48233W1000 3B48233W1000

2,76 $

Unit Price

SEAT, BATTERY

3B4821220000 3B4821220000

16,02 $

Unit Price

DAMPER

1HPH21760000

1HPH21760100

3,41 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

NUT, SPRING

901830500800 901830500800

2,93 $

Unit Price

FRONT PANEL COMP.

2UDF330D3000 2UDF330D3000

303,42 $

Unit Price

TUNING FORK MARK

2UDF175B0000 2UDF175B0000

34,70 $

Unit Price

NUT, SPRING(JA3)

901830607100 901830607100

0,80 $

Unit Price

RIVET

902690701000 902690701000

3,82 $

Unit Price

PANEL ACCESS. COMP

B31F83V02000 B31F83V02000

303,42 $

Unit Price

FENDER, INNER

1HPF15520000 1HPF15520000

12,79 $

Unit Price

SEAL 1

1HPF15750000

1HPF15750100

5,60 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price

FENDER, INNER 2

1HPF15530000 1HPF15530000

36,28 $

Unit Price

BOLT, WITH WASHER

901190615200 901190615200

1,64 $

Unit Price

NUT, SPRING(4ES)

901830605300

901830606900

3,20 $

Unit Price
