FRONT WHEEL

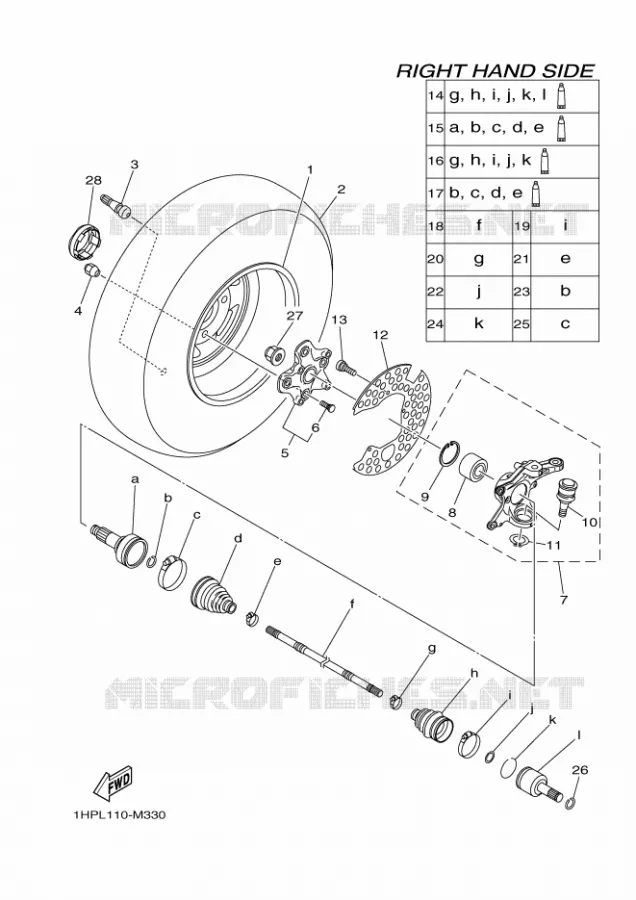

FRONT WHEEL 2 FOR YAMAHA GRIZZLY 2013

FRONT BRAKE CALIPER

Item numbers

WHEEL COMP.

1HPF5180B000 1HPF5180B000

557,83 $

Unit Price

VALVE, RIM

939000081300

939000081200

11,15 $

Unit Price

NUT

901791001600

901791003200

17,12 $

Unit Price

HUB ASSY 2

3B4251111100

B16F510D0300

72,11 $

Unit Price

BOLT, SERRATION

901141001400 901141001400

3,92 $

Unit Price

STEERING, KNUCKLE (R)

1HPF35021000

2BGF35021100

357,82 $

Unit Price

BEARING

933050060200 933050060200

125,54 $

Unit Price

CIRCLIP

990095550000 990095550000

7,74 $

Unit Price

BALL JOINT 2

3B4235790100 3B4235790100

80,27 $

Unit Price

CIRCLIP(4A6)

990093040000 990093040000

10,11 $

Unit Price

RING, WHEEL 1 (LEF

1HPF514A0000

BB5F514A0000

27,22 $

Unit Price

SCREW, BIND(1JK)

989020601000

989800601000

3,94 $

Unit Price

DOUBLE OFF SET JOI

28P2510J0100

28P2510J0200

374,68 $

Unit Price

BALL JOINT SET

28P2510F0100

28P2510F0500

572,17 $

Unit Price

BOOT SET(DOUBLE OF

28P2510H0100

28P2510H0300

58,93 $

Unit Price

BOOT SET (BALL JOI

28P2510G0000

28P2510G0200

58,93 $

Unit Price

SHAFT

28P2518E0000 28P2518E0000

244,88 $

Unit Price

BOOT BAND(DOUBLE OFFSET JOINT)

3B42511H0000 3B42511H0000

16,97 $

Unit Price

BOOT BAND (SMALL)

3B42512G0000 3B42512G0000

13,89 $

Unit Price

BOOT BAND (SMALL)

28P2512G0000 28P2512G0000

16,89 $

Unit Price

SNAP RING

3B42512J0000 3B42512J0000

8,42 $

Unit Price

CIRCLIP

3B42512H0000 3B42512H0000

7,05 $

Unit Price

CIRCLIP

3B4251820000 3B4251820000

7,05 $

Unit Price

BOOT BAND(DOUBLE OFFSET JOINT)

28P2511H0000 28P2511H0000

18,13 $

Unit Price

CIRCLIP(2HR)

934502211900 934502211900

3,58 $

Unit Price

NUT

901792001600 901792001600

18,71 $

Unit Price

WHEEL CAP ASSY.

1RBF530B0000 1RBF530B0000

29,38 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT WHEEL 2 of your Yamaha YFM700FWAD of 2013. Let us know if you have any questions.
