CYLINDER HEAD

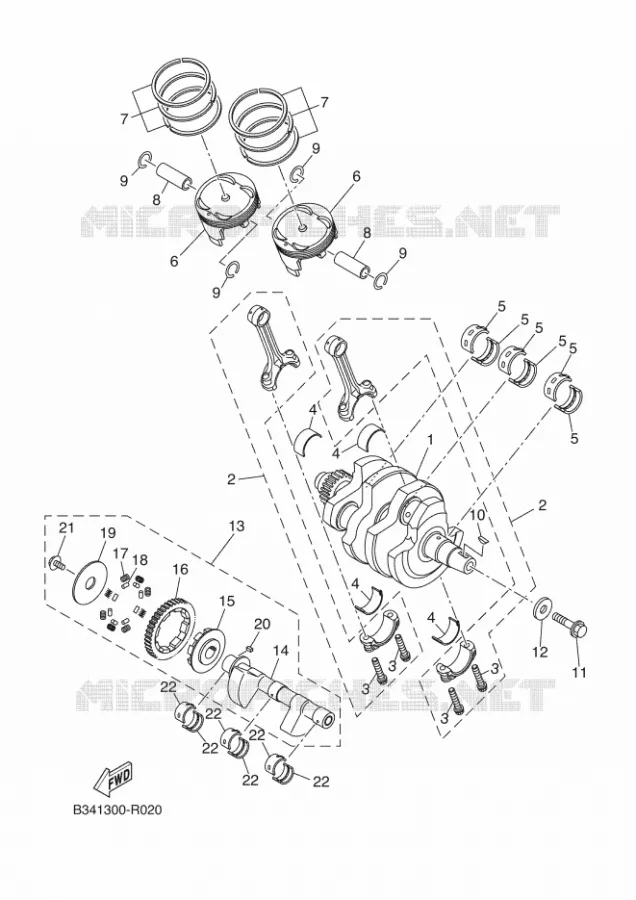

CRANKSHAFT / PISTON FOR YAMAHA XSR 2024

VALVE

Item numbers

CRANKSHAFT ASSY

1WS114000000 1WS114000000

1 061,72 $

Unit Price

CONNECTING ROD ASS

1WS116500000 1WS116500000

233,61 $

Unit Price

BOLT, CONNECTING ROD

1RC116540000 1RC116540000

4,57 $

Unit Price

PLANE BEARING, CONNECTING ROD

1RC116560000 1RC116560000

15,67 $

Unit Price

PLANE BEARING, CONNECTING ROD

1RC116561000 1RC116561000

15,67 $

Unit Price

PLANE BEARING, CONNECTING ROD

1RC116562000 1RC116562000

15,67 $

Unit Price

PLANE BEARING, CONNECTING ROD

1RC116563000 1RC116563000

15,67 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

3GM114160000 3GM114160000

28,06 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

3GM114161000 3GM114161000

28,06 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

3GM114162000 3GM114162000

28,06 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

3GM11416A000 3GM11416A000

28,06 $

Unit Price

PLANE BEARING, CRANKSHAFT 1

3GM11416B000 3GM11416B000

19,31 $

Unit Price

PISTON (STD)

BU3E16310000 BU3E16310000

Not available

PISTON RING SET (STD)

BU3E16030000 BU3E16030000

Not available

PIN, PISTON

BU3E16330000 BU3E16330000

Not available

CIRCLIP (2F1)

934501905200 934501905200

3,85 $

Unit Price

KEY, WOODRUFF (26H)

902800502900 902800502900

10,01 $

Unit Price

BOLT, WASHER BASED

90105126A800 90105126A800

16,38 $

Unit Price

WASHER, PLATE

902011200800 902011200800

14,57 $

Unit Price

BALANCER ASSY

BU3E15000000 BU3E15000000

Not available

. WEIGHT 1

BU3E14540000 BU3E14540000

Not available

. BOSS, BUFFER

BU3E14960000 BU3E14960000

Not available

. GEAR, BALANCE WEIGHT

BU3E15310000 BU3E15310000

Not available

SPRING, COMPRESSION

905012280000 905012280000

1,69 $

Unit Price

PIN, DOWEL

936051009000 936051009000

5,10 $

Unit Price

PLATE, ABSORBER

1WS115330000 1WS115330000

18,55 $

Unit Price

KEY, STRAIGHT (3R4)

902820403600 902820403600

4,32 $

Unit Price

BOLT, WASHER BASED(1TX)

901051044500 901051044500

10,36 $

Unit Price

PLANE BEARING, BALANCE WEIGHT

2S3114130000 2S3114130000

15,08 $

Unit Price

PLANE BEARING, BALANCE WEIGHT

2S3114131000 2S3114131000

15,08 $

Unit Price

PLANE BEARING, BALANCE WEIGHT

2S3114132000 2S3114132000

15,08 $

Unit Price

PLANE BEARING, BALANCE WEIGHT

2S3114133000 2S3114133000

15,08 $

Unit Price

PLANE BEARING, BALANCE WEIGHT

2S3114134000 2S3114134000

15,08 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT / PISTON of your Yamaha XSR 700 LEGACY of 2024. Let us know if you have any questions.
