WATERPUMP / HOSES

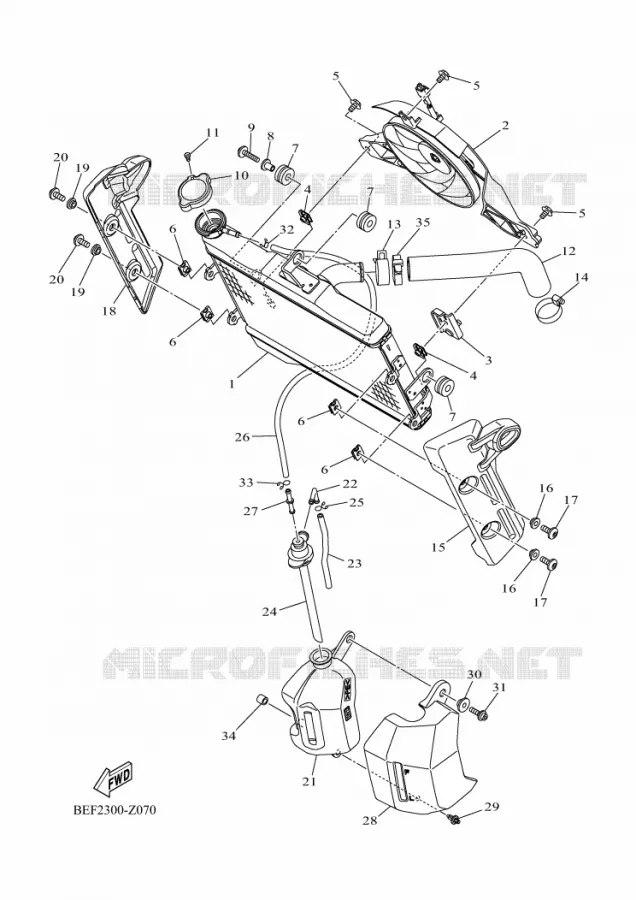

RADIATOR / HOSES FOR YAMAHA XSR 2024

OIL PUMP

Item numbers

RADIATOR COMP

B4T124610000 B4T124610000

331,16 $

Unit Price

BLOWER ASSY

BW3124050000 BW3124050000

286,60 $

Unit Price

BRACKET, HORN

BW3213430000 BW3213430000

29,72 $

Unit Price

NUT 1

1WS126710000 1WS126710000

4,70 $

Unit Price

BOLT, BLOWER HOLDING

2S3126750000 2S3126750000

3,13 $

Unit Price

NUT 1

1WS126710000 1WS126710000

4,70 $

Unit Price

GROMMET (29L)

904801536300 904801536300

9,09 $

Unit Price

COLLAR

903870631100 903870631100

5,83 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110615600 901110615600

3,92 $

Unit Price

CAP, RADIATOR

B67124621000 B67124621000

Not available

BOLT, SOCKET

913170300600 913170300600

0,98 $

Unit Price

HOSE 3

1WS125780000 1WS125780000

25,16 $

Unit Price

CLIP

90467290A000 90467290A000

9,95 $

Unit Price

HOSE CLAMP ASSY

904503500100 904503500100

16,48 $

Unit Price

COVER 3

BEEE246F0000 BEEE246F0000

299,01 $

Unit Price

COLLAR

903870613000 903870613000

8,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110616100

901110615100

2,56 $

Unit Price

COVER 4

BEEE246G0000 BEEE246G0000

299,01 $

Unit Price

COLLAR

903870613000 903870613000

8,25 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110616100

901110615100

2,56 $

Unit Price

TANK, RECOVERY

1WS218710100 1WS218710100

47,12 $

Unit Price

ELBOW

26H218280000 26H218280000

15,55 $

Unit Price

HOSE

904450802000

904450803500

2,18 $

Unit Price

CAP

3P6218750000 3P6218750000

11,97 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,43 $

Unit Price

PIPE 1

1WS218160000 1WS218160000

5,96 $

Unit Price

JOINT

4XY145680000 4XY145680000

2,24 $

Unit Price

CACHE

2SFF172W0000 2SFF172W0000

Not available

RIVET

902690600800 902690600800

2,66 $

Unit Price

COLLAR (838-84757-00)

903870602400 903870602400

11,45 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100616300 901100616300

1,86 $

Unit Price

CLIP (16G)

904670807500

904670802100

7,43 $

Unit Price

CLIP 101235600

904670800300 904670800300

5,61 $

Unit Price

HOSE (L10)

9044511M0800 9044511M0800

3,94 $

Unit Price

CLAMP(6U0)

9046407M4000 9046407M4000

7,38 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR / HOSES of your Yamaha XSR 700 35KW A2 of 2024. Let us know if you have any questions.
