Displacement

Year

Model

Finish line

Parts catalogue

Parts diagram

ELECTRICAL 1

ELECTRICAL 2 FOR YAMAHA TENERE 2022

ELECTRICAL 3

Item numbers

SENSOR, PRESSURE

1WS823800000 1WS823800000

246,51 $

Unit Price

BOLT, SOCKET

913120502000

913170502000

2,59 $

Unit Price

IGNITION COIL ASSY

1WS823100000 1WS823100000

151,75 $

Unit Price

CONTACTEUR DE POINT-MORT

BU3H25400000 BU3H25400000

Not available

O-RING (1S71)

932102180100 932102180100

2,32 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100506700

901100503800

1,67 $

Unit Price

THERMO UNIT

52BH35910000 52BH35910000

70,06 $

Unit Price

GASKET

904301000400 904301000400

3,77 $

Unit Price

OIL PRESSURE SWITCH ASSY

1WS825040100 1WS825040100

97,97 $

Unit Price

LEAD WIRE ASSY

BEH813150000 BEH813150000

21,14 $

Unit Price

PLOT, BORGNE

BU3E53990000 BU3E53990000

Not available

O-RING (22U)

932101556600 932101556600

5,61 $

Unit Price

BOLT, SOCKET

913120601600

913170601600

3,51 $

Unit Price

BAND

B34H55460000 B34H55460000

107,59 $

Unit Price

WIRE, SUB LEAD

BW3H23090000 BW3H23090000

142,17 $

Unit Price

KIT DE IMMOBILISATEUR

BEHW82500100 BEHW82500100

Not available

. BLOC DE CONTROL

BEH8591A0100 BEH8591A0100

Not available

. IMMOBILISATEUR

BEH8255P0000 BEH8255P0000

Not available

SCREW

5SL821130100 5SL821130100

2,52 $

Unit Price

TOUCHE MUETTE

BW3825110900 BW3825110900

Not available

BOLT

901090819500

901090819600

6,37 $

Unit Price

HOLDER, CONNECTOR

BW3H81950100 BW3H81950100

120,47 $

Unit Price

BOLT, WITH WASHER

901190620900 901190620900

1,66 $

Unit Price

COLLAR

903871001B00 903871001B00

3,24 $

Unit Price

COLLAR 27583923000

903870637200 903870637200

2,39 $

Unit Price

CLAMP

904641080000 904641080000

4,32 $

Unit Price

MOLD, FUEL TANK

31A241880100 31A241880100

14,14 $

Unit Price

CLAMP

904641401000 904641401000

2,95 $

Unit Price

CLAMP

904643000900 904643000900

6,02 $

Unit Price

CLAMP(4FM)

904641307300

904641519500

4,93 $

Unit Price

BAND, SWITCH CORD

9046513M2400

437839361100

4,65 $

Unit Price

SENSOR, AIR TEMPERATURE

5YU858860000 5YU858860000

46,82 $

Unit Price

CLAMP(4NK)

904642423000 904642423000

4,01 $

Unit Price

BAND, SWITCH CORD

4KHH39360100 4KHH39360100

7,52 $

Unit Price

TERMINAL COMP.

B568254B0100 B568254B0100

423,18 $

Unit Price

DAMPER, SEAT

2BS247470000 2BS247470000

7,83 $

Unit Price

RELAIS DES CLIGNOTANTS CPLT

3XV833502200 3XV833502200

HORN

1WS833710000 1WS833710000

93,19 $

Unit Price

NUT

901790601800 901790601800

1,86 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

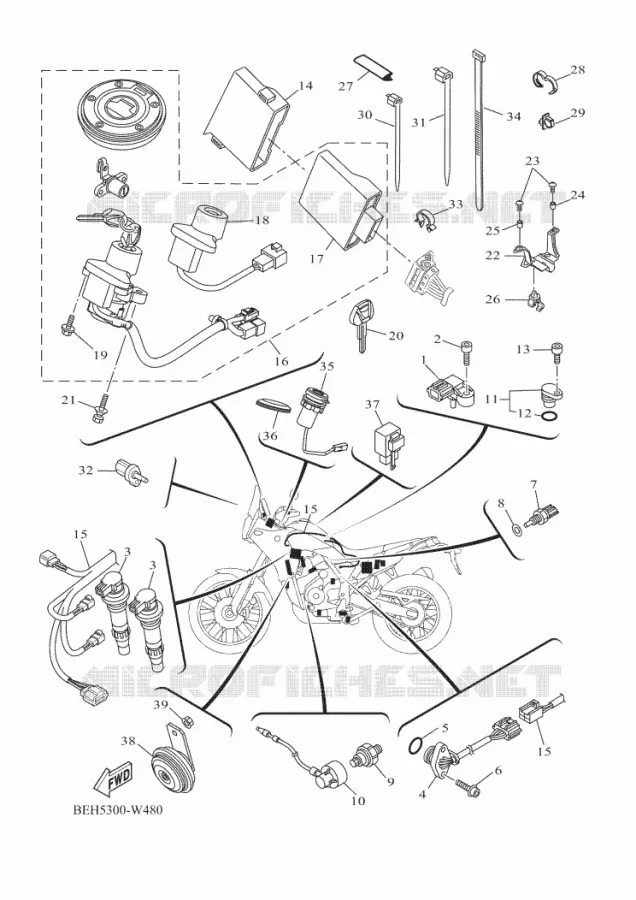

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL 2 of your Yamaha TENERE 700 RALLY EDITION of 2022. Let us know if you have any questions.

Select your Yamaha TENERE model from 2022
