FRONT FORK

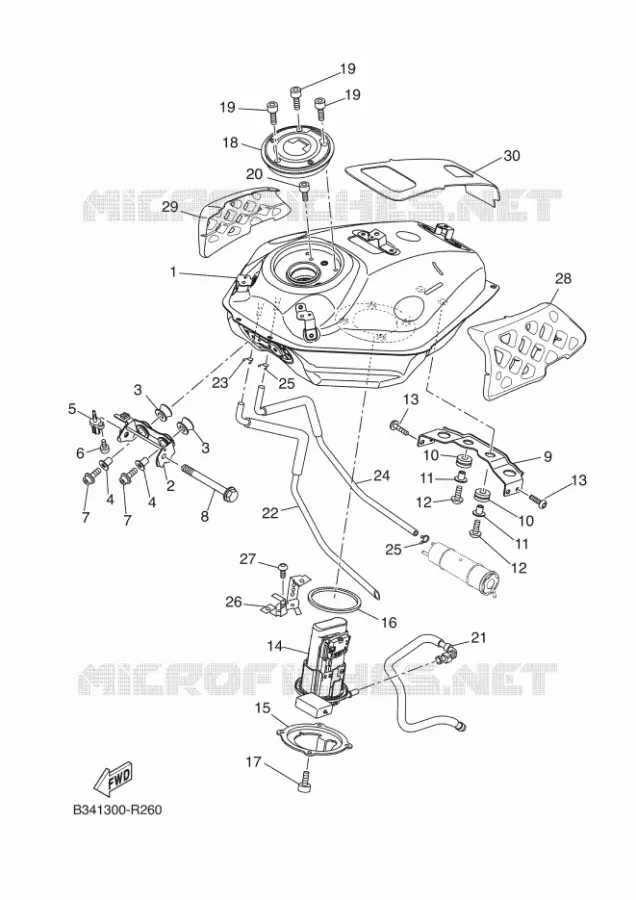

FUEL TANK FOR YAMAHA XSR 2018

FUEL TANK 2

Item numbers

RESERVOIR A ESSENCE

B34241100000 B34241100000

Not available

BRACKET, TANK FITT

1WS2412Y0000 1WS2412Y0000

54,66 $

Unit Price

GROMMET

3D7243390000 3D7243390000

4,58 $

Unit Price

COLLAR

903870613600 903870613600

5,17 $

Unit Price

SENSOR, AIR TEMPERATURE

5YU858860000 5YU858860000

46,82 $

Unit Price

SCREW, PAN HEAD (646)

985020501200

985800501200

3,17 $

Unit Price

BOLT, HEXAGON SOCKET HEAD

901100617200 901100617200

2,57 $

Unit Price

BOLT, FLANGE

958170810000 958170810000

14,47 $

Unit Price

SUPPORT, MONTAGE DE RESERVOIR

B342413Y0000 B342413Y0000

Not available

GROMMET

904801600300 904801600300

5,60 $

Unit Price

COLLAR

903870628700 903870628700

4,68 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110608400 901110608400

4,67 $

Unit Price

BOLT, BUTTON HEAD

920120601200 920120601200

1,68 $

Unit Price

FUEL PUMP COMP.

1WS139070000

1WS139071000

643,50 $

Unit Price

BRACKET, FUEL PUMP

1WS244910000

1WS244910100

23,45 $

Unit Price

O-RING

1RC244860000 1RC244860000

32,04 $

Unit Price

BOLT

913120501000 913120501000

1,04 $

Unit Price

CAP ASSY

1WS246020000 1WS246020000

166,58 $

Unit Price

BOLT, HEXAGON SOCKET HEAD(1FM)

901100511200 901100511200

5,09 $

Unit Price

BOLT, SOCKET

913170501000 913170501000

2,62 $

Unit Price

PIPE, FUEL 1

1WS139710000

1WS139710100

165,56 $

Unit Price

PIPE, OVERFLOW

2RC243180000 2RC243180000

98,33 $

Unit Price

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

DURITE 10

B34243210000 B34243210000

Not available

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

BRACKET, CANISTOR

2RC2419F0000 2RC2419F0000

29,61 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110611900 901110611900

4,23 $

Unit Price

DAMPER PLATE 1

B34F414H0000 B34F414H0000

241,20 $

Unit Price

DAMPER PLATE 2

B34F414J0000 B34F414J0000

241,20 $

Unit Price

DAMPER PLATE 3

B34F414K0000 B34F414K0000

91,14 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
