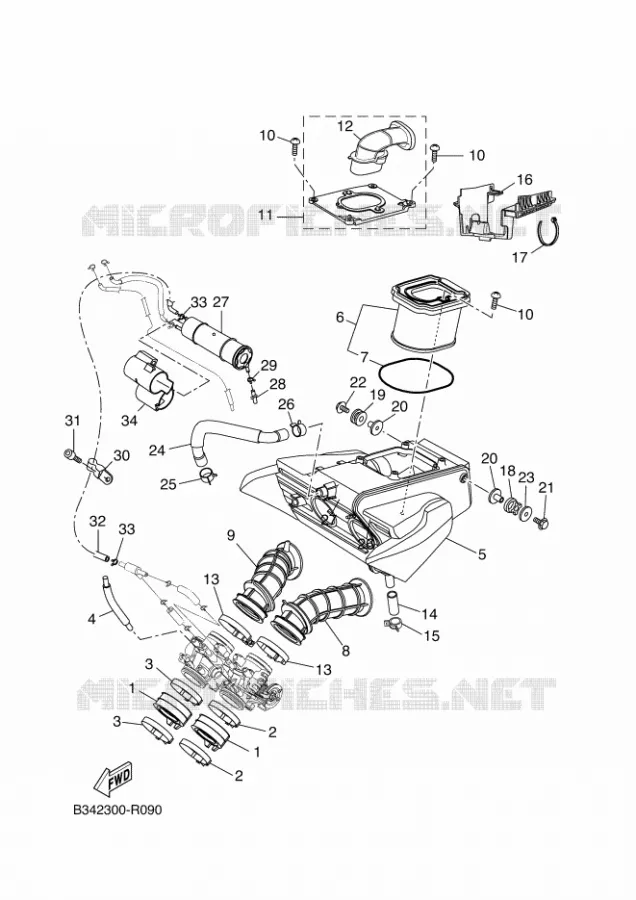

INTAKE FOR YAMAHA XSR 2016

INTAKE 2

Item numbers

JOINT, INTAKE 1

1WS136350000 1WS136350000

19,15 $

Unit Price

HOSE CLAMP ASSY

904505601100 904505601100

18,53 $

Unit Price

HOSE CLAMP ASSY

904505601200 904505601200

18,89 $

Unit Price

HOSE, VACUUM SENSI

1WS135420000 1WS135420000

8,00 $

Unit Price

AIR CLEANER CASE A

1WS144010000 1WS144010000

155,67 $

Unit Price

ELEMENT ASSY, AIR

1WS144500000 1WS144500000

39,84 $

Unit Price

SEAL

1WS144520000 1WS144520000

13,28 $

Unit Price

EVENTAILLE D'AIR

1WS144692000 1WS144692000

Not available

AILLE 2

1WS1446C2000 1WS1446C2000

Not available

SCREW, ROUND TAPPING

901600501300 901600501300

1,01 $

Unit Price

CONDUIT

1WS144304000 1WS144304000

Not available

DUCT

1WS144371000

1WS144371100

37,97 $

Unit Price

HOSE CLAMP ASSY

904505601100 904505601100

18,53 $

Unit Price

PIPE, DRAIN

1WS1443E0000 1WS1443E0000

6,61 $

Unit Price

CLIP(3YX)

904671308300

904671313300

5,22 $

Unit Price

SEAL

B34E44760000 B34E44760000

100,28 $

Unit Price

BAND, SWITCH CORD

4KHH39360100 4KHH39360100

7,52 $

Unit Price

GROMMET

904801500100 904801500100

9,23 $

Unit Price

GROMMET

904801501400 904801501400

4,45 $

Unit Price

COLLAR

903870630000 903870630000

5,74 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110615600 901110615600

3,92 $

Unit Price

SCREW

901490603900 901490603900

2,36 $

Unit Price

WASHER, PLATE(1JK)

90201064K600 90201064K600

3,10 $

Unit Price

PIPE, BREATHER 1

1WS111660000 1WS111660000

30,60 $

Unit Price

CLIP(3TB)

904671712800 904671712800

3,73 $

Unit Price

CLIP

90467160A200 90467160A200

4,26 $

Unit Price

BANDE, RASERVOIR A ESSENCE

2RC241700000 2RC241700000

Not available

DURITE 13

2RC243240000 2RC243240000

Not available

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

CLAMP 1

1WS241350000 1WS241350000

9,88 $

Unit Price

BOLT, BUTTON HEAD

920170601000 920170601000

4,00 $

Unit Price

PIPE 12

2RC243230000 2RC243230000

71,30 $

Unit Price

CLIP

90467090A200 90467090A200

1,47 $

Unit Price

DAMPER, LOCATING 2

2RC241820000 2RC241820000

168,53 $

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
