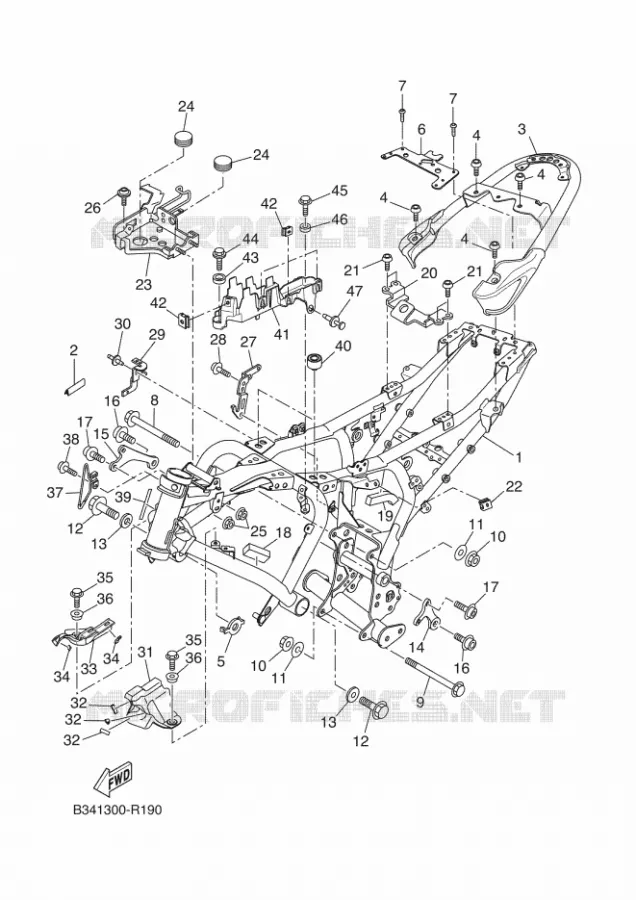

Parts diagram

GEAR SHIFT SHAFT / LEVER

FRAME FOR YAMAHA XSR 2016

FENDER

Item numbers

CADRE COMP.

B34F11101000 B34F11101000

Not available

MOULURE

1SDF28690000 1SDF28690000

Not available

REAR FRAME COMP

B34F11900000 B34F11900000

917,07 $

Unit Price

BOLT, HEXAGON SOCK

901100811100 901100811100

3,28 $

Unit Price

PLATE 1

1WS2191B0000 1WS2191B0000

22,26 $

Unit Price

BRACKET, SEAT

B34F13490000

B34F13491000

103,44 $

Unit Price

BOLT, BUTTON HEAD

920170601200 920170601200

3,90 $

Unit Price

BOLT, FLANGE

901051021900 901051021900

9,61 $

Unit Price

BOLT, FLANGE

901051034900 901051034900

14,76 $

Unit Price

NUT

901791002400 901791002400

2,55 $

Unit Price

WASHER, PLATE

902011003500 902011003500

3,16 $

Unit Price

BOLT, FLANGE

901051209200 901051209200

10,83 $

Unit Price

WASHER, PLATE

902011302000 902011302000

5,00 $

Unit Price

STAY, ENGINE 1

1WS213150000 1WS213150000

67,17 $

Unit Price

STAY, ENGINE 2

1WS213160000 1WS213160000

67,96 $

Unit Price

BOLT, HEXAGON SOCK

901101004400 901101004400

7,70 $

Unit Price

BOLT, HEXAGON SOCK

901100811100 901100811100

3,28 $

Unit Price

DAMPER, PLATE

905202000400 905202000400

1,90 $

Unit Price

DAMPER, PLATE

905202000300 905202000300

2,79 $

Unit Price

BRACKET SEAT FITTING

B34F19460000 B34F19460000

54,98 $

Unit Price

BOLT, BUTTON HEAD

920170601200 920170601200

3,90 $

Unit Price

NUT SPRING

9018305X0400 9018305X0400

14,77 $

Unit Price

BRACKET

B34211580000 B34211580000

158,35 $

Unit Price

GROMMET (2A6)

904803016700 904803016700

5,99 $

Unit Price

NUT, FLANGE(7NB)

957020650000

957800650000

3,18 $

Unit Price

BOLT, HEX. SOCKET BUTTON

901110612200 901110612200

5,58 $

Unit Price

BRACKET 8

1WS2161J0000 1WS2161J0000

15,52 $

Unit Price

BOLT, BUTTON HEAD

920170601000 920170601000

4,00 $

Unit Price

BRACKET 2

B342175U0000 B342175U0000

20,51 $

Unit Price

RIVET(4PH)

902690707700 902690707700

4,03 $

Unit Price

COVER 4

1WS2117R0000 1WS2117R0000

13,45 $

Unit Price

PLATE, FOOTREST

1HX274150000 1HX274150000

1,71 $

Unit Price

COVER 5

1WS2117T0000

1WS2117T0100

9,95 $

Unit Price

PLATE, FOOTREST

1HX274150000 1HX274150000

1,71 $

Unit Price

BOLT, FLANGE

958070601200

958170601200

1,39 $

Unit Price

C0LLAR

90387062M900 90387062M900

9,09 $

Unit Price

GUIDE, CABLE

1XB212880000 1XB212880000

29,93 $

Unit Price

BOLT, FLANGE(4MY)

950270601000 950270601000

2,10 $

Unit Price

PROTECTOR, FUEL TANK

3HA241410000 3HA241410000

15,61 $

Unit Price

BUTEE, BEQUILLE CENTRALE

B34F71140000 B34F71140000

Not available

HOLDER RELAY

B34H19520000 B34H19520000

137,66 $

Unit Price

NUT SPRING

9018305X0400 9018305X0400

14,77 $

Unit Price

COLLAR

903871001B00 903871001B00

3,24 $

Unit Price

BOLT, WITH WASHER

901190620900 901190620900

1,66 $

Unit Price

BOLT, FLANGE

958220601200

958170601200

1,39 $

Unit Price

COLLAR 27583923000

903870637200 903870637200

2,39 $

Unit Price

RIVET

902690600200 902690600200

4,42 $

Unit Price
