EXHAUST

CRANKCASE FOR YAMAHA XSR 2016

COVER - ENGINE 1

Item numbers

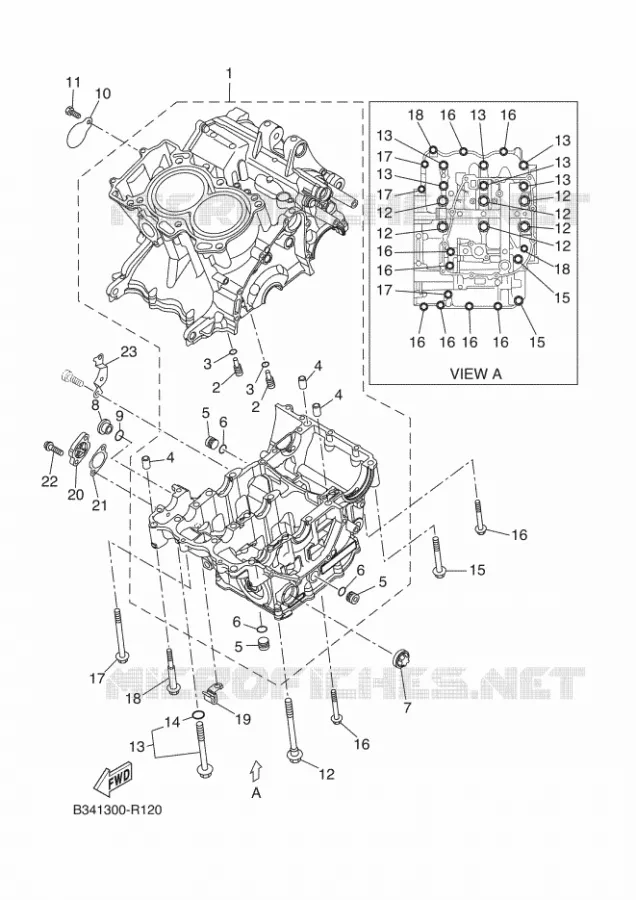

CRANKCASE Yamaha MOTO 690 2016 XSR XSR700
1
2
2
3
3
4
4
4
5
5
5
6
6
6
7
8
9
10
11
12
12
12
12
12
12
12
13
13
13
13
13
13
13
14
15
15
15
16
16
16
16
16
16
16
16
16
16
17
17
17
17
18
18
18
19
20
21
22
23
1
CRANKCASE ASSY

1WS151000900  

1WS151000900
Not available
2
NOZZLE 3

5EB151550000   5EB151550000

5EB151550000

Unit Price

3
O-RING (210)

932100409200   932100409200

932100409200

Unit Price

4
PIN, DOWEL

995301001400   995301001400

995301001400

Unit Price

5
PLUG

903381626200   903381626200

903381626200

Unit Price

6
O-RING(3LD)

932101279000   932101279000

932101279000

Unit Price

7
GAUGE, LEVEL

2H7153610000   2H7153610000

2H7153610000

Unit Price

8
PLUG

36Y151890000  

36Y151890100
 36Y151890000

Unit Price

9
O-RING(1L9)

932101632500   932101632500

932101632500

Unit Price

10
PLUG

1WS151890000   1WS151890000

1WS151890000

Unit Price

11
BOLT

901010604300  

970120601400
 901010604300

Unit Price

12
BOLT, WITH WASHER

901190901400   901190901400

901190901400

Unit Price

13
BOLT, CRANKCASE JO

1WS151560000   1WS151560000

1WS151560000

Unit Price

14
O-RING (11M)

932100754000   932100754000

932100754000

Unit Price

15
BOLT, WASHER BASED(4JG)

958120806500  

901050872100
 958120806500

Unit Price

16
BOLT, FLANGE

958120604000  

958170604000
 958120604000

Unit Price

17
BOLT, FLANGE

958120606000   958120606000

958120606000

Unit Price

18
BOLT

901090610000   901090610000

901090610000

Unit Price

19
CLAMP

904621006400   904621006400

904621006400

Unit Price

20
COVER, OIL PUMP

1WS154160000   1WS154160000

1WS154160000

Unit Price

21
GASKET, OIL PUMP C

1WS154560000  

1WS154560100
 1WS154560000

Unit Price

22
BOLT, HEXAGON SOCKET HEAD

901100639500  

901100639600
 901100639500

Unit Price

23
HOLDER

1WS151280000   1WS151280000

1WS151280000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Yamaha. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Yamaha, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
